C-DMM-2005_INST_2-16

Notes:

1. The C-DMM-2000 series Dash Monitor Mount brackets are specifically designed to work with

Havis, Inc, model # TSD-101 Touch Screen Display.

2. The display mount bracket includes a VESA 75 hole pattern that can also be used for some light

weight tablet docking station applications. Acceptable positioning must be determined by end user.

3. The C-DMM-2005 will work with all Havis, Inc. consoles made for the Transit van .

4. The C-DMM-2005 Does NOT work with the 58V, 58W, 58X, 58Y, or 584 radio package.

TOOLS REQUIRED: (some tools not needed for all vehicle installations)

• Socket set - metric & standard • Drill & drill bits • Tape measure

• Phillips screwdriver • Trim removal tools • Pencil / Marker

MOUNT BRACKET PARTS and HARDWARE:

Installation parts with * come loose in hardware kit bag. Other parts are preassembled

QTY: DESCRIPTION: PART #:

1 Main dash mount bracket MT-0294-SA

1 Main dash mount base MT-0295-SM *

1 Pivot / display mount bracket MT-0269-SA *

1 Tilt swivel hinge GSM22005

6 M5-18mm Thread forming screw GSM33778 *

1 M8 hex nut SS GSM30113

6 8-32 x 5/8” Machine screw GSM34117 *

1 M8 lock washer SS GSM31217

1 8-32 x .312” Phillips truss head machine screw GSM34077 *

1 Vinyl cap ( .50” high x .312 - .375 id) GSM41127

2 Pull through bumper (3mm head) GSM21109

2 Push in bumper (10mm head) GSM21108

1 Stop bracket MT-0291-SM

2 M5 x 10mm Thread forming screw GSM33774

INSTALL INSTRUCTIONS

C-DMM-2005 Dash Monitor Mount

2015-2017 Ford Transit Van

with Radio code 58U or 58T

C-DMM-2005_INST_2-16

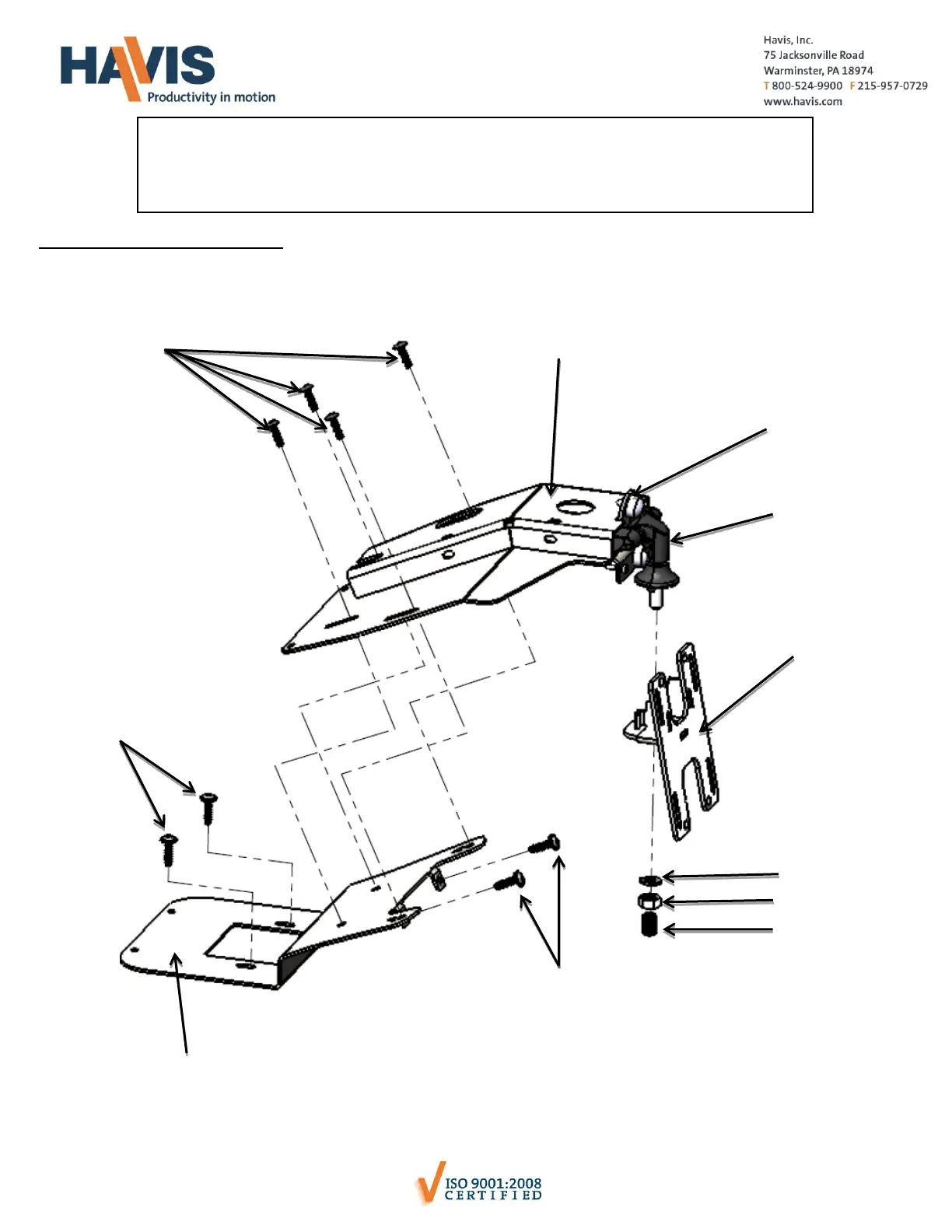

C-DMM-2005 assembly

ALWAYS!

• Read all instructions before installing any Havis, Inc products.

• Use hardware provided with install kit

GSM30113

GSM41127

GSM22005

MT-0269-SA *

GSM31217

MT-0294-SA

MT-0295-SM*

GSM33778 *

GSM34117 *

GSM33778 *

MT-0291-SM-A with

GSM21108
