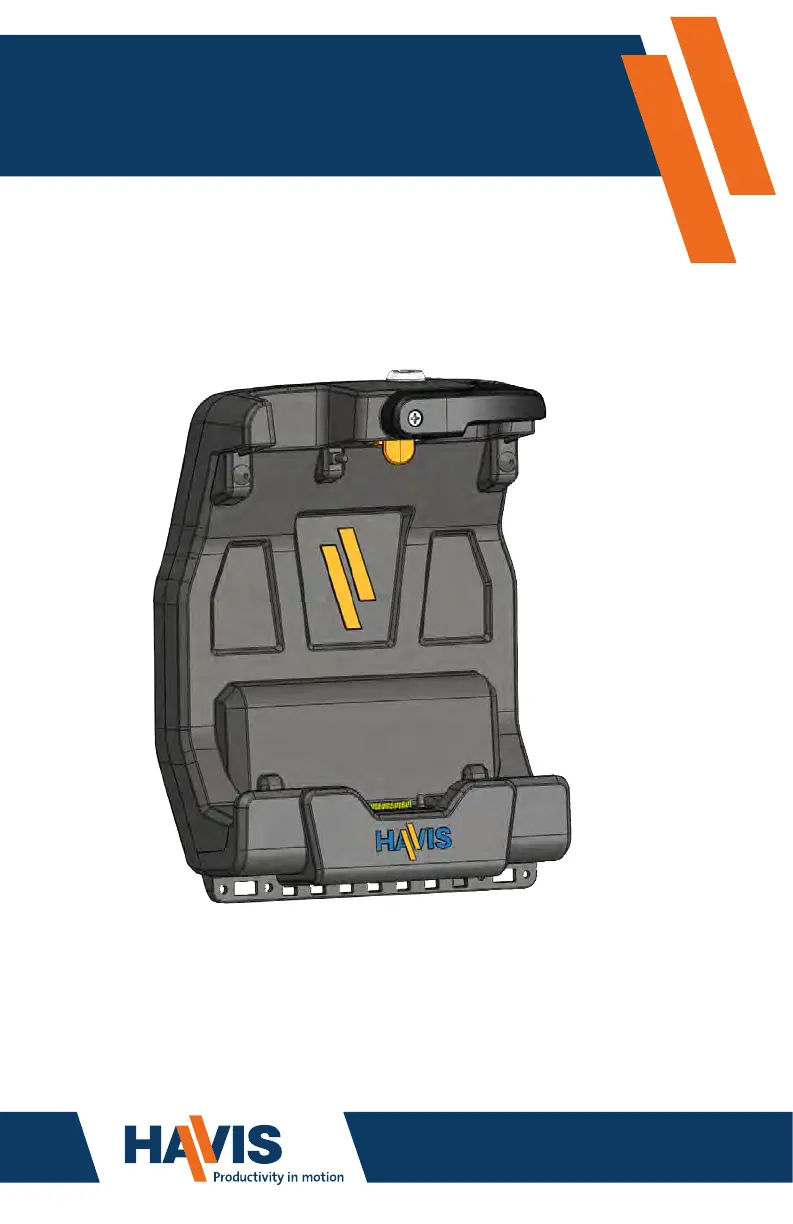

Owner’s Manual

Havis Docking Station

For Getac F110 Rugged Tablet

DS-GTC-210-SERIES_OMN_8-17

www.havis.com

1-800-524-9900

DS-GTC-211

DS-GTC-211-3

DS-GTC-212

DS-GTC-212-3

DS-GTC-213

DS-GTC-213-3

DS-GTC-210 Series

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

www.havis.com 1-800-524-9900

DS-DA-311

USB Extension Cable

Allows for more convienent access for up to two (2) of the

available USB 2.0 ports. Can be mounted to the right, left,

or both sides on DS-GTC-200 Series Docking Stations.

Related Products

Havis oﬀers a wide variety of accessory products specically for use

with the DS-GTC-210 Series Docking Station. For more information or

to order, please visit www.havis.com.

LPS-116

95W Power Supply

External in-vehicle power supply and cable for Getac

F110 Rugged Tablet with cigarette lighter adaptor.

DS-DA-218

Desktop Stand for Tablet Docking Stations

Durable stand for mounting tablet Docking Stations

for use in the home or oﬃce.

DS-DA-102

Night Eyes II

In-vehicle night time viewing from six long lasting,

soft true, red LED lights on a exible steel gooseneck.

DS-DA-501

Replacement Keys

Set of two (2) replacement keys for DS-GTC-210

Series Docking Stations.

www.havis.com • 1-800-524-9900

DS-GTC-211

DS-GTC-211-3

DS-GTC-212

DS-GTC-212-3

DS-GTC-213

DS-GTC-213-3

Before Beginning

(Original Instructions)

2 11

• NEVER STOW OR MOUNT THE DOCKING STATION DIRECTLY IN A VEHICLE

AIRBAG DEPLOYMENT ZONE.

• DO NOT USE COMPUTER WHILE DRIVING.

Havis is pleased to provide this Owner’s Manual to aid in the proper

installation and use of the DS-GTC-210 Series Docking Station for

the Getac F110 Rugged Tablet.

For questions regarding the set-up of your DS-GTC-210 Series Docking Station,

please contact Havis at 1-800-524-9900 or visit www.havis.com for additional

product support and information.

This Owner’s Manual applies to the following Part Numbers:

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY

(DS-GTC-212, DS-GTC-212-3) REFER TO THE SUPPLIED LIND POWER SUPPLY REFERENCE GUIDE.

• WHEN TABLET IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN

0°C to 50°C (32°F to 122°F).

PLEASE REFER TO GETAC F110 OWNER’S MANUAL FOR MORE INFORMATION.

Optional Accessories

DS-DA-311 - Remote USB Extension Cable

(For further Installation Instructions, refer to the Instructions included with DS-DA-311)

1) Determine if USB will exit the left or right side of Docking Station.

2) Remove the Screws from USB Cable.

3) Align the female end of the USB Cable with mounting surface hole pattern.

Insert Screws and Lock Washers and tighten Screws.

CAUTION: DO NOT OVERTIGHTEN SCREWS

4) Plug male end of USB Cable into USB Port.

5) Strain Relief cable as needed.

6) If the connected peripheral has a cable requiring strain relief, use

Int. Zip Tie (Hardware Kit Item #1) by snapping into hole just below port.

7) Continue on with Installation on Page 6.

ScrewsLock WashersUSB 2.0 Panel Mount Extension Cable Mounting SurfaceUSB Port

Male End Female End/

Panel Mount

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.

• DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE,

STEAM, DUST, ETC. ARE PRESENT

• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR

UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES

CAN CAUSE PERMANENT DAMAGE.

• FOR THE DS-GTC-211, DS-GTC-211-3, DS-GTC-212 & DS-GTC-212-3 DOCKING STATIONS:

DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires

a certied, automotive grade, Getac approved 95W power source rated for a

continuous, regulated 19VDC output (Havis Part Number LPS-116 or equivalent).

Failure to comply with this requirement will cause product damage that is NOT

repairable and is NOT covered under warranty.

• FOR THE DS-GTC-213 & DS-GTC-213-3 DOCKING STATION:

DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac F110 tablet

requires a certied, Getac approved power source rated for a continuous, regulated

19VDC output. Getac recommends using the power adapter included with the tablet;

failure to comply with this requirement will cause product damage that is NOT repairable

and is NOT covered under warranty.
