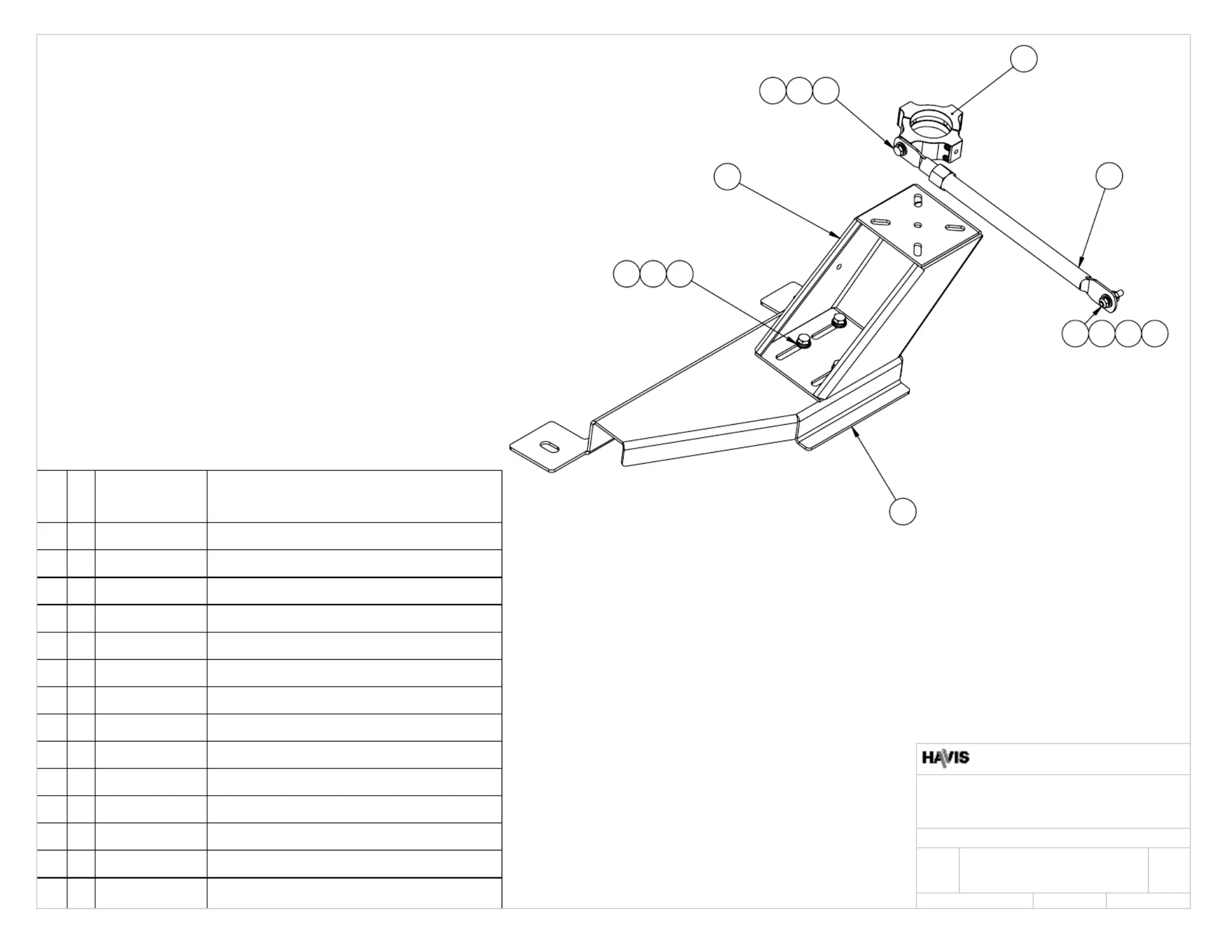

INSTALLATION INSTRUCTIONS

REMOVE PASSENGER SIDE FRONT SEAT BOLTS.

1.

SLIDE BASE PLATE IN BETWEEN FLOOR AND

2.

SEAT BRACKETS.

REINSTALL OEM SEAT BOLTS AND TIGHTEN TO

3.

OEM TORQUE SPECIFICATION.

ATTACH LOWER OFFSET TO BASEPLATE WITH

4.

5/16" BOLTS, LOCK WASHERS AND FLAT

WASHERS ANGLE TOWARDS CENTER OF

VEHICLE.

INSTALL SPIDER COLLAR ON THE HDM POLE

5.

(POLE NOT SHOWN)AS A SNUG FIT.

FIX HDM POLE ONTO THE BASE BRACKET

6.

USING HARDWARE FROM C-HK-102

HARDWARE KIT.

INSTALL SUPPORT ARM TO COLLAR AS SHOWN

7.

USING 1/4-20 HARDWARE SUPPLIED. ATTACH

UNDER DASH WITH "L" BRACKETS SUPPLIED.

FOLLOW GENERAL INSTRUCTIONS FOR POLE

8.

AND UPPER MOUNT PARTS.

ITEM

NO.

QTY.

PART NUMBER

DESCRIPTION

1 2

10-002267

BRACKET, LATCH, UNIVERSAL MOUNTING

2 1

10-002541

BRACKET, MOUNT, 45 DEG. 5" LOWER OFFSET BASE

W/SLOTS

3 1

10-002624

EXTRUSION SPIDER, 2PC, COLLAR

4 1

10-006430

BRACKET, MOUNT, HDM BASE, FORD VAN TRANSIT

5 1

GSM01260

ASSY SUPPORT ARM 12.5-19"

6 4

GSM31006

WASHER, 5/16" FLAT, SAE ZP

7 4

GSM31027

WASHER, 5/16" LOCK, ZP

8 4

GSM33011

SCREW, 5/16-18 X 3/4"

9 1

GSM33000

SCREW 1/4-20 X 1/2 HHCS, BLK, ZP, GRD 5

10 4

GSM33001

SCREW 1/4-20 x 3/4" HHCS ZP

11 4

GSM31026

WASHER 1/4 LOCK ZP

12 5

GSM31005

WASHER, 1/4 FLAT ZP, BLACK

13 4

GSM30005

NUT 1/4-20 HEX BLK, ZINC, GRD 5

14 4

GSM34214

SHCS, STAINLESS 10-24 X 1-1/4" LG

75 JACKSONVILLE RD,

WARMINSTER, PA. 18974

1-800-524-9900

SIZE

SCALE: 1:8

SHEET 1 OF 1

DO NOT SCALE DRAWING

WEIGHT (LB): 11.74

TITLE:

DWG. NO.

C-HDM-183-INST

REV

A

12-14

HAVIS, INC.

FORD TRANSIT HDM BASE ASSEMBLY
