Side 1/4

ChargeGuard®

CG-X

Power Supply

LPS-100/200 Series

Support Arm

C-HDM-401

Docking Station

(UT-X shown)

Motion Device

C-MD-202

Top Oﬀset Platform

C-HDM-300 Series (C-HDM-303 shown)

Adaptor Plate

C-HDM-301 (included with Top Oﬀset Platform)

Swing Arm with Motion Device

C-MD-102

Pole Mount

C-HDM-200 Series (C-HDM-202 shown)

HDM Base & Oﬀset Bracket

C-HDM-100 Series (C-HDM-118 shown)

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

Complete assembly in vehicle (2010 Ford Focus)

Required tools to complete installation.

• Large Metric Socket Set (1/2” drive)

• Small Metric and US Standard Socket Set (1/4” drive)

• 7/8” Wrench

• 1/2” Wrench

• 7/16” Wrench

• US Standard Allen Wrench Set

• Phillips head Screwdriver

For installation of Havis products, ALWAYS…

• Read all instructions before installing any Havis, Inc. Products.

• Check for obstructions (wire, brake lines, fuel tank, etc.)

• Use hardware provided with install kit

Required parts to complete assembly Optional parts for assembly

Oﬀset Bracket

Pole

Shaft Collar

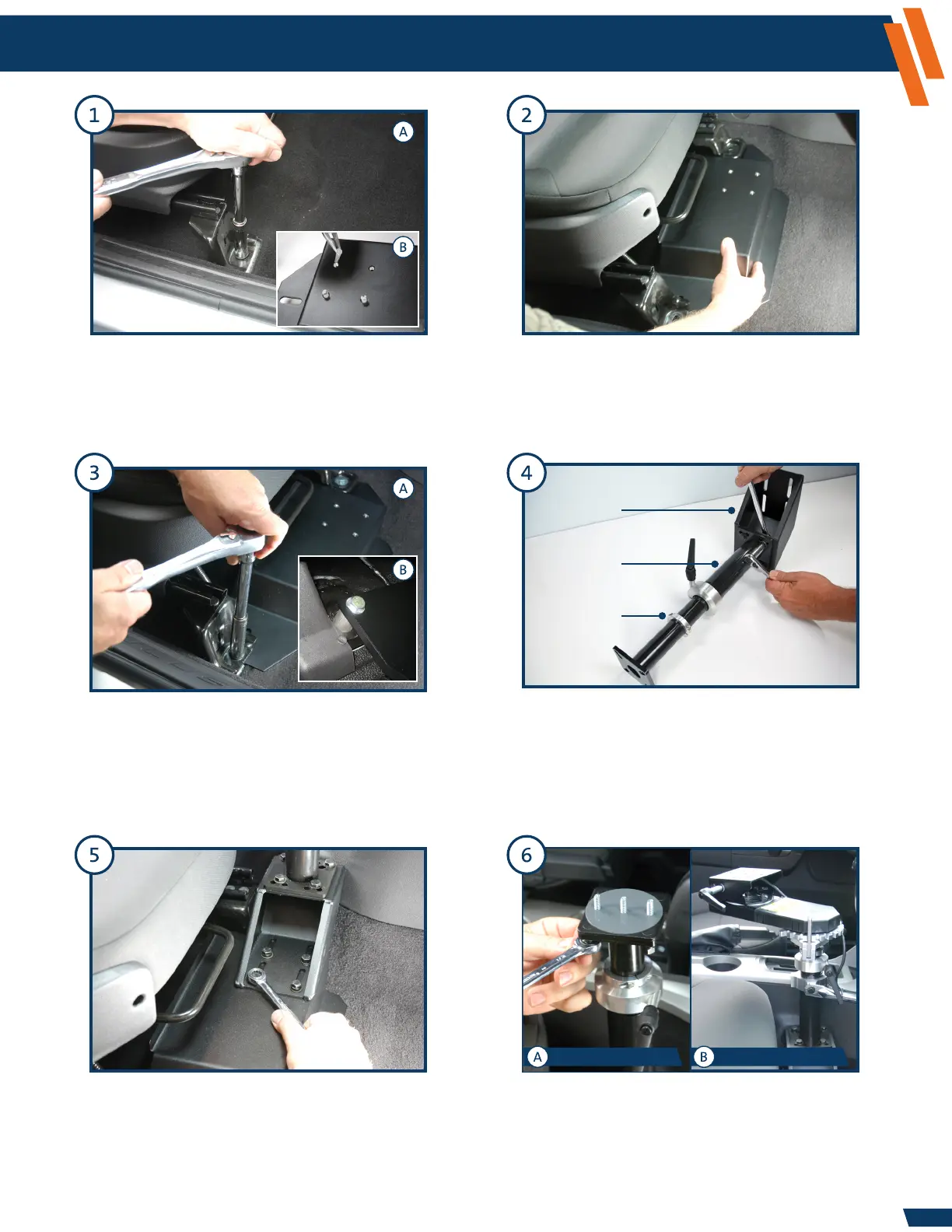

A) Remove the plastic caps that cover the seat bolts.

Remove the OEM seat bolts, seat nuts and seat studs,

making sure to keep the seat bolts for HDM Base

installation (Step 3).

B) Remove all rubber thread protectors from the

mounting holes on the HDM Base.

On the workbench, assemble the Oset Bracket and

Pole using supplied 5/16” x 1” hex bolts, lock washers,

and nuts (x4). Make sure all hardware is fully tightened.

Attach the shaft collar anywhere on the inner pole,

making sure to leave the shaft collar loose in order to

adjust Pole height once installed in vehicle (Step 12).

Lift the seat to place the HDM Base between the

seat brackets and the oor.

NOTE: Loosening rear seat bolts may be required

for ease of installation.

Attach the assembled Oﬀset Bracket and Pole to the HDM

Base inside the vehicle, using supplied 5/16” x 3/4” hex

bolts, lock washers, and at washers. Make sure to adjust

Oﬀset Bracket to desired position before all hardware

is fully tightened.

NOTE: If your application needs to be closer to center of

vehicle, see optional C-HMD-409 Oﬀset Plate.

Align the HDM Base mounting holes to seat bolt locations

and loosely attach the seat bolts. Use caution to avoid

stripping the threads. Fully tighten the bolts once HDM

Base is properly in place.

NOTE: Some HDM Bases mount under the vehicle seat

bracket and reuse OEM seat bolts (A), while other

HDM Bases mount over the top of vehicle seat

bracket and use provided spacers and bolts (B).

A) Align the Adaptor Plate mounting studs to the top of

the inner pole, then attach using the supplied 5/16” lock

washers, at washers, and nuts. Place the large plastic

washer on top of Adaptor Plate.

B) Align Swing Arm with Motion Device mounting holes

to the top of the inner pole, then attach using 1/4” lock

washers, at washers, and bolts.

NOTE: Make sure all hardware is fully tightened.

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

2010 Ford Focus used for instructions

C-HDM-301 C-MD-102

Produkt Specifikationer

Mærke:	Havis
Kategori:	Bilsæt
Model:	PKG-PSM-127
Produktfarve:	Sort
Kompatible produkter:	2002-2012 Jeep Liberty
