Side 1/4
ChargeGuard®
CG-X
Power Supply
LPS-100/200 Series
Support Arm
C-HDM-401
Docking Station
(UT-X shown)
Motion Device
C-MD-202
Top Offset Platform
C-HDM-300 Series (C-HDM-303 shown)
Adaptor Plate
C-HDM-301 (included with Top Offset Platform)
Swing Arm with Motion Device
C-MD-102
Pole Mount
C-HDM-200 Series (C-HDM-202 shown)
HDM Base & Offset Bracket
C-HDM-100 Series (C-HDM-118 shown)
Havis Heavy Duty Passenger Side Mounts
General Installation Instructions
Complete assembly in vehicle (2010 Ford Focus)
Required tools to complete installation.
• Large Metric Socket Set (1/2” drive)
• Small Metric and US Standard Socket Set (1/4” drive)
• 7/8” Wrench
• 1/2” Wrench
• 7/16” Wrench
• US Standard Allen Wrench Set
• Phillips head Screwdriver
For installation of Havis products, ALWAYS…
• Read all instructions before installing any Havis, Inc. Products.
• Check for obstructions (wire, brake lines, fuel tank, etc.)
• Use hardware provided with install kit
Required parts to complete assembly Optional parts for assembly
OR
Offset Bracket
Pole
Shaft Collar
2

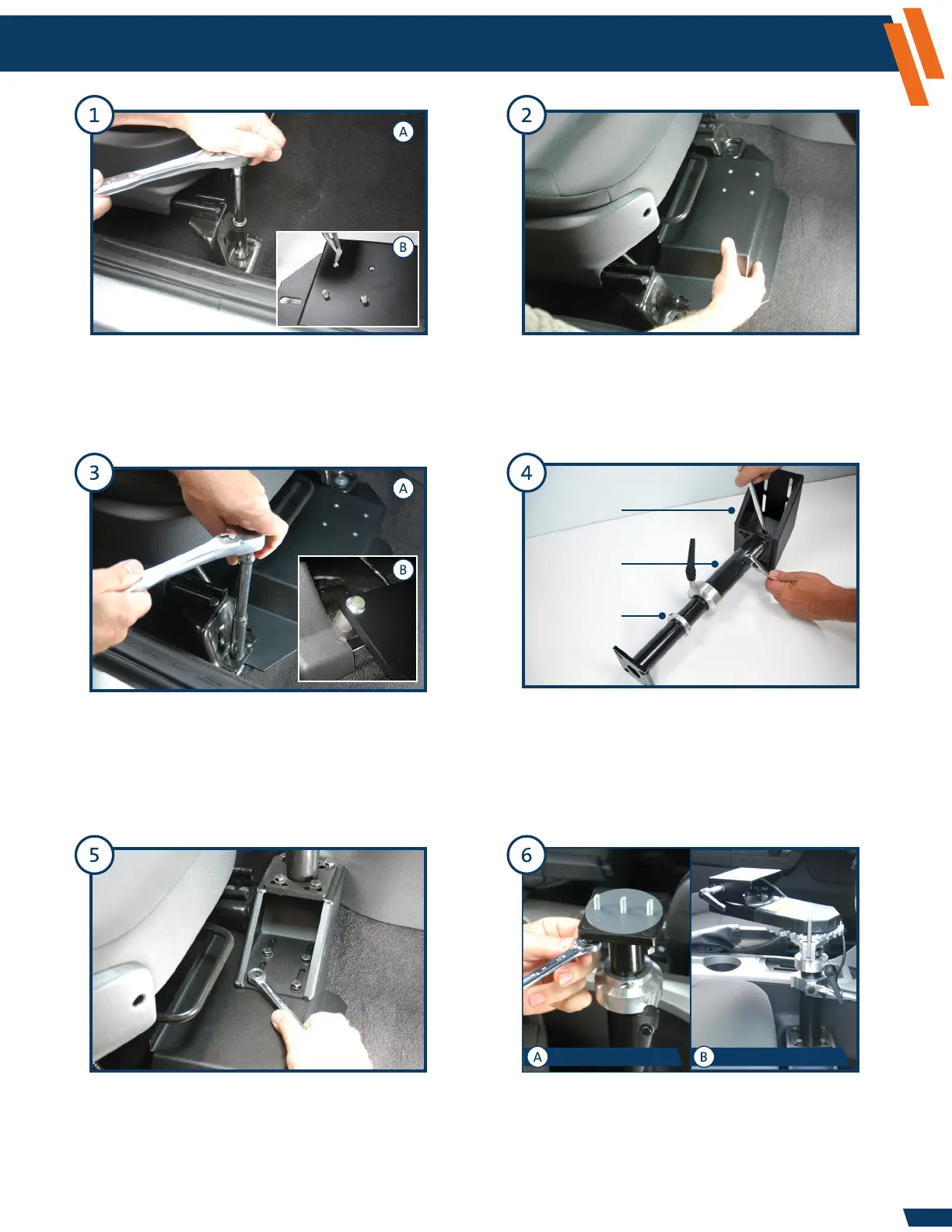

A) Remove the plastic caps that cover the seat bolts.
Remove the OEM seat bolts, seat nuts and seat studs,
making sure to keep the seat bolts for HDM Base
installation (Step 3).
B) Remove all rubber thread protectors from the
mounting holes on the HDM Base.
On the workbench, assemble the Oset Bracket and
Pole using supplied 5/16” x 1” hex bolts, lock washers,
and nuts (x4). Make sure all hardware is fully tightened.
Attach the shaft collar anywhere on the inner pole,
making sure to leave the shaft collar loose in order to
adjust Pole height once installed in vehicle (Step 12).
Lift the seat to place the HDM Base between the
seat brackets and the oor.
NOTE: Loosening rear seat bolts may be required
for ease of installation.
Attach the assembled Offset Bracket and Pole to the HDM
Base inside the vehicle, using supplied 5/16” x 3/4” hex
bolts, lock washers, and at washers. Make sure to adjust
Offset Bracket to desired position before all hardware
is fully tightened.
NOTE: If your application needs to be closer to center of
vehicle, see optional C-HMD-409 Offset Plate.
Align the HDM Base mounting holes to seat bolt locations
and loosely attach the seat bolts. Use caution to avoid
stripping the threads. Fully tighten the bolts once HDM
Base is properly in place.
NOTE: Some HDM Bases mount under the vehicle seat
bracket and reuse OEM seat bolts (A), while other
HDM Bases mount over the top of vehicle seat
bracket and use provided spacers and bolts (B).
A) Align the Adaptor Plate mounting studs to the top of
the inner pole, then attach using the supplied 5/16” lock
washers, at washers, and nuts. Place the large plastic
washer on top of Adaptor Plate.
B) Align Swing Arm with Motion Device mounting holes
to the top of the inner pole, then attach using 1/4” lock
washers, at washers, and bolts.
NOTE: Make sure all hardware is fully tightened.
Havis Heavy Duty Passenger Side Mounts
General Installation Instructions
2010 Ford Focus used for instructions
C-HDM-301 C-MD-102

Produkt Specifikationer

Mærke: Havis
Kategori: Bilmonteringssæt
Model: C-HDM-415
Produktfarve: Sort
Kompatible produkter: C-HDM-206, C-HDM-217
