SPACER

OFFSET MOUNT

BASE

SEAT BOLT

SUPPLIED

WITH

HARDWARE KIT

(FIG. 2) C-HDM-104 SHOWN

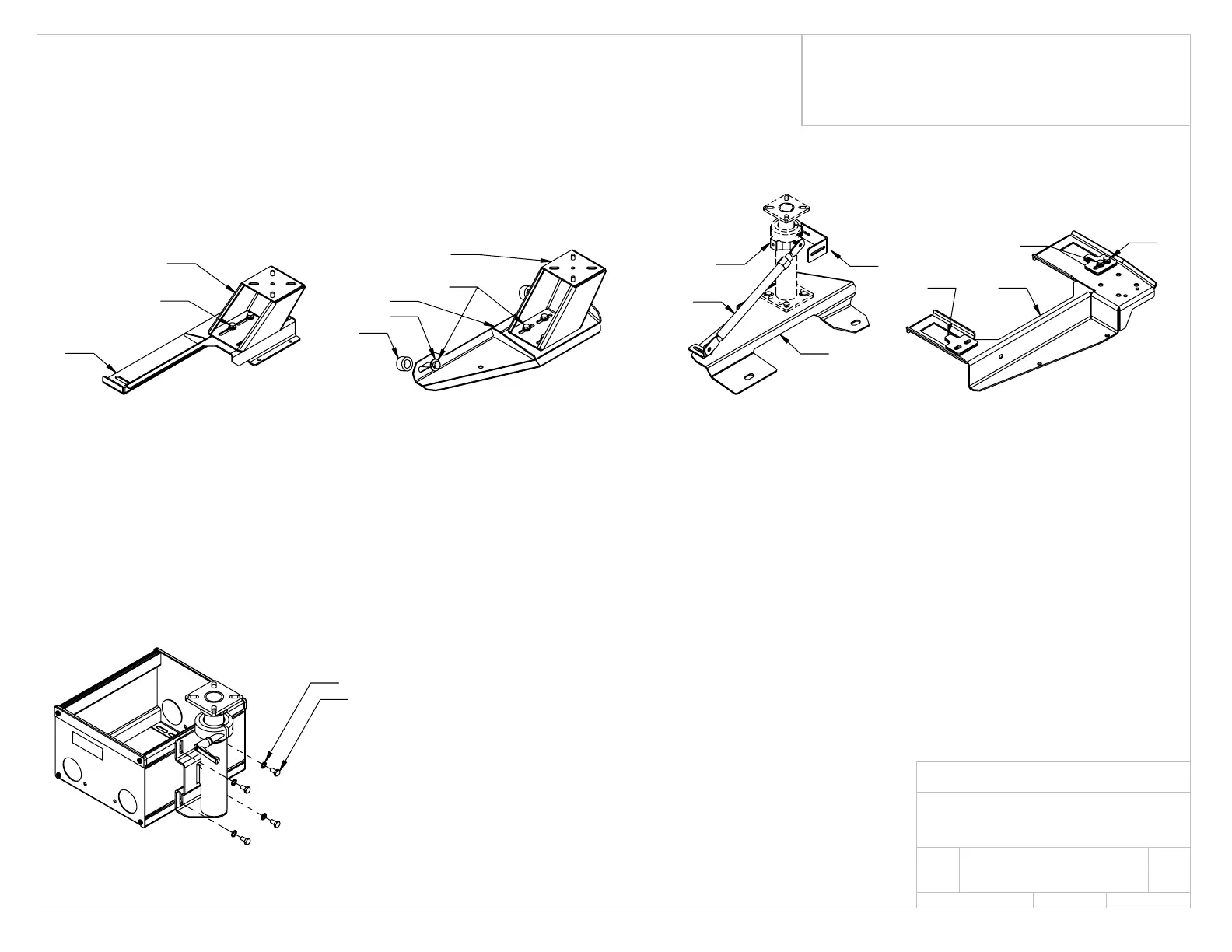

VEHICLE MOUNTING BASE WITH SPACER

AND OFFSET BRACKET

PLACE THE SPACER AT THE

SEATBOLT LOCATIONS TO FILL THE

GAP BETWEEN THE SEAT BRACKET

AND BASE.

(C-HDM-121 ONLY

REQUIRES A SPACER ON THE

DRIVERS SIDE BOLT).

ALIGN BASE MOUNTING HOLES TO

SEATBOLT MOUNTING POINTS.

USING SUPPLIED SEATBOLTS,

INSERT BOLTS PASSING THROUGH

THE SPACER AND SEAT BRACKET

THEN HAND TIGHTEN TO AVOID

STRIPPING THE THREADS.

FULLY TIGHTEN SEAT BOLTS.

(FIG. 4) C-HDM-103 SHOWN

VEHICLE MOUNTING BASE WITH FILLERS

BASE

FILLER

SUPPLIED

WITH

HARDWARE KIT

REMOVE REAR SEATBOLTS. TILT THE SEAT

FORWARD WHILE PULLING THE SEAT

TOWARDS THE REAR TO DISENGAGE

THE FRONT SEAT HOOKS.

ALIGN MOUNTING BASE CUT-OUT TO

FRONT SEAT HOOK ENTRY. RETURN THE

SEAT TO ITS ORIGINAL LOCATION

WHILE HAVING THE BASE SANDWICHED

BETWEEN THE SEAT BRACKET AND

VEHICLE FLOOR. PUSH IN THE 2 FILLERS

ON EACH SIDE TO FILL THE GAP

BETWEEN THE SEAT BRACKET AND BASE.

SECURE THE FILLER USING SUPPLIED

HARDWARE. NOTE ONLY ONE KEY

SHAPED FILLER NEEDED ON DRIVERS

SIDE IF HUMP BRACKET IS BEING USED.

REATTACH REAR SEAT BOLTS AND

FULLY TIGHTEN.

(FIG. 1) C-HDM-101 SHOWN

STANDARD NO HOLES DRILLED - VEHICLE

MOUNTING WITH OFFSET BRACKET

BASE

SUPPLIED

WITH

HARDWARE KIT

OFFSET MOUNT

LIFT THE SEAT AND PLACE BASE

BETWEEN SEAT BRACKETS AND

VEHICLE FLOOR, ALIGN MOUNTING

HOLES TO SEATBOLT LOCATIONS. IN

SOME VEHICLES, THE SEATBOLTS ARE

ORIENTATED AT AN ANGLE, IF THIS IS

THE CASE, THE BASE WILL SIT ON TOP

OF THE SEAT BRACKET.

USING EXISTING SEATBOLTS, LOOSELY

ATTACH ALL SEATBOLTS. USE CAUTION

WHEN THREADING THE BOLTS TO

AVOID STRIPPING THE THREAD.

FULLY TIGHTEN SEAT BOLTS.

(FIG. 3) C-HDM-106 SHOWN

VEHICLE MOUNTING BASE (VAN APPLICATION)

BASE

(C-HDM-401)

INCLUDED IN

C-HDM-106/107

HARDWARE KIT

STIFFENER

BRACKET

LIFT THE SEAT AND PLACE BASE

BETWEEN SEAT BRACKETS AND

VEHICLE FLOOR, ALIGN MOUNTING

HOLES TO SEAT BOLT MOUNTING

POINTS. SEE NOTE 3 ABOVE.

USING EXISTING SEATBOLTS, LOOSELY

ATTACH ALL SEATBOLTS. USE CAUTION

WHEN THREADING THE BOLTS TO

AVOID STRIPPING THE THREADS.

ATTACH POLE ASSEMBLY USING

SUPPLIED HARDWARE.

INSTALL SUPPORT ARM AS SHOWN

USING HARDWARE SUPPLIED WITH C-

HDM-401 KIT. ENSURE THE C-HDM-401

DOES NOT CLAMP ABOVE THE

HORIZONTAL SLOT IN THE POLE.

INSTALL STIFFENER BRACKET AS

SHOWN, DRILL AND BOLT TO THE SEAT

IF DESIRED.

FULLY TIGHTEN SEAT BOLTS.

SUPPORT ARM

C-HDM-204, 205, 212, 213, 214, 215,

216, 217 ARE NOT COMPATIBLE WITH

THE C-HDM-100 SERIES.

TO ATTACH C-HDM-204, 205, 214, 215

LINE UP THE MOUNT WITH THE NUTS IN

THE CONSOLE, ATTACH USING 1/4-20

BOLTS. HOLES CAN BE DRILLED AND

THE MOUNT THROUGH BOLTED IF

NECESSARY.

TO MOUNT C-HDM-212, 213, 216, 217,

HOLES MUST BE DRILLED AND THE

MOUNT THROUGH BOLTED USING THE

HARDWARE PROVIDED.

SEE NOTES FOR DRILLING

1/4-20 x1/2" LG

1/4" SERRATED WASHER

C-HDM-103- see FIG. 4

C-HDM-104- see FIG. 2

C-HDM-105- see FIG. 2

C-HDM-106- see FIG. 3

C-HDM-107- see FIG. 3

C-HDM-109- see FIG. 2

C-HDM-121- see FIG. 2

C-HDM-124- see IND. INSTALL

C-HDM-131- see IND. INSTALL

C-HDM-133- see IND. INSTALL

C-HDM-134- see IND. INSTALL

C-HDM-135- see IND. INSTALL

STEP 1 C-HDM-100's INSTALLATION INSTRUCTIONS

VEHICLE PASSENGER SIDE MOUNTING BASE

INSPECT PARTS RECEIVED TO MAKE SURE YOU HAVE THE RIGHT BRACKETS FOR THE SPECIFIC VEHICLE.

REMOVE ALL PLASTIC END CAPS COVERING THE SEAT BOLTS, IF APPLICABLE.

REMOVE FRONT SEATBOLTS, IN SOME CASES REMOVING OR LOOSENING REAR SEATBOLTS WILL EASE

THE INSTALLATION PROCESS. KEEP THE SEATBOLTS FOR RE-INSTALLATION. ON VAN HDMS THE LEFT SIDE

FRONT & REAR BOLTS ON THE PASSENGER SEAT SHOULD BE REMOVED ( HDM MOUNT ATTACHES TO

THE SIDE SEAT BOLTS).

IF OFFSET MOUNT IS SUPPLIED, IT'S RECOMMENDED TO INSTALL THIS AS THE LAST PROCESS. (SEE STEP 2)

SEE THE RECOMMENDED INSTALL GUIDELINES LISTED BELOW TO IDENTIFY WHICH IS BEST FOR YOUR

INSTALLATION. IF THE HDM BASE IS NOT LISTED IT EITHER HAS ITS OWN SPECIFIC INSTRUCTION OR

FOLLOWS THE SAME PROCESS AS FIGURE 1.

VISIT US AT www.havis.com TO SEE PICTURES OF INDIVIDUALLY INSTALLED PRODUCTS.

FOR VEHICLE MOUNTING THAT REQUIRES DRILLING

INSPECT ALL AREAS BEFORE DOING ANY DRILLING

ENSURE NO SERIOUS DAMAGE HAPPENS TO THE

VEHICLE.

SECURE THE MOUNT WITH SUPPLIED HARDWARE KIT.

(FIG. 5) C-HDM-204 SHOWN

STANDARD NO HOLES DRILLED

CONSOLE MOUNTING

75 JACKSONVILLE RD,

WARMINSTER, PA. 18974

1-800-524-9900

SIZE

TITLE:

DWG. NO.

REV

C-HDM-100-INST

4/6/10

HAVIS, INC.

INSTALLATION INSTRUCTIONS,

C-HDM-100's MOUNTING BASE

A-

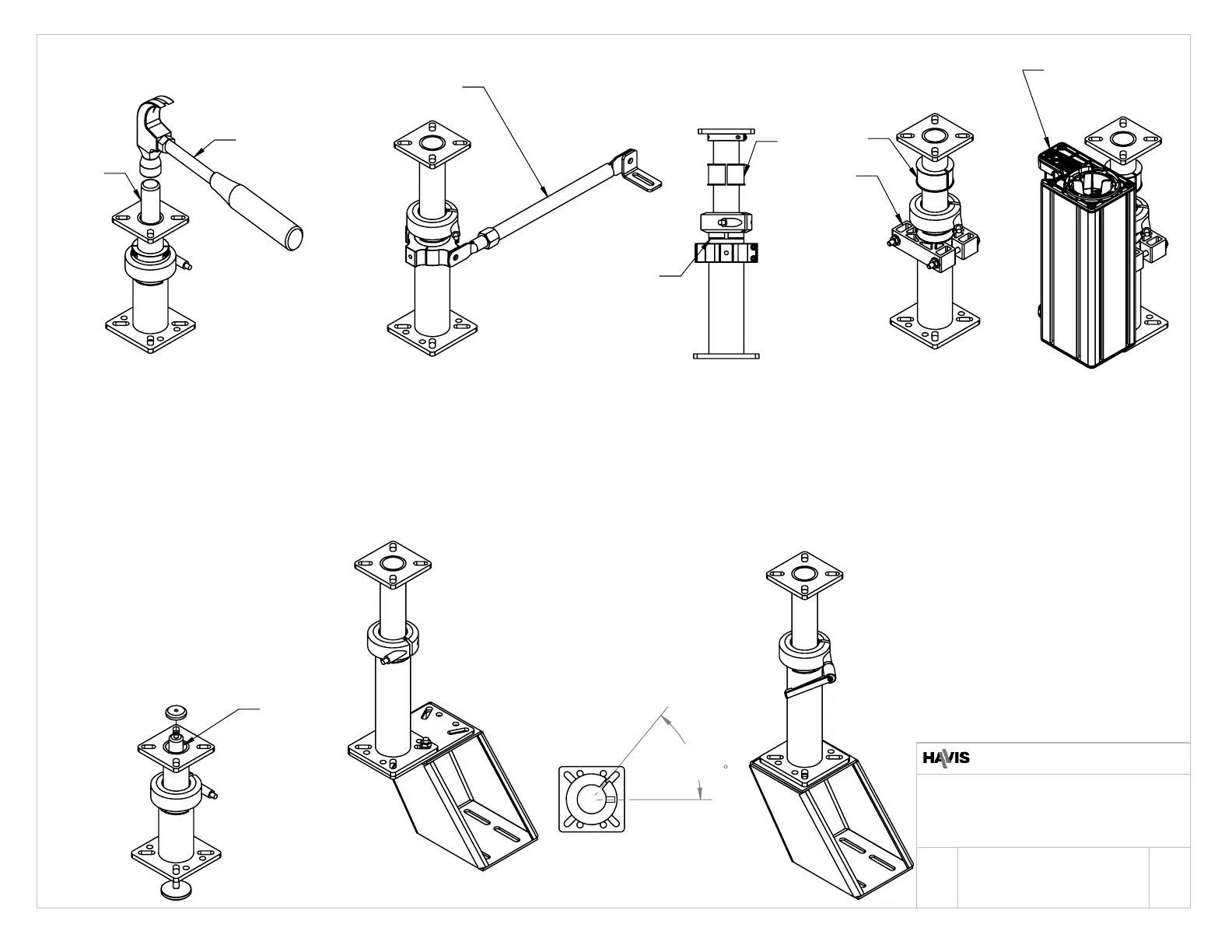

GUIDE RING BUSHING REMOVAL

WE STRONGLY RECOMMEND NOT TO REMOVE THE

GUIDE RING BUSHING, BUT IF REMOVAL OF INNER POLE

IS DESIRED - FOLLOW THIS SIMPLE REMOVAL

INSTRUCTION

INSERT MAXIMUM 1" DIAMETER OBJECT WITH

SUFFICIENT LENGTH AND DROP INSIDE INNER POLE.

MAKE SURE NOTHING PREVENTS GUIDE RING

BUSHING FROM BEING EJECTED UNDERNEATH. HIT

WITH A HAMMER TO FORCE THE GUIDE RING

BUSHING OUT.

HAMMER

7/8" - 1"

DIAMETER

OBJECT

SPIDER MUST BE

BELOW THIS SLOT

ON THE OUTER POLE

B -

INSTALL SPIDER COLLAR (OPTIONAL

COMES WITH C-HDM-401 & 403)

IF MOUNTING THE SPIDER COLLAR TO THE INNER

POLE USE CM003406 REDUCING BUSHING. SPREAD

AND SNAP OVER THE INNER POLE.

LOOSELY ATTACH SPIDER COLLAR TO THE OUTER

POLE OR CM003406. DO NOT MOUNT SPIDER

COLLAR ABOVE OUTER POLE HORIZONTAL CUT.

SUPPORT ARM

(OPTIONAL)

C -

INSTALL OPTIONAL C-HDM-416

IF MOUNTING C-HDM-416 TO THE INNER POLE USE

CM003406. SPREAD THE PIECE AND IT SHOULD SNAP

OVER THE INNER POLE.

ATTACH C-PM-101 TO CLAMP ASSEMBLY USING

LONG CARRIAGE BOLTS INSERTED THROUGH THE

PRINTER AND ONE PIECE OF EXTRUSION.

ATTACH POLE CLAMP TO THE OUTER POLE OR

CM003406. AFFIX SECOND PIECE OF EXTRUSION

AROUND POLE AND LOOSELY TIGHTEN THE

HARDWARE. DO NOT MOUNT CLAMP ABOVE

OUTER POLE HORIZONTAL CUT.

C-HDM-416

C-PM-101

SOLD SEPARATELY

E -

INSTALL C-HDM-409 OPTIONAL

& COLLAR CLAMP ALIGNMENT

THIS CAN BE DONE EITHER AT THIS POINT OR ONCE

THE C-HDM-100 SERIES BASE IS ALREADY IN THE

VEHICLE. YOU WILL NEED THE OFFSET THAT WAS

WIITH THE C-HDM-100 BASE IF APPLICABLE.

DECIDE ON THE ORIENTATION OF THE C-HDM-409.

ENSURING THAT IF THE HANDLE VERSION OF THE

POLE IS BEING USED THE TWO SLOTS ARE NO MORE

THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE

POLE TO THE CORRECT POSITION.

IF NO HANDLE IS BEING USED ENSURE THE OUTER

POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.

TIGHTEN ALL THE HARDWARE.

F -

INSTALL C-HDM-410-412 OPTIONAL

THIS CAN BE DONE EITHER AT THIS POINT OR ONCE

THE C-HDM-100 SERIES BASE IS ALREADY IN THE

VEHICLE. YOU WILL NEED THE OFFSET THAT WAS

WIITH THE C-HDM-100 BASE IF APPLICABLE.

DECIDE ON THE ORIENTATION OF THE OFFSET.

ENSURING THAT IF THE HANDLE VERSION OF THE

POLE IS BEING USED THE TWO SLOTS ARE NO MORE

THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE

POLE TO THE CORRECT POSITION.

IF NO HANDLE IS BEING USED ENSURE THE OUTER

POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.

TIGHTEN ALL THE HARDWARE.

THAN 45

NO MORE

D-

INSTALL GAS SHOCK (OPTIONAL)

(SKIP IF GAS SHOCK IS NOT IN USE)

UNSCREW SMALL PLASTIC DISC FROM SHOCK

INSERT GAS SHOCK ASSEMBLY UPWARD FROM

THE BOTTOM OF HDM POLE ASSEMBLY WITH GAS

SHOCK'S ROD FACING DOWNWARD. GAS

SHOCK WILL SANDWICH BETWEEN MOUNTING

BASE C-HDM-100 SERIES (NOT SHOWN) AND

ACTION ADAPTER C-HDM-300 SERIES (NOT

SHOWN).

ONCE GAS SHOCK SITS PROUD OF THE INNER

POLE REATTACH SMALL PLASTIC DISC.

GAS SHOCK

(OPTIONAL)

ASSEMBLY INSTRUCTIONS , HDM

200 SERIES, POLE ASSEMBLY

STEP 2 HEAVY DUTY MOUNT

POLE PREPARATION INSTRUCTIONS

CM003406 REDUCING

BUSHING IS NECESSARY

IF MOUNTING TO

THE INNER POLE.

USE ONLY ON FIXED

HEIGHT POLES.

75 JACKSONVILLE RD,

WARMINSTER, PA. 18974

1-800-524-9900

SIZE

TITLE:

DWG. NO.

REV

C-HDM-200-INST

4/6/10

HAVIS, INC.
