Gooseneck Map Light

Installation Instructions

Warning: Please read all instructions and warnings prior to installation of the Gooseneck Map Light.

TOOLS REQUIRED:

Phillips Screw Driver

Wire Cutter

HARDWARE: (Supplied in Kit)

Qty. Description Qty. Description

2 #6 Machine Screw 2 #6 Split Lock Washer

2 #6 Thread Forming Screw 2 #6 Flat Washer

INSTALLATION:

1. Mounting:

• A drill template is provided on the back of this instruction sheet. Detach the

template, position it on the desired location for installation, and mark drill locations.

Caution: Before drilling holes, ensure that the mounting surfaces are clear and that the

screws will not damage the internal parts of the console or vehicle.

Caution: Ensure that the Gooseneck Map Light is installed in areas recommended by the

vehicle manufacturer—outside of the airbag zone.

• Drill the mounting holes.

• Remove the template prior to installing the fixture. Secure the base of the fixture in

position using the supplied machine screws and washers.

• The supplied super clip may be used to secure the gooseneck in position if desired.

Caution: Thread forming screws are supplied for alternate installations requiring the fixture to

be mounted from above. If the fixture needs to be disassembled for such installation, please

note that this will void your warranty.

2. Wiring:

• Connect the black lead to the vehicle chassis (Ground.)

• Connect the red lead to power.

Note: It is recommended to install an in-line fuse holder and 1 Amp fuse on the red (hot) lead.

• Test the light for proper operation.

C-MAP_INST_6-09

Caution: The Gooseneck Map Light uses a halogen bulb—It can be VERY HOT!

Do not touch the bulb or fixture shroud when it is hot.

3. Operation:

• Power is supplied through a dimmer switch. Turn the knob clockwise to turn on the

light and increase brightness, and counterclockwise to dim or turn off power.

Caution: Always turn the dimmer knob gently. Do not force the knob to turn once it stops.

• The fixture head has an integral red lens. If desired, slide the lens over the lamp for

red light, or slide it toward the stem for white light.

Note: To avoid leaving fingerprints on the lens, use only the tab on the edge of the red lens to

slide it.

4. Troubleshooting:

• In the event of improper operation, first check that the dimmer switch is turned all the

way on by gently rotating the knob clockwise until it stops.

• Second, check the bulb and replace it if it is burned out.

• Third, check the fuse (if installed) and replace it if necessary.

• Finally, use a voltmeter to ensure that the fixture is receiving adequate power. The

light requires nominally 12 VDC for correct operation. Correct any faults found.

REPLACEMENT PARTS:

Part # Description

CM93745 Lamp, 5 Watt, Halogen

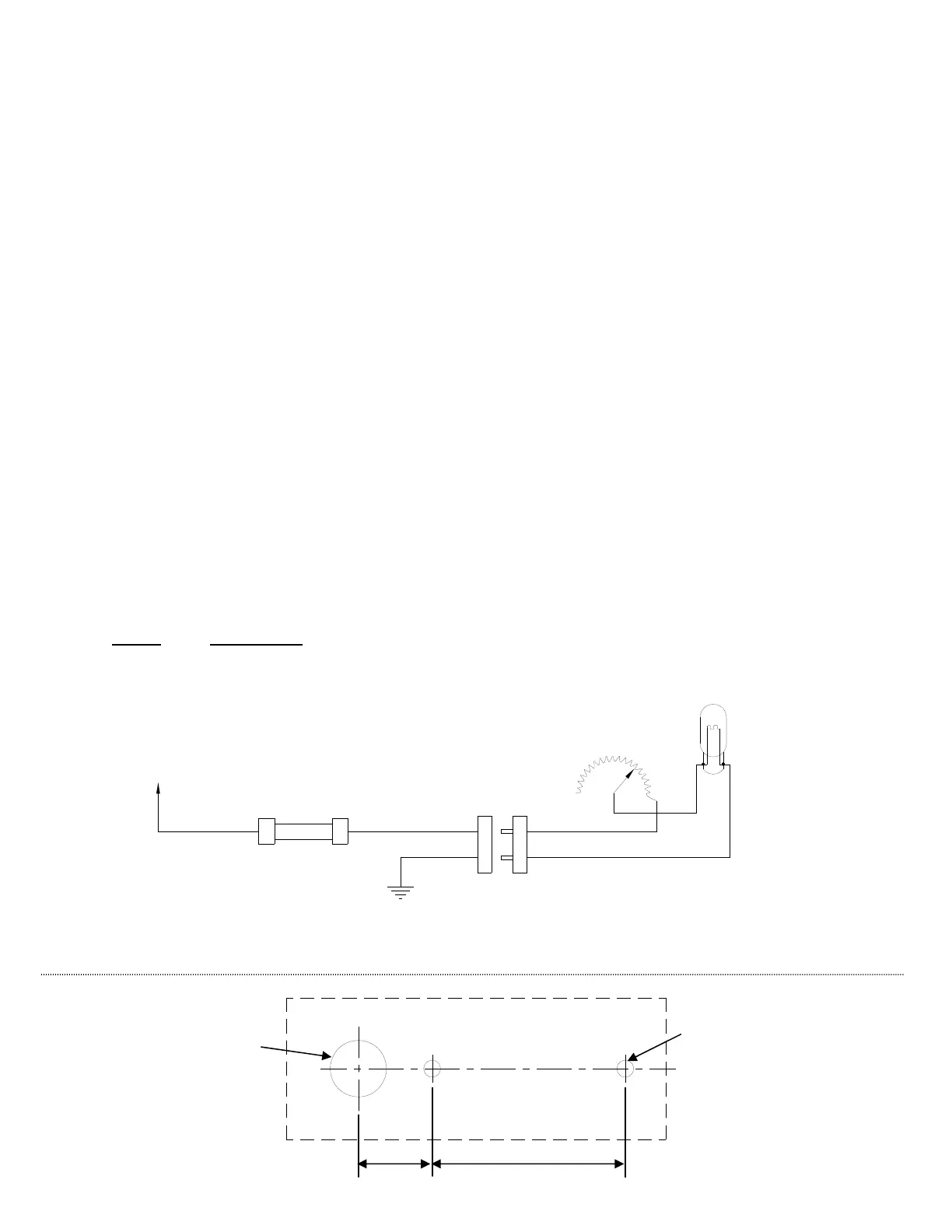

TEMPLATE:

Bulb

Dimmer

+12 VDC

Power

1A Fuse

(Recommended)

User-Supplied

Connector

(Optional)

Ground

HOT - RED

COMMON - BLACK

Note:

Fuse, fuse holder, and connector are

not supplied by Havis-Shields.

WIRING DIAGRAM:

∅0.16 (5/32” Drill)

Mounting Holes

∅0.50 (1/2” Drill)

Wireway

1-23/32 21/32

Cli

Here

Cli

Here
