INSTALL INSTRUCTIONS C- - TTB CV

HALF SIZE TRUNK TRAY

1995-2009 FORD CROWN VICTORIA

TOOLS REQUIRED:

Ratcheting wrench

Sockets - 7/16”, #10, #8

Screwdriver set

Wrench – 7/16”

HARDWARE:

ITEM# QTY DESCRIPTION PART #

1 1 Passenger side front foot S-1-000958

2 1 Driver side front foot S-1-000959

3 1 Support plate S-1-000964

4 1 Driver side rear foot S-1-TA001HBS1-006A

5 1 Passenger side rear foot S-1-TA001HBS1-006B

11 GSM31005 ¼” Flat washer

11 GSM30023 ¼” Serrated nut

5 GSM33001 ¼” x ¾” Hex head bolt

4 8-32 Keps nut GSM30027

Always!

 Read all instructions before installing any Havis, Inc. products.

 Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!

 Use hardware provided with install kit

(Attaches w/ 8-32 keps nuts)

(Attaches w/ ¼” serrated nuts)

(Attaches w/ 8-32 keps nuts)

(Bolts to back seat wall)

C- -CV_INST_6- 6- TTB 09 09

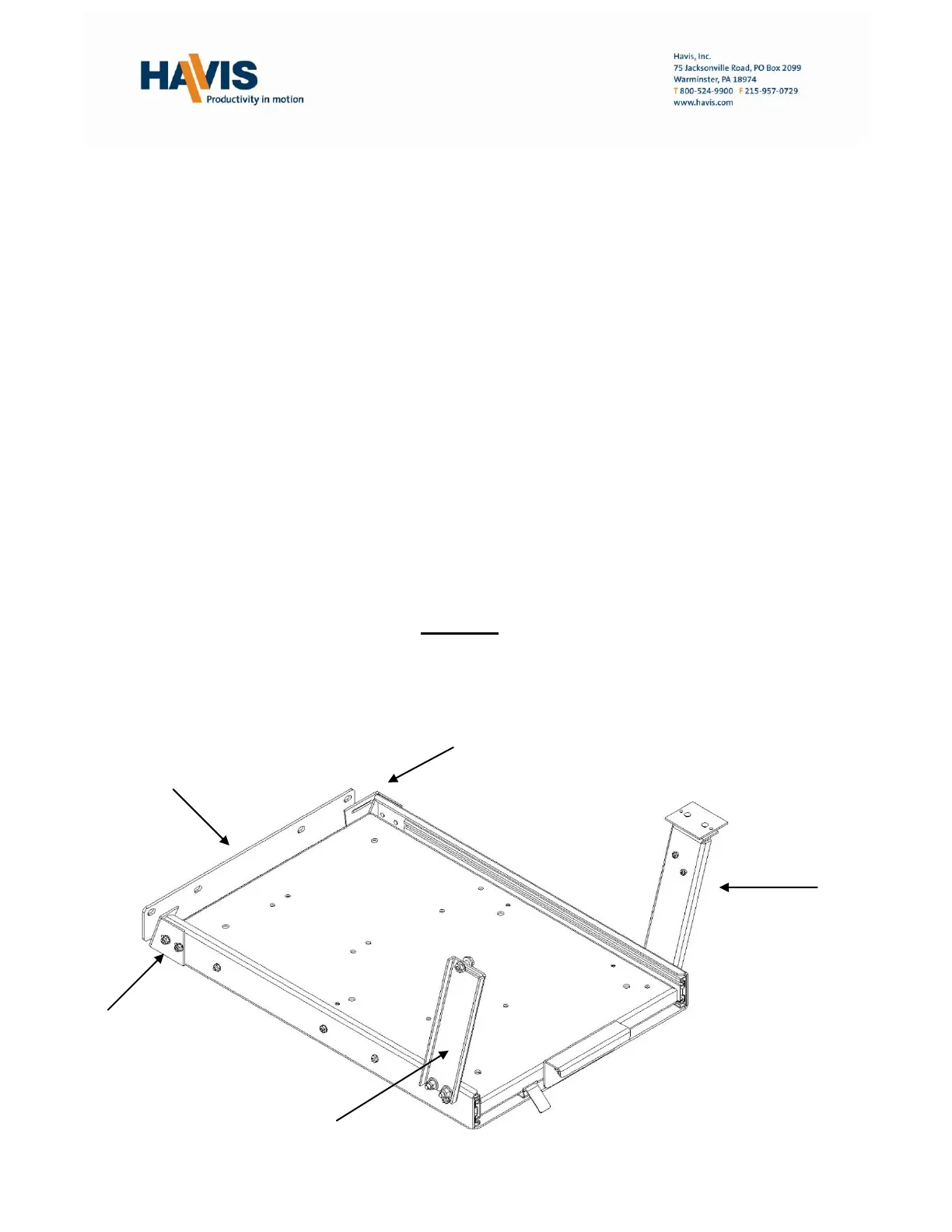

INSTALL INSTRUCTIONS: (refer to drawing on previous page)

1. Remove spare tire and jack from trunk.

2. Slide tray into the top shelf of the trunk.

3. Loosely attach (items #1 & 2) front mounting feet to the tray, using ¼” x ¾” Hex

head bolts, washers, and nylock nuts.

4. Loosely attach front mounting feet to the vehicle, using ¼” x 1” Hex head bolts,

washers, and nylock nuts.

NOTE: Use backing plate for additional support on forward side of seat strainer.

5. Loosely attach (items #4 & 5) driver/passenger side rear mounting feet to the tray,

using ¼” x ¾” Hex head bolts, washers, and nylock nuts.

6. Loosely attach (items #4 & 5) driver/passenger side rear mounting feet to the vehicle,

using ¼” x 1” Hex head bolts, washers, and nylock nuts.

7. Check to see if tray opens and closes smoothly.

8. Tighten all hardware.
