INSTALL INSTRUCTIONS C-VS-0809-CHGR-1

2011-2013 Dodge Charger (Police Package)

VEHICLE SPECIFIC CONSOLE

With 17” inches Equipment space

TOOLS NEEDED:

Phillips Screw Driver

Socket set (Standard & Metric)

Wire Cutters Wire Crimping tool

7/16 wrench T-20 Torx Bit

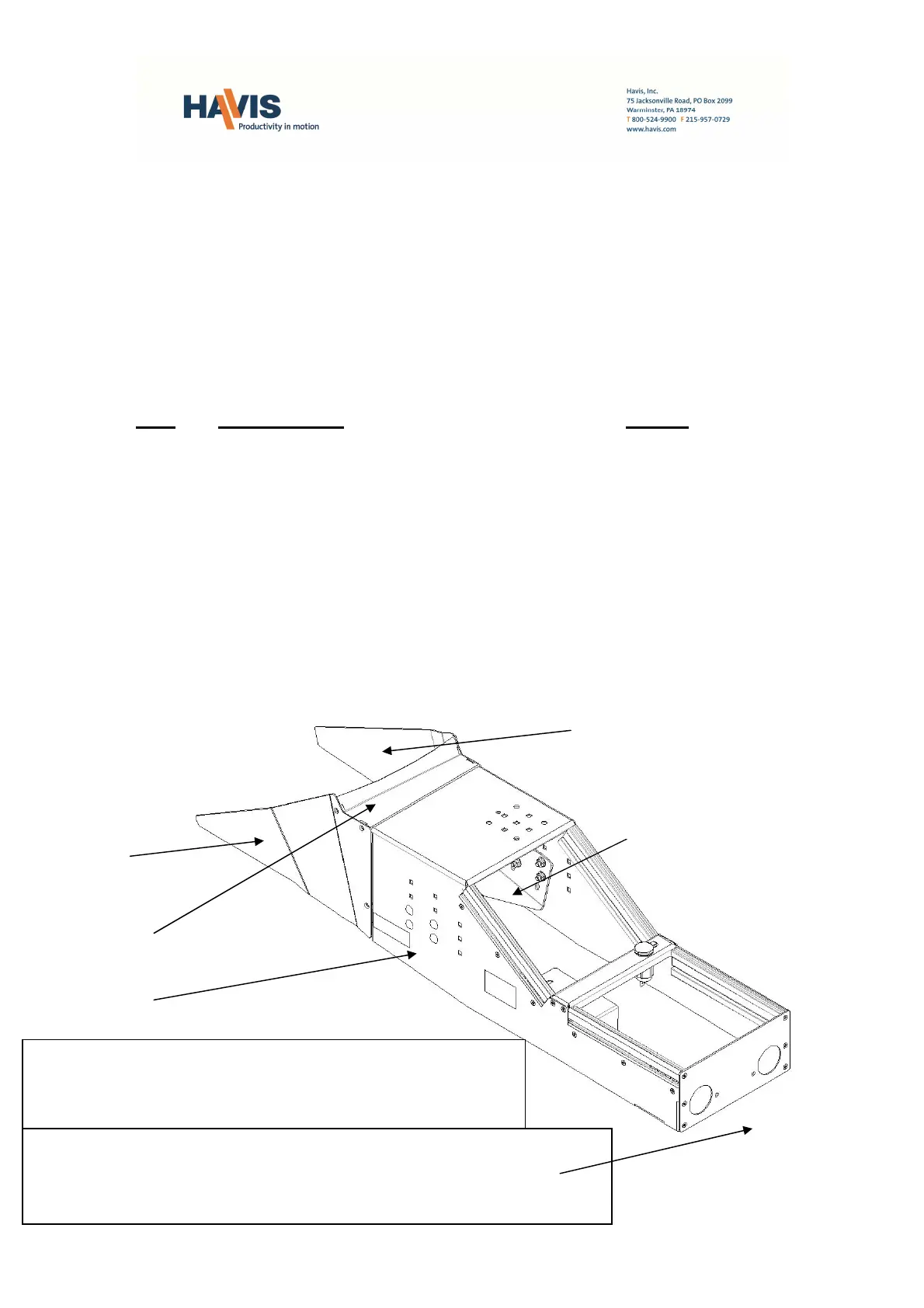

QTY DESCRIPTION PART #

1 Main Console Housing CM004345

CM004345 Main Housing Includes:

1 Floor Mount Bracket CM003956

1 Front / Center End Panel CM004380

1 Lighter Socket with cap CM216560

3 7/8” Plug CM86430

1 “O” Ring KRM98017

Not Included with CM00435 Housing, but included with complete kit:

1 Driver Side Trim Panel CM004381

1 Passenger Side Trim Panel CM004382

1 Lighter Socket with cap CM216560

1 Sensor Cover CM001638

1 Hardware kit C-HK-174

CM004380

Front / Center End Panel

CM004345

Main Console Housing

CM004381

Driver Side Trim Panel

CM003956

Floor Mount Bracket

ALWAYS!

* Read all Instructions before installing any Havis, Inc. products.

* Use Hardware included with install kit

CM004382

Passenger Side Trim Panel

NOTE:

If your vehicle has the optional carpet interior, there will be a small

hole in the carpet not covered by the console housing at the rear.

If desired, an optional cover plate part number - CM001642 is available.

Cover plate not shown.

C-VS-0809-CHGR-1_INST_4-11

Remove O.E.M. plastic center

console

Remove Ignition proximity sensor /

antenna from rear underside of

O.E.M. console.

(Phillips Screwdriver)

** SEE NOTE BELOW **

Remove sensor and 12 volt socket

wire harness assembly from under

side of O.E.M. console.

Pop out “AUX” socket from center

of O.E.M console.

O.E.M. console prior to

C-VS-0809-CHGR-1 console

installation.

Remove forward O.E.M console

plastic cover and remove two (2)

nuts from front ﬂoor bracket.

Nuts to be reused. (10mm)

Remove bolts that hold underside

of extrusion to rear ﬂoor bracket.

(7/16 wrench)

Remove rear ﬂoor bracket bolts

and center console bolt. (10mm)

Carefully place console assembly

between seats and onto front O.E.M.

ﬂoor studs.

On 2011 Charger, attach Ignition

proximity sensor /antenna to

transmission hump with Velcro.

NOTE: 2012 and newer cars include

an O.E.M. bracket with this sensor

already relocated. Velcro mounting

will not be needed

Plug O.E.M. wire harness back

onto original connectors.

Passenger side
