TAILWIND FLEXIPOLE

PLUS STAND

(SOLD SEPARATELY)

BACKPLATE

PAX S300

M5 X 8MM LONG

PHILLIPS SCREW

TOOL LIST:

1. #2 PHILLIPS SCREW OR DRILL DRIVER

ASSEMBLY STEPS:

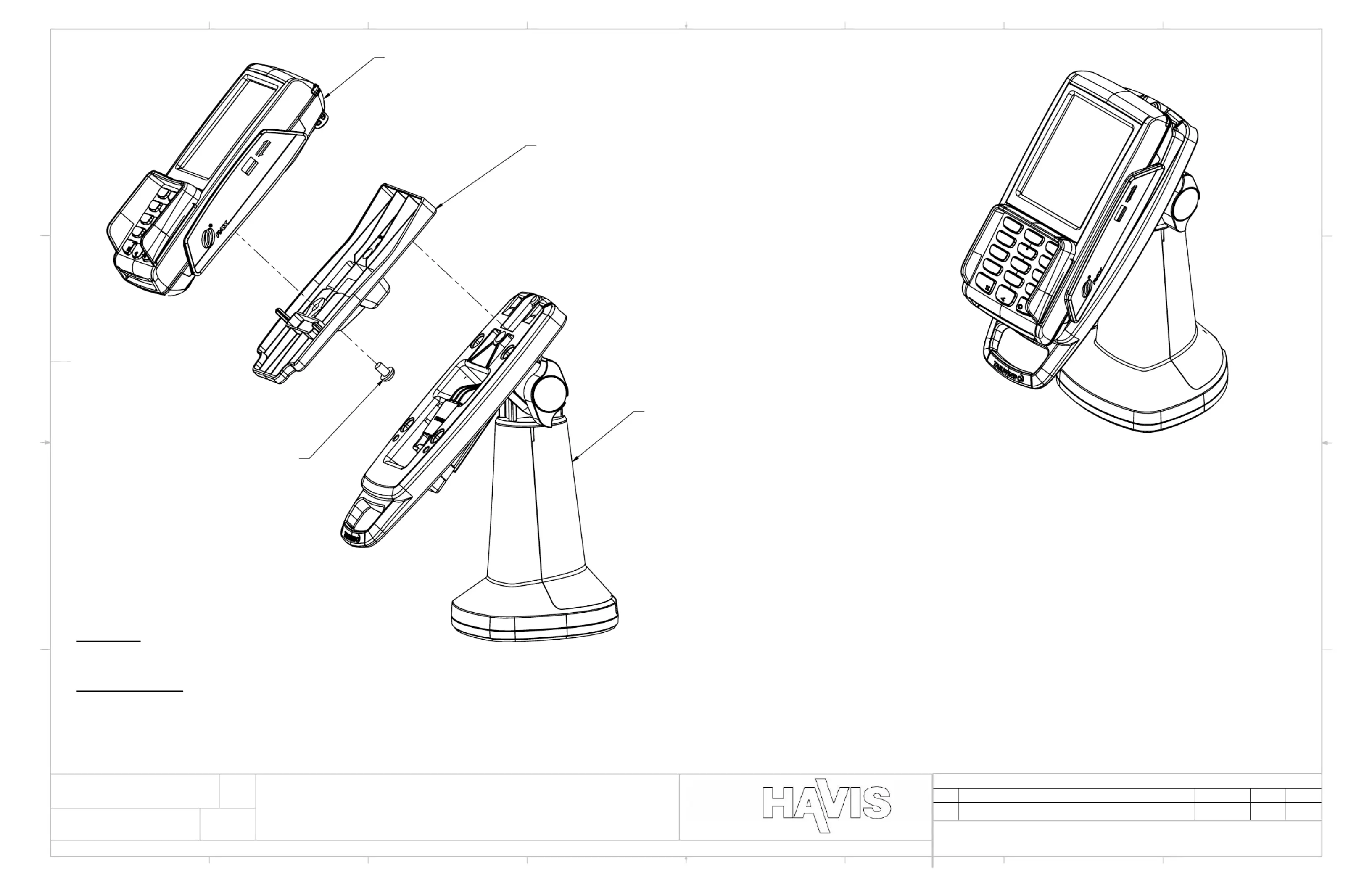

1. CONNECT

PAX S300

BACKPLATE

AND SECURE USING

M5 X 8MM LONG PHILLIPS SCREW

2. ATTACH THE

PAX S300/BACKPLATE

TO THE

TAILWIND FLEXIPOLE PLUS STAND

SNAPPING IT INTO PLACE AS SHOWN.

3. ROUTE THE

DEVICE CABLE

AS DESIRED.

REVISIONS

REV

DESCRIPTION

DATE

CHK'D

RELEASED FOR PRODUCTION

06/25/21

AN AN

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF IS PROHIBITED.HAVIS HAVIS

DRAWN

DATE

TITLE

DWG. NO.

REV.

SHEET 1 OF 1

CUSTOMER INSTRUCTIONS

6/25/2021

A. NORLING

CST00198

PAX S300 PEDPACK
