SPACER

OFFSET MOUNT

BASE

SEAT BOLT

SUPPLIED

WITH

HARDWARE KIT

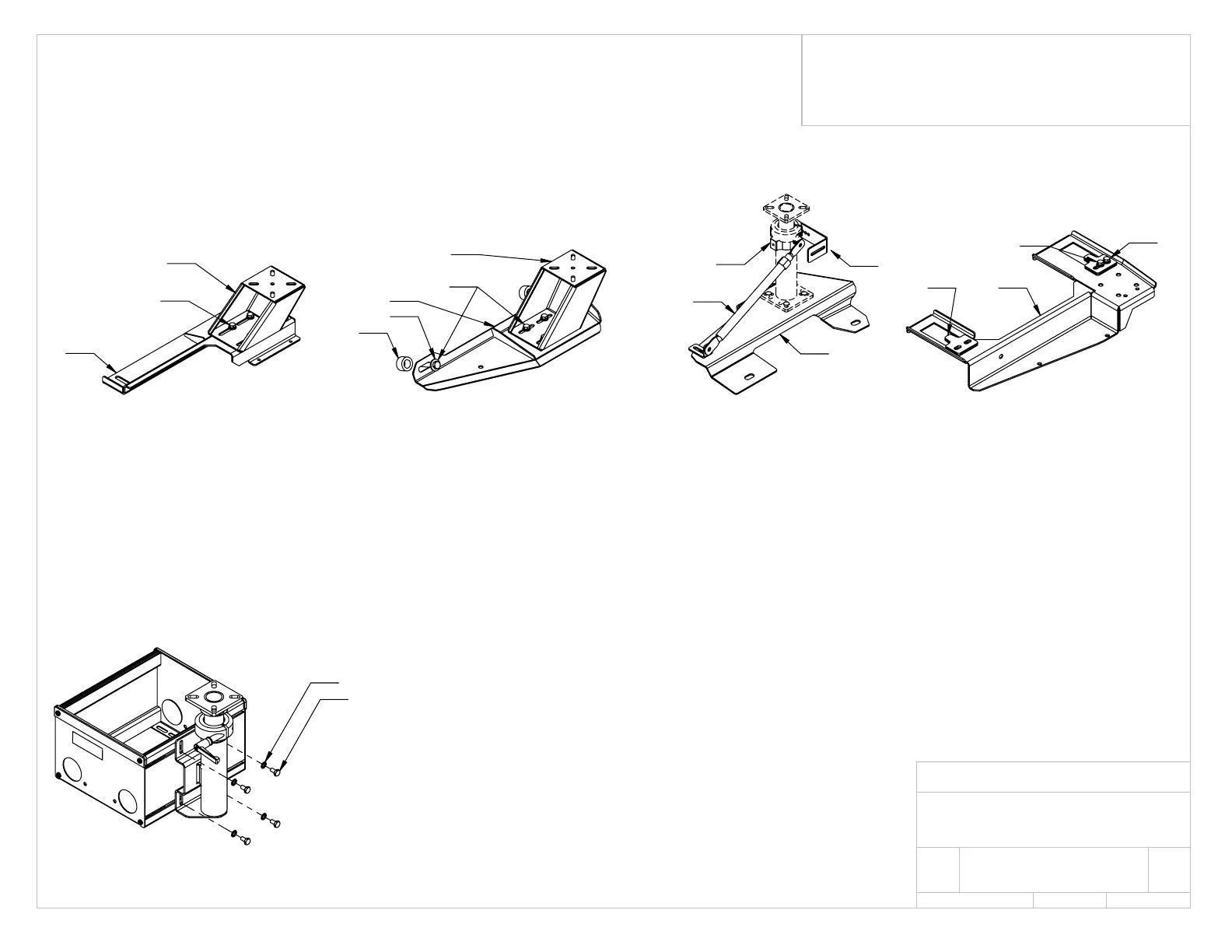

(FIG. 2) C-HDM-104 SHOWN

VEHICLE MOUNTING BASE WITH SPACER

AND OFFSET BRACKET

PLACE THE SPACER AT THE

SEATBOLT LOCATIONS TO FILL THE

GAP BETWEEN THE SEAT BRACKET

AND BASE.

(C-HDM-121 ONLY

REQUIRES A SPACER ON THE

DRIVERS SIDE BOLT).

ALIGN BASE MOUNTING HOLES TO

SEATBOLT MOUNTING POINTS.

USING SUPPLIED SEATBOLTS,

INSERT BOLTS PASSING THROUGH

THE SPACER AND SEAT BRACKET

THEN HAND TIGHTEN TO AVOID

STRIPPING THE THREADS.

FULLY TIGHTEN SEAT BOLTS.

(FIG. 4) C-HDM-103 SHOWN

VEHICLE MOUNTING BASE WITH FILLERS

BASE

FILLER

SUPPLIED

WITH

HARDWARE KIT

REMOVE REAR SEATBOLTS. TILT THE SEAT

FORWARD WHILE PULLING THE SEAT

TOWARDS THE REAR TO DISENGAGE

THE FRONT SEAT HOOKS.

ALIGN MOUNTING BASE CUT-OUT TO

FRONT SEAT HOOK ENTRY. RETURN THE

SEAT TO ITS ORIGINAL LOCATION

WHILE HAVING THE BASE SANDWICHED

BETWEEN THE SEAT BRACKET AND

VEHICLE FLOOR. PUSH IN THE 2 FILLERS

ON EACH SIDE TO FILL THE GAP

BETWEEN THE SEAT BRACKET AND BASE.

SECURE THE FILLER USING SUPPLIED

HARDWARE. NOTE ONLY ONE KEY

SHAPED FILLER NEEDED ON DRIVERS

SIDE IF HUMP BRACKET IS BEING USED.

REATTACH REAR SEAT BOLTS AND

FULLY TIGHTEN.

(FIG. 1) C-HDM-101 SHOWN

STANDARD NO HOLES DRILLED - VEHICLE

MOUNTING WITH OFFSET BRACKET

BASE

SUPPLIED

WITH

HARDWARE KIT

OFFSET MOUNT

LIFT THE SEAT AND PLACE BASE

BETWEEN SEAT BRACKETS AND

VEHICLE FLOOR, ALIGN MOUNTING

HOLES TO SEATBOLT LOCATIONS. IN

SOME VEHICLES, THE SEATBOLTS ARE

ORIENTATED AT AN ANGLE, IF THIS IS

THE CASE, THE BASE WILL SIT ON TOP

OF THE SEAT BRACKET.

USING EXISTING SEATBOLTS, LOOSELY

ATTACH ALL SEATBOLTS. USE CAUTION

WHEN THREADING THE BOLTS TO

AVOID STRIPPING THE THREAD.

FULLY TIGHTEN SEAT BOLTS.

(FIG. 3) C-HDM-106 SHOWN

VEHICLE MOUNTING BASE (VAN APPLICATION)

BASE

(C-HDM-401)

INCLUDED IN

C-HDM-106/107

HARDWARE KIT

STIFFENER

BRACKET

LIFT THE SEAT AND PLACE BASE

BETWEEN SEAT BRACKETS AND

VEHICLE FLOOR, ALIGN MOUNTING

HOLES TO SEAT BOLT MOUNTING

POINTS. SEE NOTE 3 ABOVE.

USING EXISTING SEATBOLTS, LOOSELY

ATTACH ALL SEATBOLTS. USE CAUTION

WHEN THREADING THE BOLTS TO

AVOID STRIPPING THE THREADS.

ATTACH POLE ASSEMBLY USING

SUPPLIED HARDWARE.

INSTALL SUPPORT ARM AS SHOWN

USING HARDWARE SUPPLIED WITH C-

HDM-401 KIT. ENSURE THE C-HDM-401

DOES NOT CLAMP ABOVE THE

HORIZONTAL SLOT IN THE POLE.

INSTALL STIFFENER BRACKET AS

SHOWN, DRILL AND BOLT TO THE SEAT

IF DESIRED.

FULLY TIGHTEN SEAT BOLTS.

SUPPORT ARM

C-HDM-204, 205, 212, 213, 214, 215,

216, 217 ARE NOT COMPATIBLE WITH

THE C-HDM-100 SERIES.

TO ATTACH C-HDM-204, 205, 214, 215

LINE UP THE MOUNT WITH THE NUTS IN

THE CONSOLE, ATTACH USING 1/4-20

BOLTS. HOLES CAN BE DRILLED AND

THE MOUNT THROUGH BOLTED IF

NECESSARY.

TO MOUNT C-HDM-212, 213, 216, 217,

HOLES MUST BE DRILLED AND THE

MOUNT THROUGH BOLTED USING THE

HARDWARE PROVIDED.

SEE NOTES FOR DRILLING

1/4-20 x1/2" LG

1/4" SERRATED WASHER

C-HDM-103- see FIG. 4

C-HDM-104- see FIG. 2

C-HDM-105- see FIG. 2

C-HDM-106- see FIG. 3

C-HDM-107- see FIG. 3

C-HDM-109- see FIG. 2

C-HDM-121- see FIG. 2

C-HDM-124- see IND. INSTALL

C-HDM-131- see IND. INSTALL

C-HDM-133- see IND. INSTALL

C-HDM-134- see IND. INSTALL

C-HDM-135- see IND. INSTALL

STEP 1 C-HDM-100's INSTALLATION INSTRUCTIONS

VEHICLE PASSENGER SIDE MOUNTING BASE

INSPECT PARTS RECEIVED TO MAKE SURE YOU HAVE THE RIGHT BRACKETS FOR THE SPECIFIC VEHICLE.

REMOVE ALL PLASTIC END CAPS COVERING THE SEAT BOLTS, IF APPLICABLE.

REMOVE FRONT SEATBOLTS, IN SOME CASES REMOVING OR LOOSENING REAR SEATBOLTS WILL EASE

THE INSTALLATION PROCESS. KEEP THE SEATBOLTS FOR RE-INSTALLATION. ON VAN HDMS THE LEFT SIDE

FRONT & REAR BOLTS ON THE PASSENGER SEAT SHOULD BE REMOVED ( HDM MOUNT ATTACHES TO

THE SIDE SEAT BOLTS).

IF OFFSET MOUNT IS SUPPLIED, IT'S RECOMMENDED TO INSTALL THIS AS THE LAST PROCESS. (SEE STEP 2)

SEE THE RECOMMENDED INSTALL GUIDELINES LISTED BELOW TO IDENTIFY WHICH IS BEST FOR YOUR

INSTALLATION. IF THE HDM BASE IS NOT LISTED IT EITHER HAS ITS OWN SPECIFIC INSTRUCTION OR

FOLLOWS THE SAME PROCESS AS FIGURE 1.

VISIT US AT www.havis.com TO SEE PICTURES OF INDIVIDUALLY INSTALLED PRODUCTS.

FOR VEHICLE MOUNTING THAT REQUIRES DRILLING

INSPECT ALL AREAS BEFORE DOING ANY DRILLING

ENSURE NO SERIOUS DAMAGE HAPPENS TO THE

VEHICLE.

SECURE THE MOUNT WITH SUPPLIED HARDWARE KIT.

(FIG. 5) C-HDM-204 SHOWN

STANDARD NO HOLES DRILLED

CONSOLE MOUNTING

75 JACKSONVILLE RD,

WARMINSTER, PA. 18974

1-800-524-9900

SIZE

TITLE:

DWG. NO.

REV

C-HDM-100-INST

4/6/10

HAVIS, INC.

INSTALLATION INSTRUCTIONS,

C-HDM-100's MOUNTING BASE
