SPACER
OFFSET MOUNT
BASE
SEAT BOLT
SUPPLIED
WITH
HARDWARE KIT
(FIG. 2) C-HDM-104 SHOWN

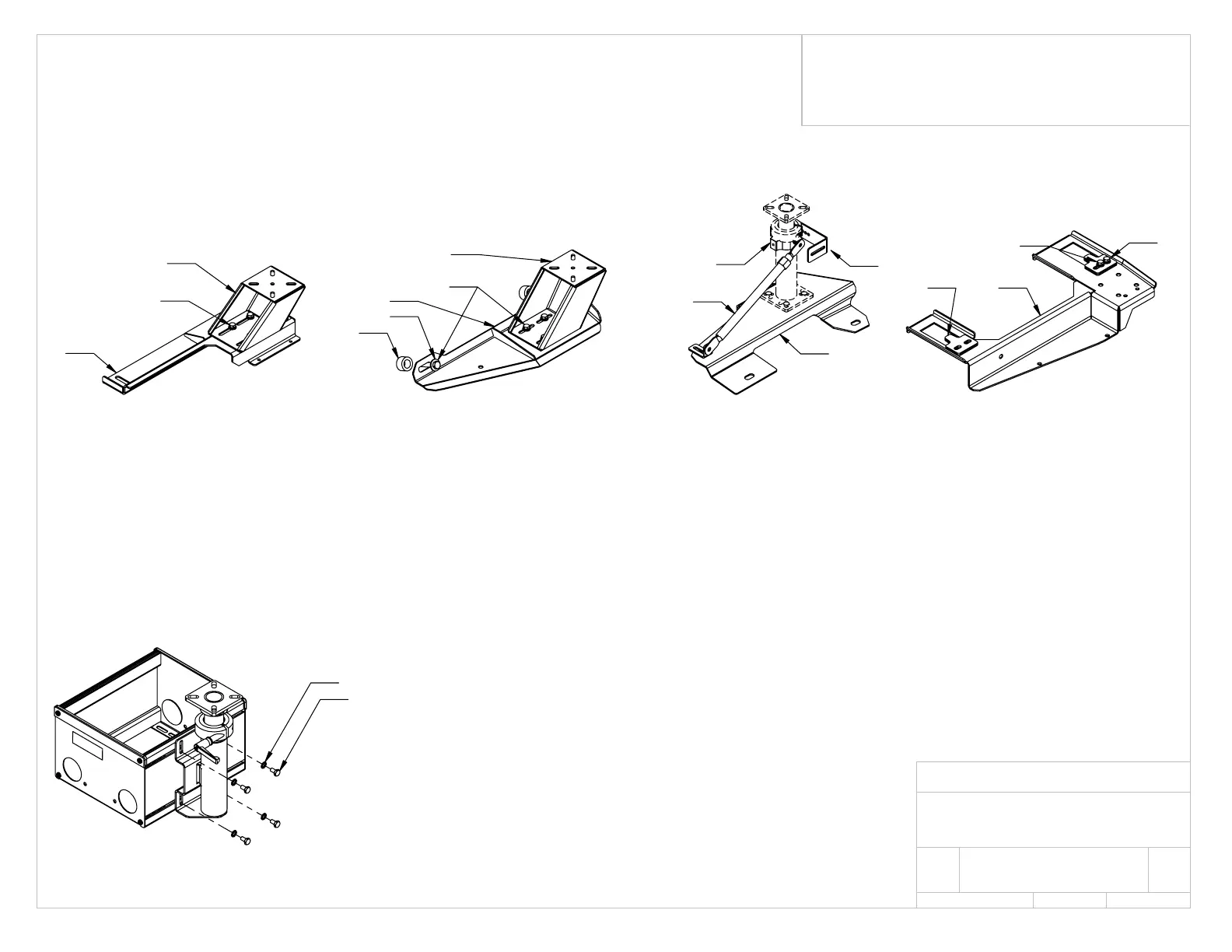

VEHICLE MOUNTING BASE WITH SPACER
AND OFFSET BRACKET
PLACE THE SPACER AT THE
1.
SEATBOLT LOCATIONS TO FILL THE
GAP BETWEEN THE SEAT BRACKET
AND BASE.
(C-HDM-121 ONLY
REQUIRES A SPACER ON THE
DRIVERS SIDE BOLT).
ALIGN BASE MOUNTING HOLES TO
2.
SEATBOLT MOUNTING POINTS.
USING SUPPLIED SEATBOLTS,
INSERT BOLTS PASSING THROUGH
THE SPACER AND SEAT BRACKET
THEN HAND TIGHTEN TO AVOID
STRIPPING THE THREADS.
FULLY TIGHTEN SEAT BOLTS.
3.
(FIG. 4) C-HDM-103 SHOWN
VEHICLE MOUNTING BASE WITH FILLERS
BASE
FILLER
FILLER
SUPPLIED
WITH
HARDWARE KIT
REMOVE REAR SEATBOLTS. TILT THE SEAT
1.
FORWARD WHILE PULLING THE SEAT
TOWARDS THE REAR TO DISENGAGE
THE FRONT SEAT HOOKS.
ALIGN MOUNTING BASE CUT-OUT TO
2.
FRONT SEAT HOOK ENTRY. RETURN THE
SEAT TO ITS ORIGINAL LOCATION
WHILE HAVING THE BASE SANDWICHED
BETWEEN THE SEAT BRACKET AND
VEHICLE FLOOR. PUSH IN THE 2 FILLERS
ON EACH SIDE TO FILL THE GAP
BETWEEN THE SEAT BRACKET AND BASE.
SECURE THE FILLER USING SUPPLIED
HARDWARE. NOTE ONLY ONE KEY
SHAPED FILLER NEEDED ON DRIVERS
SIDE IF HUMP BRACKET IS BEING USED.
REATTACH REAR SEAT BOLTS AND
3.
FULLY TIGHTEN.
(FIG. 1) C-HDM-101 SHOWN
STANDARD NO HOLES DRILLED - VEHICLE
MOUNTING WITH OFFSET BRACKET
BASE
SUPPLIED
WITH
HARDWARE KIT
OFFSET MOUNT
LIFT THE SEAT AND PLACE BASE
1.
BETWEEN SEAT BRACKETS AND
VEHICLE FLOOR, ALIGN MOUNTING
HOLES TO SEATBOLT LOCATIONS. IN
SOME VEHICLES, THE SEATBOLTS ARE
ORIENTATED AT AN ANGLE, IF THIS IS
THE CASE, THE BASE WILL SIT ON TOP
OF THE SEAT BRACKET.
USING EXISTING SEATBOLTS, LOOSELY
2.
ATTACH ALL SEATBOLTS. USE CAUTION
WHEN THREADING THE BOLTS TO
AVOID STRIPPING THE THREAD.
FULLY TIGHTEN SEAT BOLTS.
3.
(FIG. 3) C-HDM-106 SHOWN
VEHICLE MOUNTING BASE (VAN APPLICATION)
BASE
(C-HDM-401)
INCLUDED IN
C-HDM-106/107
HARDWARE KIT
STIFFENER
BRACKET
LIFT THE SEAT AND PLACE BASE
1.
BETWEEN SEAT BRACKETS AND
VEHICLE FLOOR, ALIGN MOUNTING
HOLES TO SEAT BOLT MOUNTING
POINTS. SEE NOTE 3 ABOVE.
USING EXISTING SEATBOLTS, LOOSELY
2.
ATTACH ALL SEATBOLTS. USE CAUTION
WHEN THREADING THE BOLTS TO
AVOID STRIPPING THE THREADS.
ATTACH POLE ASSEMBLY USING
3.
SUPPLIED HARDWARE.
INSTALL SUPPORT ARM AS SHOWN
4.
USING HARDWARE SUPPLIED WITH C-
HDM-401 KIT. ENSURE THE C-HDM-401
DOES NOT CLAMP ABOVE THE
HORIZONTAL SLOT IN THE POLE.
INSTALL STIFFENER BRACKET AS
5.
SHOWN, DRILL AND BOLT TO THE SEAT
IF DESIRED.
FULLY TIGHTEN SEAT BOLTS.
6.
SUPPORT ARM
C-HDM-204, 205, 212, 213, 214, 215,
1.
216, 217 ARE NOT COMPATIBLE WITH
THE C-HDM-100 SERIES.
TO ATTACH C-HDM-204, 205, 214, 215
2.
LINE UP THE MOUNT WITH THE NUTS IN
THE CONSOLE, ATTACH USING 1/4-20
BOLTS. HOLES CAN BE DRILLED AND
THE MOUNT THROUGH BOLTED IF
NECESSARY.
TO MOUNT C-HDM-212, 213, 216, 217,
3.
HOLES MUST BE DRILLED AND THE
MOUNT THROUGH BOLTED USING THE
HARDWARE PROVIDED.
SEE NOTES FOR DRILLING
4.
1/4-20 x1/2" LG
1/4" SERRATED WASHER
C-HDM-103- see FIG. 4
C-HDM-104- see FIG. 2
C-HDM-105- see FIG. 2
C-HDM-106- see FIG. 3
C-HDM-107- see FIG. 3
C-HDM-109- see FIG. 2
C-HDM-121- see FIG. 2
C-HDM-124- see IND. INSTALL
C-HDM-131- see IND. INSTALL
C-HDM-133- see IND. INSTALL
C-HDM-134- see IND. INSTALL
C-HDM-135- see IND. INSTALL
STEP 1 C-HDM-100's INSTALLATION INSTRUCTIONS
VEHICLE PASSENGER SIDE MOUNTING BASE
INSPECT PARTS RECEIVED TO MAKE SURE YOU HAVE THE RIGHT BRACKETS FOR THE SPECIFIC VEHICLE.
1.
REMOVE ALL PLASTIC END CAPS COVERING THE SEAT BOLTS, IF APPLICABLE.
2.
REMOVE FRONT SEATBOLTS, IN SOME CASES REMOVING OR LOOSENING REAR SEATBOLTS WILL EASE
3.
THE INSTALLATION PROCESS. KEEP THE SEATBOLTS FOR RE-INSTALLATION. ON VAN HDMS THE LEFT SIDE
FRONT & REAR BOLTS ON THE PASSENGER SEAT SHOULD BE REMOVED ( HDM MOUNT ATTACHES TO
THE SIDE SEAT BOLTS).
IF OFFSET MOUNT IS SUPPLIED, IT'S RECOMMENDED TO INSTALL THIS AS THE LAST PROCESS. (SEE STEP 2)
4.
SEE THE RECOMMENDED INSTALL GUIDELINES LISTED BELOW TO IDENTIFY WHICH IS BEST FOR YOUR
5.
INSTALLATION. IF THE HDM BASE IS NOT LISTED IT EITHER HAS ITS OWN SPECIFIC INSTRUCTION OR
FOLLOWS THE SAME PROCESS AS FIGURE 1.
VISIT US AT www.havis.com TO SEE PICTURES OF INDIVIDUALLY INSTALLED PRODUCTS.
6.
FOR VEHICLE MOUNTING THAT REQUIRES DRILLING
INSPECT ALL AREAS BEFORE DOING ANY DRILLING
1.
ENSURE NO SERIOUS DAMAGE HAPPENS TO THE
VEHICLE.
SECURE THE MOUNT WITH SUPPLIED HARDWARE KIT.
2.
(FIG. 5) C-HDM-204 SHOWN
STANDARD NO HOLES DRILLED
CONSOLE MOUNTING
75 JACKSONVILLE RD,
WARMINSTER, PA. 18974
1-800-524-9900
SIZE
TITLE:
DWG. NO.
REV
A
C-HDM-100-INST
4/6/10
HAVIS, INC.
INSTALLATION INSTRUCTIONS,
C-HDM-100's MOUNTING BASE
A-
GUIDE RING BUSHING REMOVAL
WE STRONGLY RECOMMEND NOT TO REMOVE THE
GUIDE RING BUSHING, BUT IF REMOVAL OF INNER POLE
IS DESIRED - FOLLOW THIS SIMPLE REMOVAL
INSTRUCTION
INSERT MAXIMUM 1" DIAMETER OBJECT WITH
1.
SUFFICIENT LENGTH AND DROP INSIDE INNER POLE.
MAKE SURE NOTHING PREVENTS GUIDE RING
2.
BUSHING FROM BEING EJECTED UNDERNEATH. HIT
WITH A HAMMER TO FORCE THE GUIDE RING
BUSHING OUT.
HAMMER
7/8" - 1"
DIAMETER
OBJECT
SPIDER MUST BE
BELOW THIS SLOT
ON THE OUTER POLE
B -
INSTALL SPIDER COLLAR (OPTIONAL
COMES WITH C-HDM-401 & 403)
IF MOUNTING THE SPIDER COLLAR TO THE INNER
1.
POLE USE CM003406 REDUCING BUSHING. SPREAD
AND SNAP OVER THE INNER POLE.
LOOSELY ATTACH SPIDER COLLAR TO THE OUTER
2.
POLE OR CM003406. DO NOT MOUNT SPIDER
COLLAR ABOVE OUTER POLE HORIZONTAL CUT.
SUPPORT ARM
(OPTIONAL)
C -
INSTALL OPTIONAL C-HDM-416
IF MOUNTING C-HDM-416 TO THE INNER POLE USE
1.
CM003406. SPREAD THE PIECE AND IT SHOULD SNAP
OVER THE INNER POLE.
ATTACH C-PM-101 TO CLAMP ASSEMBLY USING
2.
LONG CARRIAGE BOLTS INSERTED THROUGH THE
PRINTER AND ONE PIECE OF EXTRUSION.
ATTACH POLE CLAMP TO THE OUTER POLE OR
3.
CM003406. AFFIX SECOND PIECE OF EXTRUSION
AROUND POLE AND LOOSELY TIGHTEN THE
HARDWARE. DO NOT MOUNT CLAMP ABOVE
OUTER POLE HORIZONTAL CUT.
C-HDM-416
C-PM-101
SOLD SEPARATELY
E -
INSTALL C-HDM-409 OPTIONAL
& COLLAR CLAMP ALIGNMENT
THIS CAN BE DONE EITHER AT THIS POINT OR ONCE
1.
THE C-HDM-100 SERIES BASE IS ALREADY IN THE
VEHICLE. YOU WILL NEED THE OFFSET THAT WAS
WIITH THE C-HDM-100 BASE IF APPLICABLE.
DECIDE ON THE ORIENTATION OF THE C-HDM-409.
2.
ENSURING THAT IF THE HANDLE VERSION OF THE
POLE IS BEING USED THE TWO SLOTS ARE NO MORE
THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE
POLE TO THE CORRECT POSITION.
IF NO HANDLE IS BEING USED ENSURE THE OUTER
3.
POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.
TIGHTEN ALL THE HARDWARE.
4.
F -
INSTALL C-HDM-410-412 OPTIONAL
THIS CAN BE DONE EITHER AT THIS POINT OR ONCE
1.
THE C-HDM-100 SERIES BASE IS ALREADY IN THE
VEHICLE. YOU WILL NEED THE OFFSET THAT WAS
WIITH THE C-HDM-100 BASE IF APPLICABLE.
DECIDE ON THE ORIENTATION OF THE OFFSET.
2.
ENSURING THAT IF THE HANDLE VERSION OF THE
POLE IS BEING USED THE TWO SLOTS ARE NO MORE
THAN 45 DEG APART IF THIS IS THE CASE ROTATE THE
POLE TO THE CORRECT POSITION.
IF NO HANDLE IS BEING USED ENSURE THE OUTER
3.
POLE SLOT AND THE CLAMP COLLAR SLOT LINE UP.
TIGHTEN ALL THE HARDWARE.
4.
THAN 45
NO MORE
D-
INSTALL GAS SHOCK (OPTIONAL)
(SKIP IF GAS SHOCK IS NOT IN USE)
1.
UNSCREW SMALL PLASTIC DISC FROM SHOCK
2.
INSERT GAS SHOCK ASSEMBLY UPWARD FROM
THE BOTTOM OF HDM POLE ASSEMBLY WITH GAS
SHOCK'S ROD FACING DOWNWARD. GAS
SHOCK WILL SANDWICH BETWEEN MOUNTING
BASE C-HDM-100 SERIES (NOT SHOWN) AND
ACTION ADAPTER C-HDM-300 SERIES (NOT
SHOWN).
ONCE GAS SHOCK SITS PROUD OF THE INNER
3.
POLE REATTACH SMALL PLASTIC DISC.
GAS SHOCK
(OPTIONAL)
ASSEMBLY INSTRUCTIONS , HDM
200 SERIES, POLE ASSEMBLY
STEP 2 HEAVY DUTY MOUNT
POLE PREPARATION INSTRUCTIONS
CM003406 REDUCING
BUSHING IS NECESSARY
IF MOUNTING TO
THE INNER POLE.
USE ONLY ON FIXED
HEIGHT POLES.
75 JACKSONVILLE RD,
WARMINSTER, PA. 18974
1-800-524-9900
SIZE
TITLE:
DWG. NO.
REV
A
C-HDM-200-INST
4/6/10
HAVIS, INC.
