4X SCREWS

4X M4 X 12MM LONG SCREWS

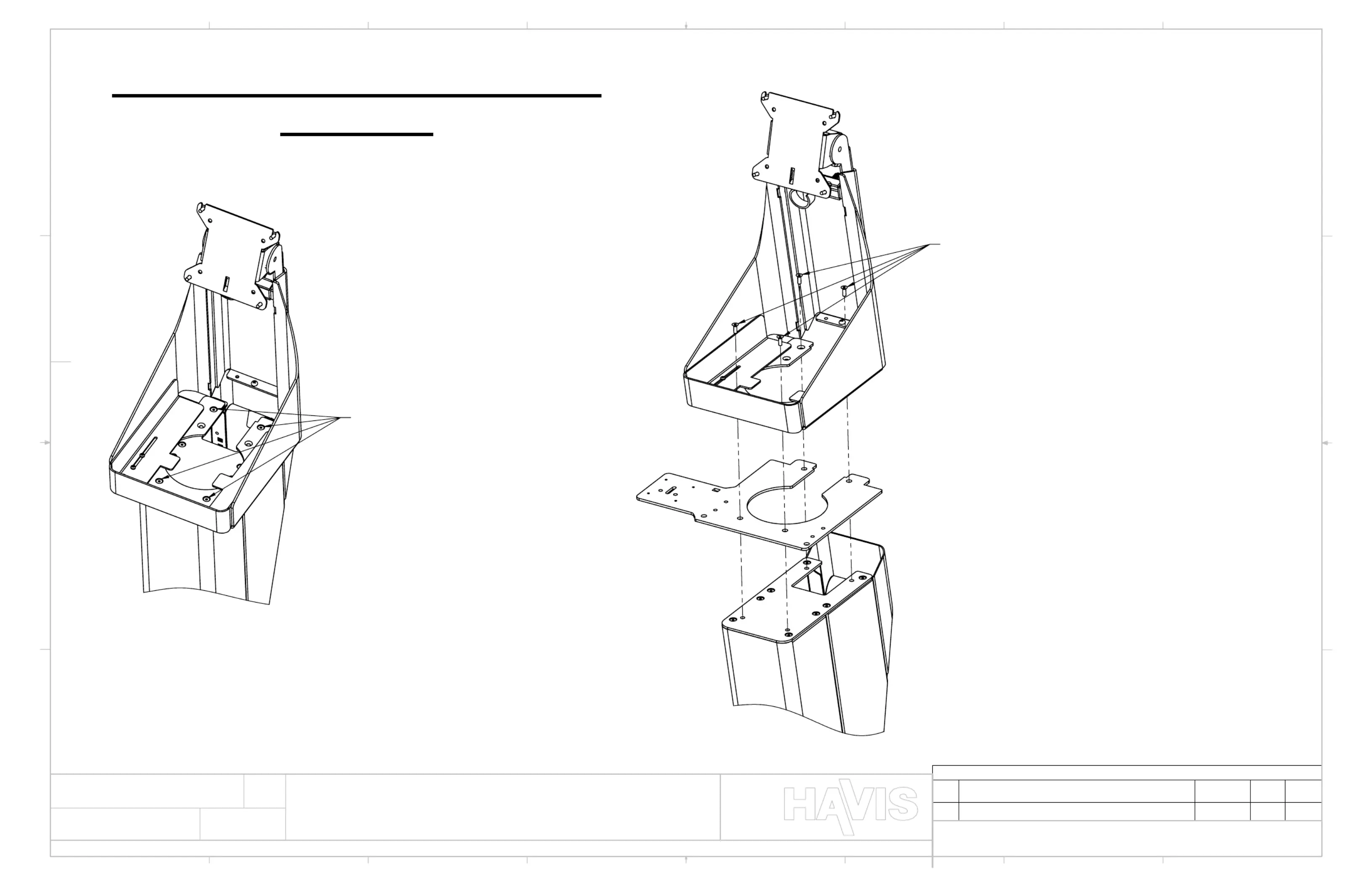

ASSEMBLY STEPS:

1. REMOVE 4X SCREWS TO DISCONNECT

SC-1000 HEAD UNIT FROM PEDESTAL.

ASSEMBLY STEPS:

2. PLACE SCANNER PLATE BETWEEN HEAD UNIT

AND PEDESTAL; MAKING SURE HOLES IN

SCANNER PLATE ARE ALIGNED WITH HOLES IN

HEAD UNIT AND PEDESTAL.

3. RE-ATTACH HEAD UNIT TO PEDESTAL WITH

4X M4 X 12MM LONG SCREWS PROVIDED

WITH SCANNER PLATE.

INSTALLATION INSTRUCTIONS

(SHEET 1)

REVISIONS

REV

DESCRIPTION

DATE

CHK'D

11/20/2023

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.

DRAWN

DATE

TITLE

DWG. NO.

REV.

SHEET 1 OF 2

CUSTOMER INSTRUCTIONS

3/27/2023

S. YANG

SC-1000-ACC-14

SC-1000

UNIVERSAL HANDHELD SCANNER MOUNT,

SELF-CHECKOUT ACCESSORY,

SCANNER HOLSTER

4X M3 X 4MM LONG SCREWS

BASE ADAPTER

(INCLUDED WITH DATALOGIC GRYPHON

WIRELESS SCANNER BASE)

4X M3 X 4MM LONG SCREWS

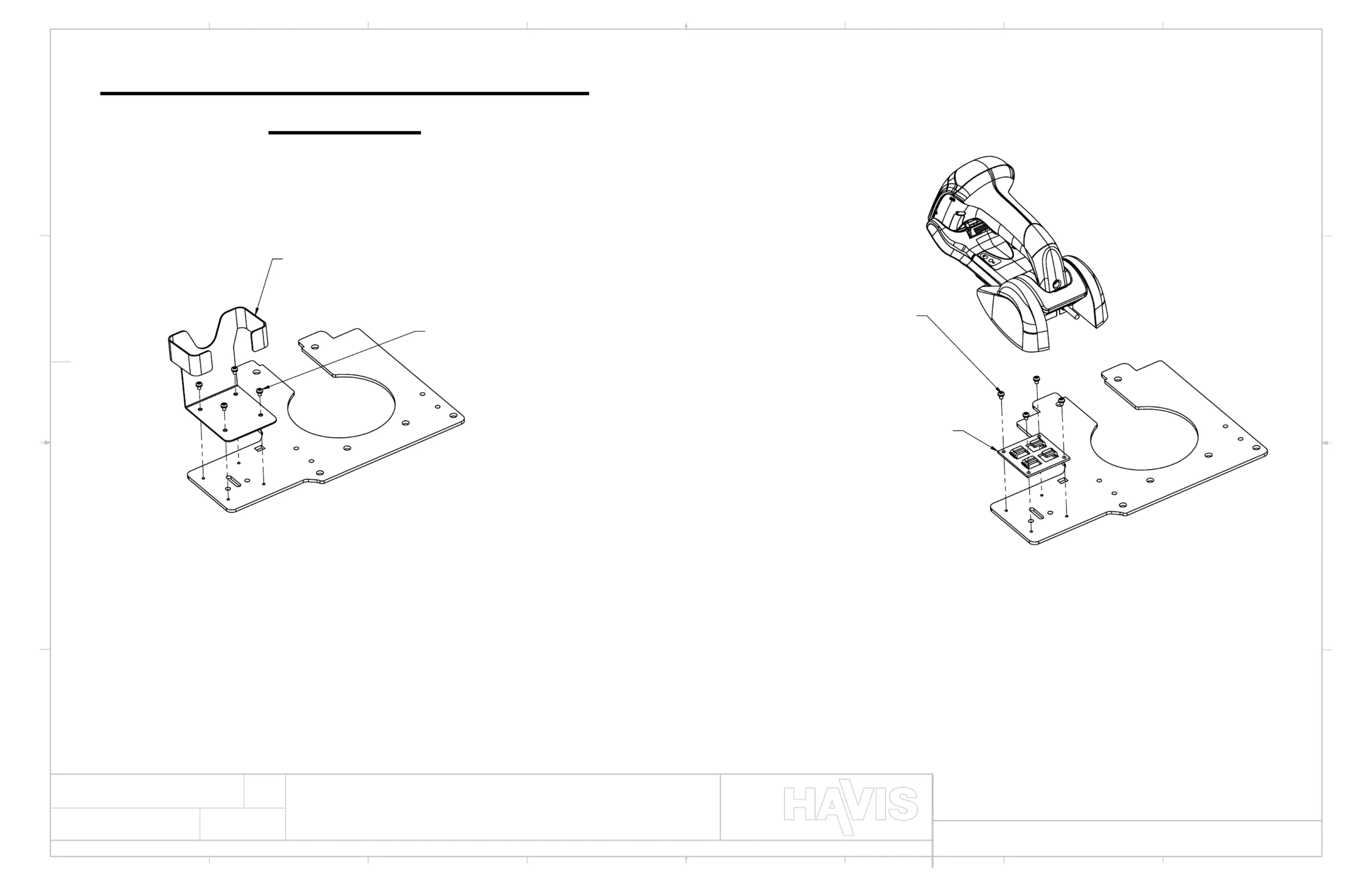

ASSEMBLY STEPS:

4A. ATTACH SCANNER HOLSTER TO SCANNER

PLATE WITH 4X M3 X 4MM LONG SCREWS.

ASSEMBLY STEPS:

4B. ATTACH BASE ADAPTER TO SCANNER

PLATE WITH 4X M3 X 4MM LONG SCREWS.

INSTALLATION INSTRUCTIONS

(SHEET 2)

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.

DRAWN

DATE

TITLE

DWG. NO.

REV.

SHEET 2 OF 2

CUSTOMER INSTRUCTIONS

3/27/2023

S. YANG

SC-1000-ACC-14

SC-1000

UNIVERSAL HANDHELD SCANNER MOUNT,
