Handmade in Germany

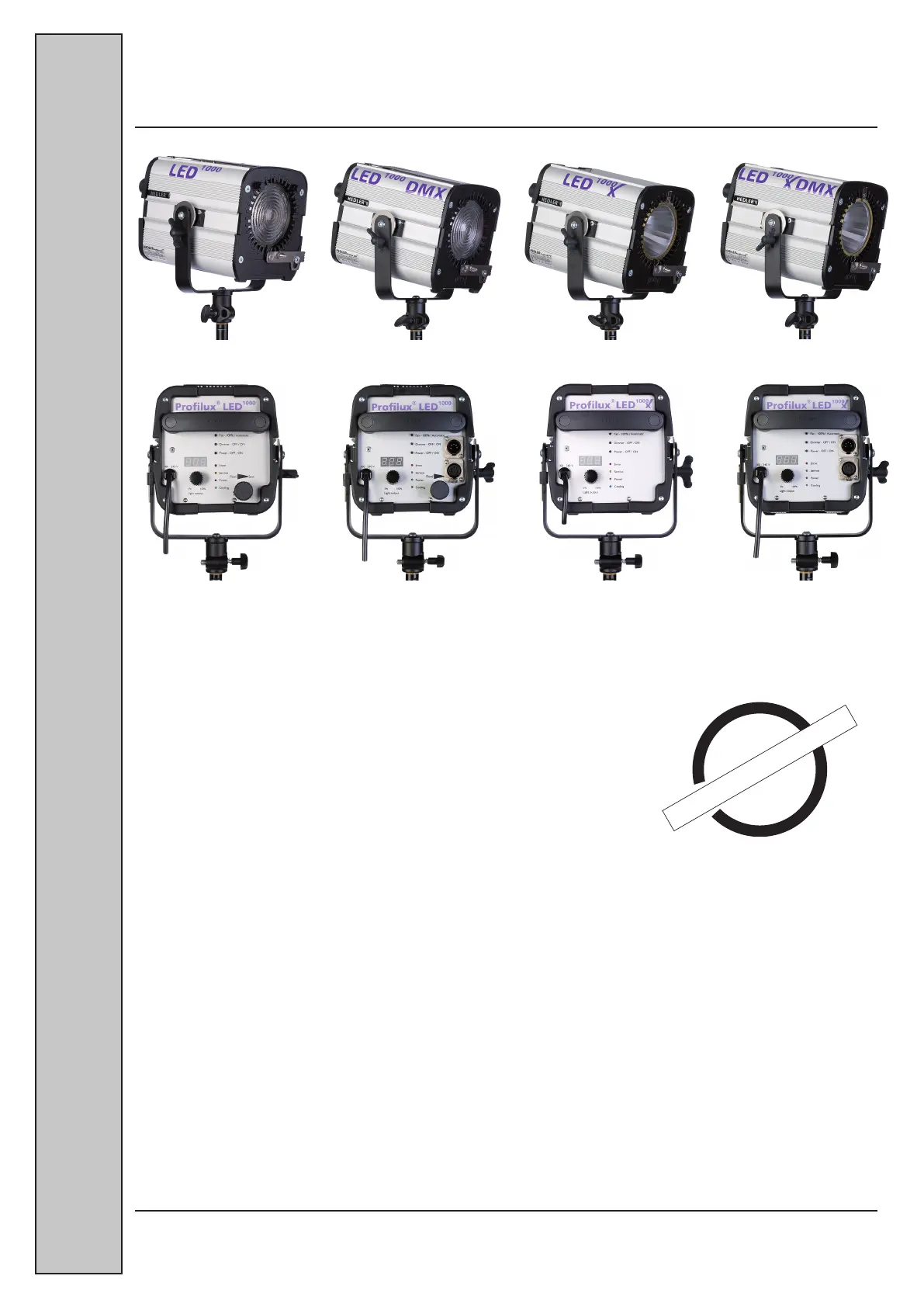

HEDLER Pro lux
®
LED
1000
(DMX) and HEDLER Pro lux
®
LED
1000
x (DMX) operation manual.
Thank you for choosing a Hedler light unit of the HEDLER Pro lux
®
LED
1000
range and your con dence
in the Hedler light system. Please, read the following technical informations and the Hedler safety
instructions carefully before using the light unit.
Codes are given in < brackets >.
TECHNICAL DESCRIPTION
Light units of the HEDLER LED range are designed for professional use, they are assembled by applying precision methods and tested individually
for function and quality. The focusable daylight HEDLER Pro lux
®
LED
1000
(DMX) light units as well as the daylight HEDLER Pro lux
®
LED
1000
x
(DMX) light units are provided with an integrated U-bracket and a friction brake and a 5/8” Quick-Lock light stand attachment. After loosening
the hex key screws by approx. 2 turns, the U-bracket can be moved back and forth in its keyway for gravity adjustment and it is turnable for
right and left hand use.
The light units of the HEDLER Pro lux
®
LED
1000
range are designed for AC use from 110 - 230 V (with automatic mains voltage recognition) and
50 / 60 Hz and are equipped with a LED Softstart feature. They use one 185 W highpower single cell LED and generate a icker-free light @
approx. 5600 K and a CRI > 95. They have an extremely quiet cooling. It can be used in automatic mode or can be switched manually to 100%.
Besides they are equipped with a special active LED fan cooling and an integrated safety switch-off.
At their front sides the aluminium housings hold a Fresnel lens (HEDLER Pro lux
®
LED
1000
(DMX)) or a safety glass (HEDLER Pro lux
®
LED
1000
x
(DMX)) and the QuickFit adapter (compatible with the Hedler Uni-Adapt system) for re ectors. The light units of the HEDLER Pro lux
®
LED
1000
range can be equipped with all the latest Hedler re ectors and softboxes optionally. Because of the QuickFit adapter attaching a re ector or
softbox is extremely comfortable: Interchangeable re ectors with bayonet ring can be attached in the following way: place the rim of the ring into
the guide grooves of the upper studs and the round opening over the cone-shaped bolt, and lock it by a turn to the left. To attach the rotatable
4-Leaf barndoors or a MaxiSoft folding re ector, place the rim of the ring into the guide grooves of the upper studs, and then push the complete
re ector towards the QuickFit´s cone-shaped bolt until the ring locks in the bolt´s groove. Detach the re ector by lifting the QuickFit´s handle,
moving the lower side of the re ector away from the light unit´s housing, and then lifting the re ector´s ring out of the guide grooves of the
upper studs.
The focusing option of the light units HEDLER Pro lux
®
LED
1000
and HEDLER Pro lux
®
LED
1000
DMX allows to adjust the light beam from spot
up to  ood light characteristic. Simply turn the focusing knob located at the back of the housing and the size of the light beams diameter can be
adjusted precisely to your lighting needs or ideas - intuitively.
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail info@hedler.com
Profilux
®
LED
1000
(DMX) / Profilux
®
LED
1000
x (DMX)
HEDLER
®
Systemlicht
< 5056 >
HEDLER Pro lux
®
LED
1000
< 5057 >
HEDLER Pro lux
®
LED
1000
DMX
< 5058 >
HEDLER Pro lux
®
LED
1000
x
< 5059 >
HEDLER Pro lux
®
LED
1000
x DMX
OPERATION MANUAL
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail info@hedler.com
Profilux
®
LED
1000
(DMX) / Profilux
®
LED
1000
x (DMX)
TECHNICAL DATA Prolux
®
LED
1000
Type: Prolux
®
LED
1000
Voltage: 110 - 230 V ~ 1,0A 50/60 Hz Power: 185 W LED Risk group: 0-RG
Color: CRI > 95 Kelvin: 5600K Safety class system: I Protection category: IP30
Weight: 3300g Ambient temperature (Ta): -15° - +40° C Surface temperature: 85°C
Light stand attachment: 5/8“ Fresnel lens code: < 6507 > Light unit code: < 5056 >

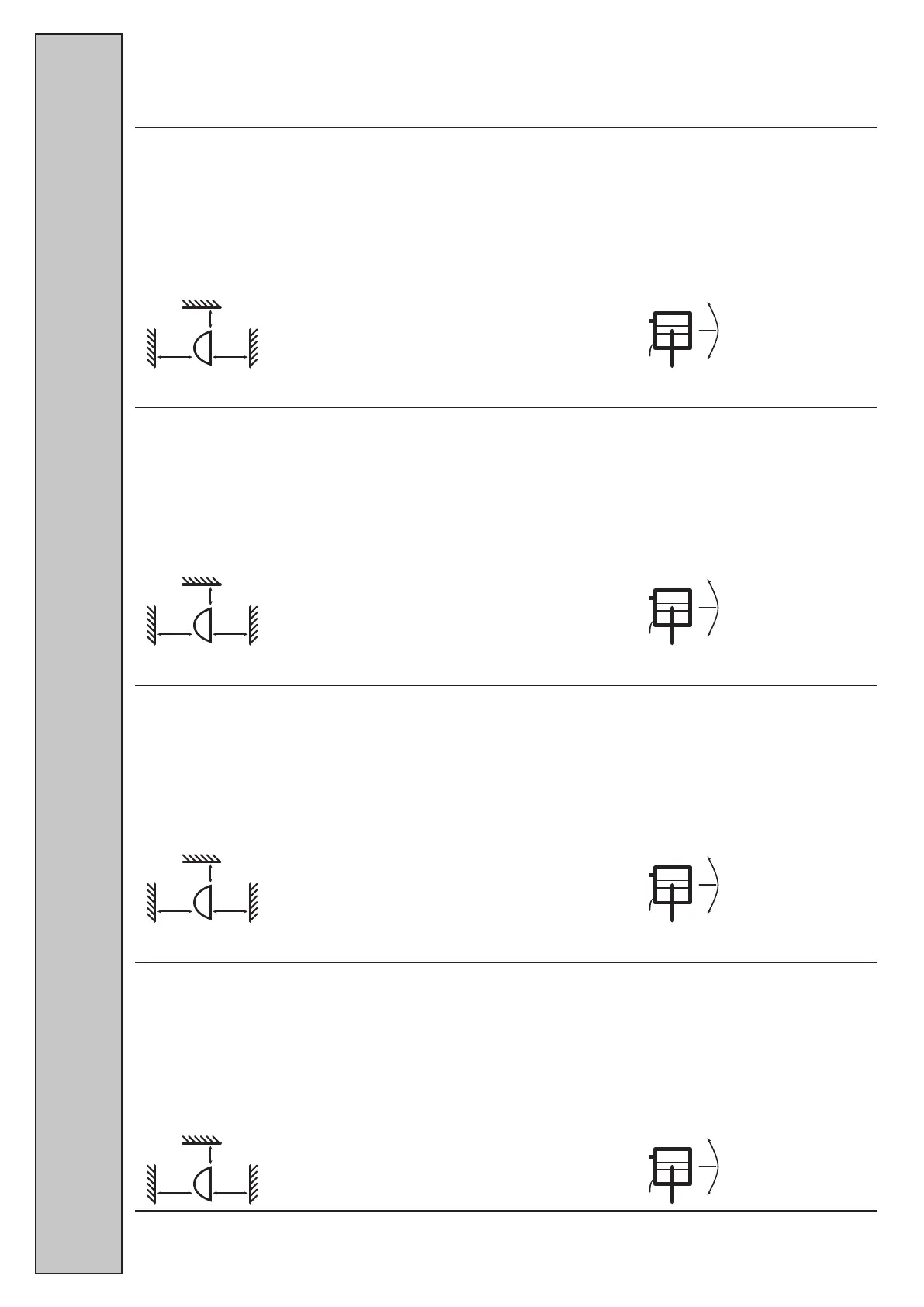

Safety clearance: Position:
Under any circumstances do not under-run the safety Tilt light unit max.
clearances given within the graphic to inammable material! 45° upwards/down-
wards in operation!
HEDLER
®
Systemlicht
max. +45°
max. -45°
0°
top
1m0,5m
0,5m
TECHNICAL DATA Prolux
®
LED
1000
DMX
Type: Prolux
®
LED
1000
DMX Voltage: 110 - 230 V ~ 1,0A 50/60 Hz Power: 185 W LED Risk group: 0-RG
Color: CRI > 95 Kelvin: 5600K Safety class system: I Protection category: IP30
Weight: 3400g Ambient temperature (Ta): -15° - +40° C Surface temperature: 85°C
Light stand attachment: 5/8“ Fresnel lens code: < 6507 > Light unit code: < 5057 >
Safety clearance: Position:
Under any circumstances do not under-run the safety Tilt light unit max.
clearances given within the graphic to inammable material! 45° upwards/down-
wards in operation!
max. +45°
max. -45°
0°
top
1m0,5m
0,5m
TECHNICAL DATA Prolux
®
LED
1000
x
Type: Prolux
®
LED
1000
x Voltage: 110 - 230 V ~ 1,0A 50/60 Hz Power: 185 W LED Risk group: 0-RG
Color: CRI > 95 Kelvin: 5600K Safety class system: I Protection category: IP30
Weight: 3200g Ambient temperature (Ta): -15° - +40° C Surface temperature: 85°C
Light stand attachment: 5/8“ Safety glass code: < 2051 > Light unit code: < 5058 >
Safety clearance: Position:
Under any circumstances do not under-run the safety Tilt light unit max.
clearances given within the graphic to inammable material! 45° upwards/down-
wards in operation!
max. +45°
max. -45°
0°
top
1m0,5m
0,5m
TECHNICAL DATA Prolux
®
LED
1000
x DMX
Type: Prolux
®
LED
1000
x DMX Voltage: 110 - 230 V ~ 1,0A 50/60 Hz Power: 185 W LED Risk group: 0-RG
Color: CRI > 95 Kelvin: 5600K Safety class system: I Protection category: IP30
Weight: 3300g Ambient temperature (Ta): -15° - +40° C Surface temperature: 85°C
Light stand attachment: 5/8“ Safety glass code: < 2051 > Light unit code: < 5059 >
Safety clearance: Position:
Under any circumstances do not under-run the safety Tilt light unit max.
clearances given within the graphic to inammable material! 45° upwards/down-
wards in operation!
max. +45°
max. -45°
0°
top
1m0,5m
0,5m
OPERATION MANUAL
