Side 1/7

HEDLER Profilux

LED

1400

and HEDLER Profilux

LED1400 DMX operation manual.

Please, read the following technical information and the HEDLER safety

instructions carefully before using the light unit.

TECHNICAL DESCRIPTION

Light units of the HEDLER Profilux

LED range are designed for professional use, they are assembled by applying precision methods and

tested individually for function and quality. The focusable daylight HEDLER Profilux

LED

1400

light unit as well as the daylight HEDLER Profilux

LED

1400

DMX light unit is provided with an integrated U-bracket and a friction brake and a 5/8” Quick-Lock light stand attachment. After

loosening the hex key screws by approx. 2 turns, the U-bracket can be moved back and forth in its keyway for gravity adjustment and it is

turnable for right and left hand use.

The light units of the HEDLER Profilux

LED range are designed for AC use from 110 - 230 V (with automatic mains voltage recognition) and

50/60 Hz and are equipped with a LED Softstart feature. They use one 185 W highpower single cell LED and generate a flicker-free light with

approx. 5600 K and a CRI > 95. They have an extremely quiet cooling. It can be used in automatic mode or can be switched manually to 100%.

Besides they are equipped with a special active LED fan cooling and an integrated safety switch-off.

At the front side the aluminium housing holds a Fresnel lens and the QuickFit adapter for a quick and easy compatibility of all HEDLER

lioghtformers. Interchangeable reflectors with bayonet ring can be attached in the following way: Interchangeable reflectors with bayonet ring

can be attached in the following way: place the rim of the ring into the guide grooves of the upper studs and the round opening over the

coneshaped bolt, and lock it by a turn to the left. To attach the rotatable 4-Leaf barndoors or a MaxiSoft folding reflector, place the rim of the ring

into the guide grooves of the upper studs, and then push the complete reflector towards the QuickFit´s cone-shaped bolt until the ring locks in

the bolt´s groove. Detach the reflector by lifting the QuickFit´s handle, moving the lower side of the reflector away from the light unit´s housing,

and then lifting the reflector´s ring out of the guide grooves of the upper studs.

The focusing option of the light units HEDLER Profilux

LED1400 and HEDLER Profilux

LED

1400

DMX allows to adjust the light beam from spot

up to flood light characteristic. Simply turn the focusing knob located at the back of the housing and the size of the light beams diameter can be

adjusted precisely to your lighting needs or ideas - intuitively.

HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com

Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail info@hedler.com

Profilux

LED

1400

/ Profilux

LED

1400

DMX

HEDLER

Systemlicht

OPERATION MANUAL

Handmade in Germany

< 5060 >

HEDLER Profilux

LED

1400

< 5061 >

HEDLER Profilux

LED

1400

DMX

HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com

Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail info@hedler.com

Profilux

LED

1400

/ Profilux

LED

1400

DMX

TECHNICAL DATA Profilux

LED

1400

Type: Profilux

LED

1400

Voltage: 110 - 230 V ~ 1,0A 50/60 Hz Power: 185 W LED Risk group: 0-RG

Color: CRI > 95 Kelvin: 5600K Safety class system: I Protection category: IP30

Weight: 3600g Ambient temperature (Ta): -15° - +40° C Surface temperature: 85°C

Light stand attachment: 5/8“ Fresnel lens code: < 6507 > Light unit code: < 5060 >

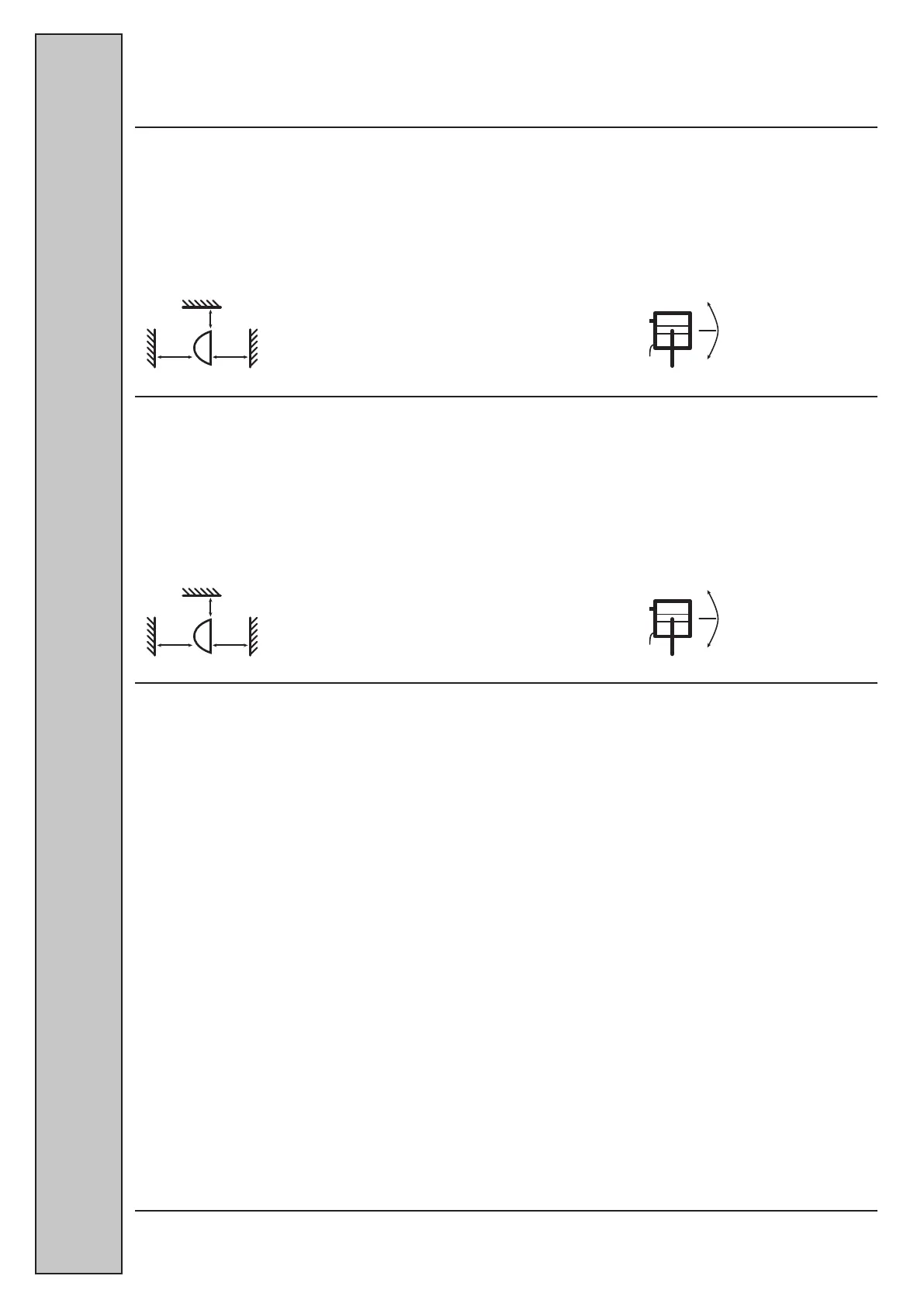

Safety clearance: Position:

Under any circumstances do not under-run the safety Tilt light unit max.

clearances given within the graphic to inflammable material! 45° upwards/down-

wards in operation!

HEDLER

Systemlicht

max. +45°

max. -45°

0°

top

1m0,5m

0,5m

TECHNICAL DATA Profilux

LED

1400

DMX

Type: Profilux

LED

1400

DMX Voltage: 110 - 230 V ~ 1,0A 50/60 Hz Power: 185 W LED Risk group: 0-RG

Color: CRI > 95 Kelvin: 5600K Safety class system: I Protection category: IP30

Weight: 3600g Ambient temperature (Ta): -15° - +40° C Surface temperature: 85°C

Light stand attachment: 5/8“ Fresnel lens code: < 6507 > Light unit code: < 5061 >

Safety clearance: Position:

Under any circumstances do not under-run the safety Tilt light unit max.

clearances given within the graphic to inflammable material! 45° upwards/down-

wards in operation!

max. +45°

max. -45°

0°

top

1m0,5m

0,5m

OPERATION MANUAL

KEY BUTTONS

On the back of the light units of the HEDLER Profilux

LED range there are several key buttons. By pressing them the indicated functions will

be switched alternatingly.

Fan 100% / Automatic

100% - the fan cooling of the light units of the HEDLER Profilux

LED range will be set to full power irrespective of the operating temperature;

Automatic - the power of the fan cooling will be regulated as a function of the operating temperature.

Dimmer OFF / ON

OFF - the continuous light output power is set to maximum (100%), the setting of the rotary potentiometer will be ignored;

ON - dimming function is available by turning the rotary potentiometer.

POWER OFF / ON

OFF - light unit will be switched off or rather into stand-by-mode (if the light unit has to be currentless you have to disconnect the light unit from

the electric power supply);

ON - light unit will be switched on with a Softstart function, the pre-set continuous light output power will be restored.

If not in use, please disconnect the light unit from the power supply completely.

STATUS-LEDs

Additionally you will find on the back of the light units of the HEDLER Profilux

LED range several status LEDs. Their operation mode will be

indicated by their glowing or blinking.

Error

Indicates an operating mode error of the HEDLER Profilux

LED

1400

/ HEDLER Profilux
