ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
H0185
Middle Fixture
Upper Arm
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

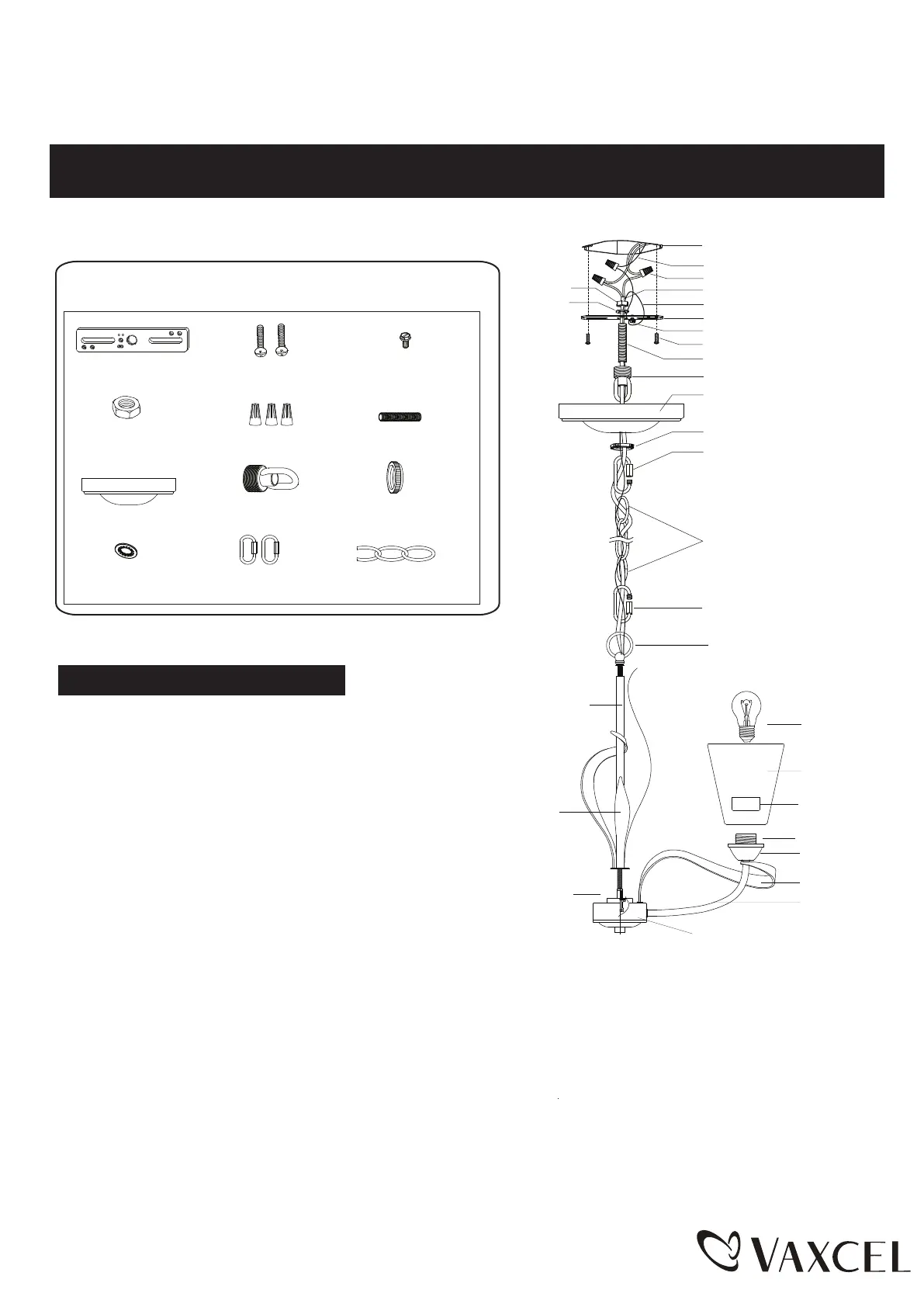

Hardware Package (included):
171030
Turn off the power at fuse or circuit box.
Installation Steps
Loop Lock(K)
Loop Lock(K)
Outlet Box
House Grounding Wire
Wire Nut(E)
Fixture Wire
Fixture Grounding Wire
Mounting Strap(A)
Green Grounding Screw(C)
Mounting Screw(B)
Threaded Pipe(F)
Canopy(G)
Hex Nut(D)
Washer(J)
Collar(I)
Chain(L)
Loop
Top Loop(H)
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Hex Nut (D)
Wire Nut (E)
Canopy (G)
Top Loop (H)
Collar (I)
Threaded Pipe (F)
Washer (J)
Loop Lock (K)
Chain (L)
Main Fixture
Glass Shade
Socket Ring
Middle Arm
InnerArm
Glass Holder
Socket
Bulb type A Max.
60W(not included)
3.
4.
The loop lock tightening in stem.5
.
Secure the loop onto the stem of the middle fixture, thread
fixture
wires through threaded end of loop first.
6.
Connect the chain:
- Determine length of chain needed to achieve desired fixture height. (To remove excess chain section, use pliers
to bend link open.)
- Weave the fixture wires and fixture grounding wire through the chain, collar and canopy.
1. Attach the threaded pipe to the mounting strap, then secure it
with a washer and hex nut.
2.
Attach the mounting strap to the outlet box by using two
mounting screws.
Nipple
Attach threaded pipe to the coupling ,secure middle fixture
on the nipple and locking the spare parts..
7. Connect one end of the chain to the loop using a loop lock.
8. Connect the other end of the chain to top loop by using the other loop lock.
