LOGICONVERTER

HENRY ENGINEERING

503 Key Vista Drive

Sierra Madre, CA 91024

tel: 626.355.3656

fax: 626.355.0077

website: www.henryeng.com

UTILITY CONTROL INTERFACE

DESCRIPTION

LogiConverter is a logic interface unit that facilitates control of studio, AV, and similar equipment. LogiConverter creates

isolated SPST relay outputs from opto-isolated logic-level input signals. Four channels of interface are provided. They can

operate independently (for “start-only” use) or in pairs (for “start-stop” use). Each channel can be user-programmed to

generate momentary or maintained relay closure outputs, with several modes of input control.

INSTALLATION

Connection to the four LogiConverter inputs is via the 15-pin D connector. All inputs are opto-isolated. Input voltages

should be between 5 and 24 VDC. For connection to external contact closures, or equipment that provides “open

collector” (ground-sink) interface, connect the + input to any +12V terminal. Connect the – input to the open collector, and

connect any LogiConverter GND pin to the emitter.

Connection to the LogiConverter relay outputs is via plug-in terminal blocks. Remove about 1/8” of insulation, insert wires

into the connector, and tighten the screws. Be sure that no bare wiring is exposed.

PROGRAMMING

LogiConverter has 24 possible modes of operation….read carefully!

The four input/output channels can operate independently (“start-only”) or in pairs (“start-stop”, or “set-reset”).

If start-stop operation is selected, channels 1 & 2 are paired, and channels 3 & 4 are paired. The various modes are

programmed using the 8 dip switches, SW1 thru SW8, accessible from the front of the unit. They function as follows:

SW1 Selects input mode of Chan. 1 SW5 Selects input mode of Chan. 3

SW2 Selects input mode of Chan. 2 SW6 Selects input mode of Chan. 4

SW3 Selects output mode of Chan. 1 SW7 Selects output mode of Chan. 3

SW4 Selects output mode of Chan. 2 SW8 Selects output mode of Chan. 4

SW1 thru SW4 affect channels 1 & 2; SW5 thru SW8 affect channels 3 & 4 in the same ways.

Each channel has an “input mode” switch. Since channels 1 & 2 can operate as a pair, these switches affect both inputs.

For independent (“start-only”) operation, both SW1 and SW2 must be OFF

. An input at Chan. 1 will produce an output at

Chan. 1. An input at Chan. 2 will produce an output at Chan. 2. There is no interaction.

There are two modes of paired (“start-stop”) operation: non-latching and latching. If non-latching operation is selected, an

input at Chan. 1 will cause an output at Chan. 1. Removing the input from Chan. 1 will cause an output at Chan. 2. This

mode is recommended for maintained (continuous) input signals only. To select this mode, SW1 should be OFF, and

SW2 should be ON. (The Chan. 2 input is not used in this mode.)

If latching operation is programmed, an input at Chan. 1 will cause an output at Chan. 1. Additional inputs to Chan. 1 will

produce no

output; an input to Chan 2 must be applied to reset the latch, which will also cause an output on Chan. 2. To

select this mode, both SW1 and SW2 must be ON. (SW5 and SW6 have the same effects on input channels 3 and 4.)

Each channel has an output mode switch. If SW3 is OFF, the Chan 1. output will be a momentary closure (pulse). If SW3

is ON, the relay closure will be maintained for the duration of the input signal. SW4 affects Chan. 2 in the same way, as

does SW7 for Chan. 3 and SW8 for Chan. 4.

D CONNECTOR PIN-OUTS FOR INPUT WIRING

PIN 1 Input 1, + PIN 7 Input 4, + PIN 13 +12V

PIN 2 Input 1, - PIN 8 Input 4, - PIN 14 GND

PIN 3 Input 2, + PIN 9 +12V PIN 15 +12V

PIN 4 Input 2, - PIN 10 GND

PIN 5 Input 3, + PIN 11 +12V All inputs: 5 to 24 VDC,

PIN 6 Input 3, - PIN 12 GND 200 ms minimum length

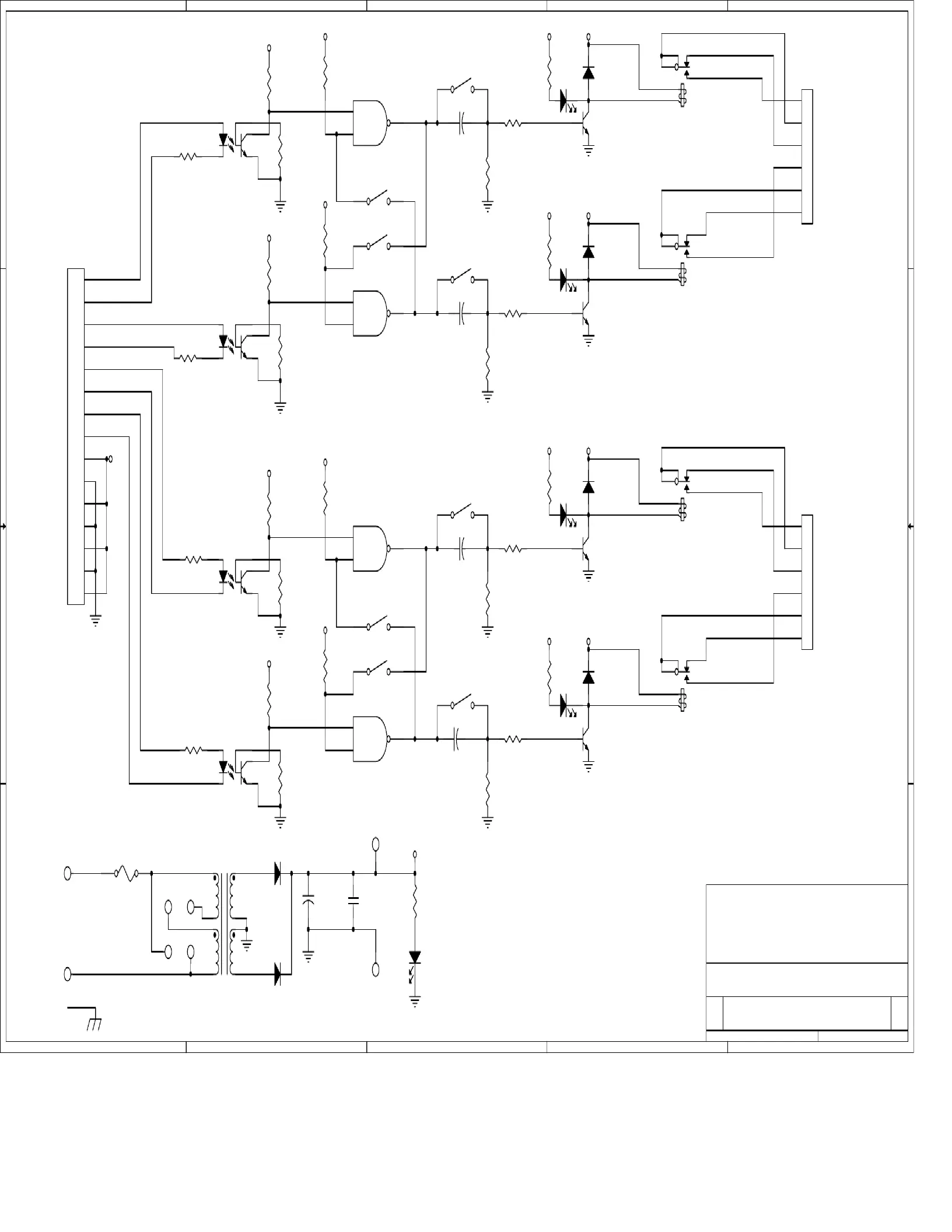

230V
