a emb instruct nsss ly io

1. Find a clear area in which you can work.

2. Unpack ﬁxture and glass from carton.

3. Carefully review instructions prior to assembly.

1. Prepare gem strap for mounting by threading two screws provided into (A) (B)

back of gull wing bracket of gem strap - see .(A) Drawing 1

• Be sure the holes into which the screws are threaded match the spacing of holes (D)

in the ceiling pan - see .(1) Drawings 1 and 2

2. Mount gem strap to junction box , using the two 1” screws not provided.(A) (J) (C)

Make electrical connections from supply wire to ﬁxture lead wires. Refer to instruction

sheet and follow all instructions to make all necessary wiring connections. (I.S. 18)

Then refer back to this sheet to continue installation of this ﬁxture.

1. Hang the ﬁxture by slipping the holes in the ceiling pan over the screws (D) (1) (B)

in the mounting strap - see .(A) Drawing 2

2. Thread on ball knobs to secure ﬁxture to the ceiling.(F)

*** The construction of this ﬁxture will be accomplished by ﬁrst mounting the

mounting strap to the junction box, making all necessary electrical connections,

hanging the ﬁxture from the ceiling, and then installing the glass.

start here

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)

AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING

INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED

ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Drawing 2 - Fixture Mounting

Drawing 1 - Strap Detail

(side view)

gull wing

bracket

Swivel Strap Ceiling Mount

REVISION 1

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon Lake, OH 44012 800.446.5539 / 440.653.5500 hinkleylighting.com

I.S. 18 wiri roun g n onsng g din i st ctiru

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)

AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING

INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED

ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

w t t siring ins ruc ion

Indoor Fixtures

1. Connect positive supply wire (A) (typically black or the smooth, unmarked

side of the two-conductor cord) to positive ﬁxture lead with appropriately (B)

sized twist on connector - see .Drawings 1 or 2

2. Connect negative supply wire (typically white or the ribbed, marked (C)

side of the two-conductor cord) to negative ﬁxture lead .(D)

3. Please refer to the below to complete all grounding instructions

electrical connections.

Outdoor Fixtures

1. Connect positive supply wire (A) (typically black or the smooth unmarked

side of the two-conductor cord) to positive ﬁxture lead with appropriately (B)

sized twist on connector - see . Drawings 2 or 3

2. Connect negative supply wire (typically white or the ribbed, marked (C)

side of the two-conductor cord) to negative ﬁxture lead .(D)

3. Cover open end of connectors with silicone sealant to form a watertight seal.

• If installing a wall mount ﬁxture, use caulk to seal gaps between the ﬁxture

mounting plate (backplate) and the wall. This will help prevent water from

entering the outlet box. If the wall surface is lap siding, use caulk and a

ﬁxture mounting platform specially.

4. Please refer to the below to complete all grounding instructions

electrical connections.

gr r sounding inst uction

Flush Mount Fixtures

For positive grounding in a 3-wire electrical system, fasten the ﬁxture ground

wire (typically copper or green plastic coated) to the ﬁxture mounting strap (E) (1)

with the ground screw - see . (2) Drawing 1

Note: On straps for screw supported ﬁxtures, ﬁrst install the two mounting screws in strap.

Any remaining tapped hole may be used for the ground screw.

Chain Hung Fixtures

Loop ﬁxture ground wire (typically copper or green plastic coated) under the (E)

head of the ground screw on ﬁxture mounting strap and connect to the (2) (1)

loose end of the ﬁxture ground wire directly to the ground wire of the building

system with appropriately sized twist-on connectors - see .Drawing 2

Post-Mount Fixtures

Connect ﬁxture ground wire (typically copper or green plastic coated) to power (E)

supply ground with appropriately sized twist-on connector inside post. Cover open

end of connector with silicone sealant to form a watertight seal - see .Drawing 3

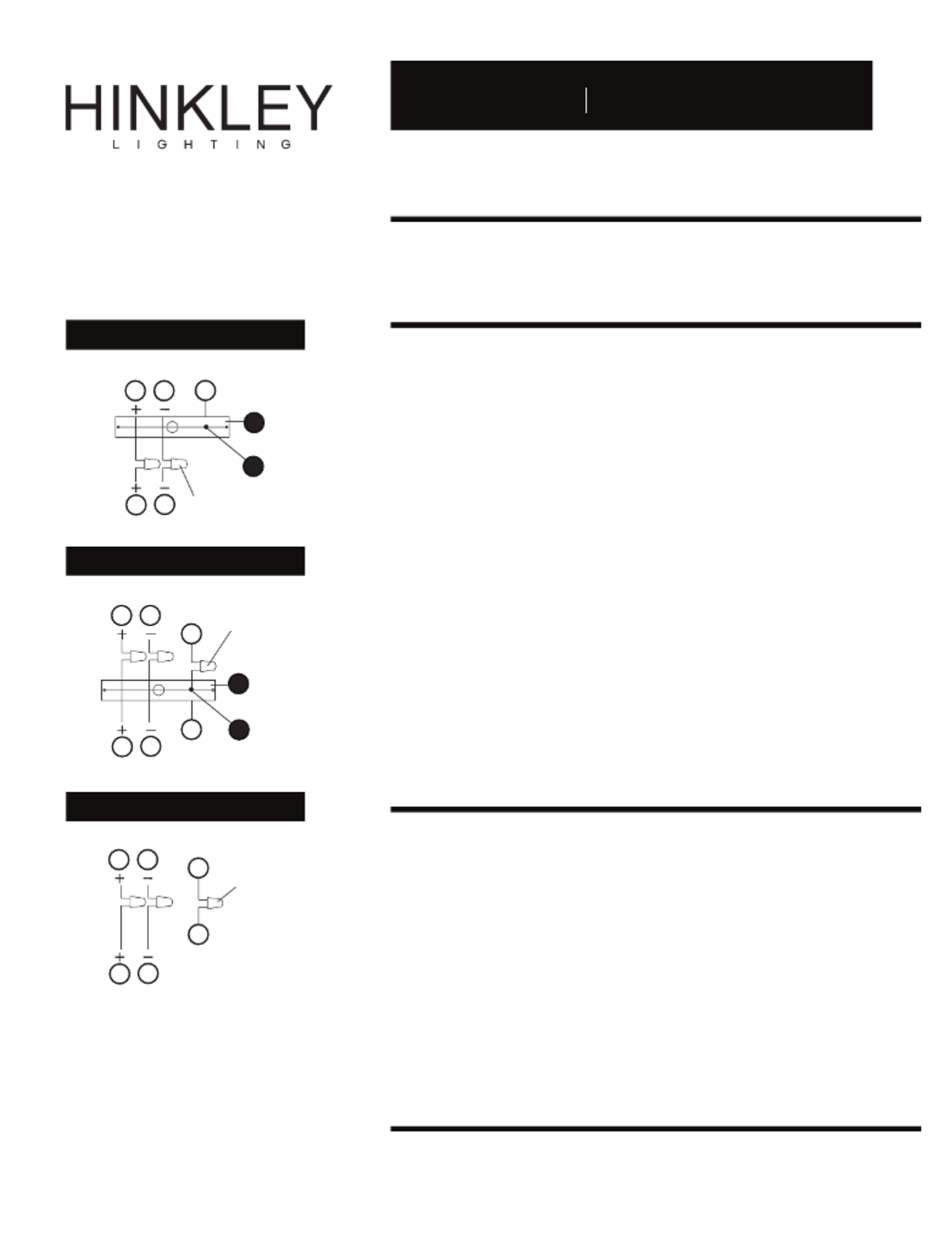

Drawing 1 - Flush Mount

Drawing 2 - Chain Hung

supply wire

ﬁxture leads

twist-on

connectors

Drawing 3 - Post-Mount

twist-on

connectors

A CC

B D

supply wire

ﬁxture leads

A C

B D

supply wire

ﬁxture leads

A C

B D

twist-on

connectors

I.S. 18
