Side 1/2

assembly instructions

Item No. 3140

1. Find a clear area in which you can work.

3. Carefully review instructions prior to assembly.

from the ceiling, and then installing the glass.

star t here

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)

AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING

INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED

ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Drawing 2 - Fixture Mounting

Drawing 1 - Strap Detail

Drawing 3 - Glass Installation

01.01.13

H I N K L E Y L I G H T I N G 33000 Pin Oak Parkway Avon L ake, O H 440 12 800. 446. 5539 / 44 0.6 5 3 .550 0 h ink leyl ighti ng .com

1. Install screws (A) into mounting plate (B) - see Drawing 1.

Be sure the holes into which the screws are threaded mathc the spacing of the holes

2. Attach mounting plate (B) to junction box (J), using screws (G) provided and then

slip supply wires through large center hole.

Make electrical connections from supply wire to the ﬁxture lead wires. Refer to

instruction sheet and follow all instructions to make all necessary wiring (IS18)

connnections. Then refer back to this sheet to continue installation of this ﬁxture.

1. Hang the ﬁxture by slipping screws (A) through holes (C) of canopy

(D) - see Drawing 2.

2. (E) (B)Thread on ball knobs onto end of screws and tighten to secure ﬁxture

to ceiling.

1. To install glass unthread knurled in bracket until glass can be slipped into(2) (1)

place - see .Drawing 3

2. Lamp ﬁxture accordingly at this point.

3. (3) (1) (2) Slip glass into bracket and hand tighten knurled knob to secure glass.

330 00 Pin O ak Parkwa y Avon La k e, OH 4 4012 800 .44 6.55 39 / 440.653 .55 00 hinkl e yl i ghtin g.com

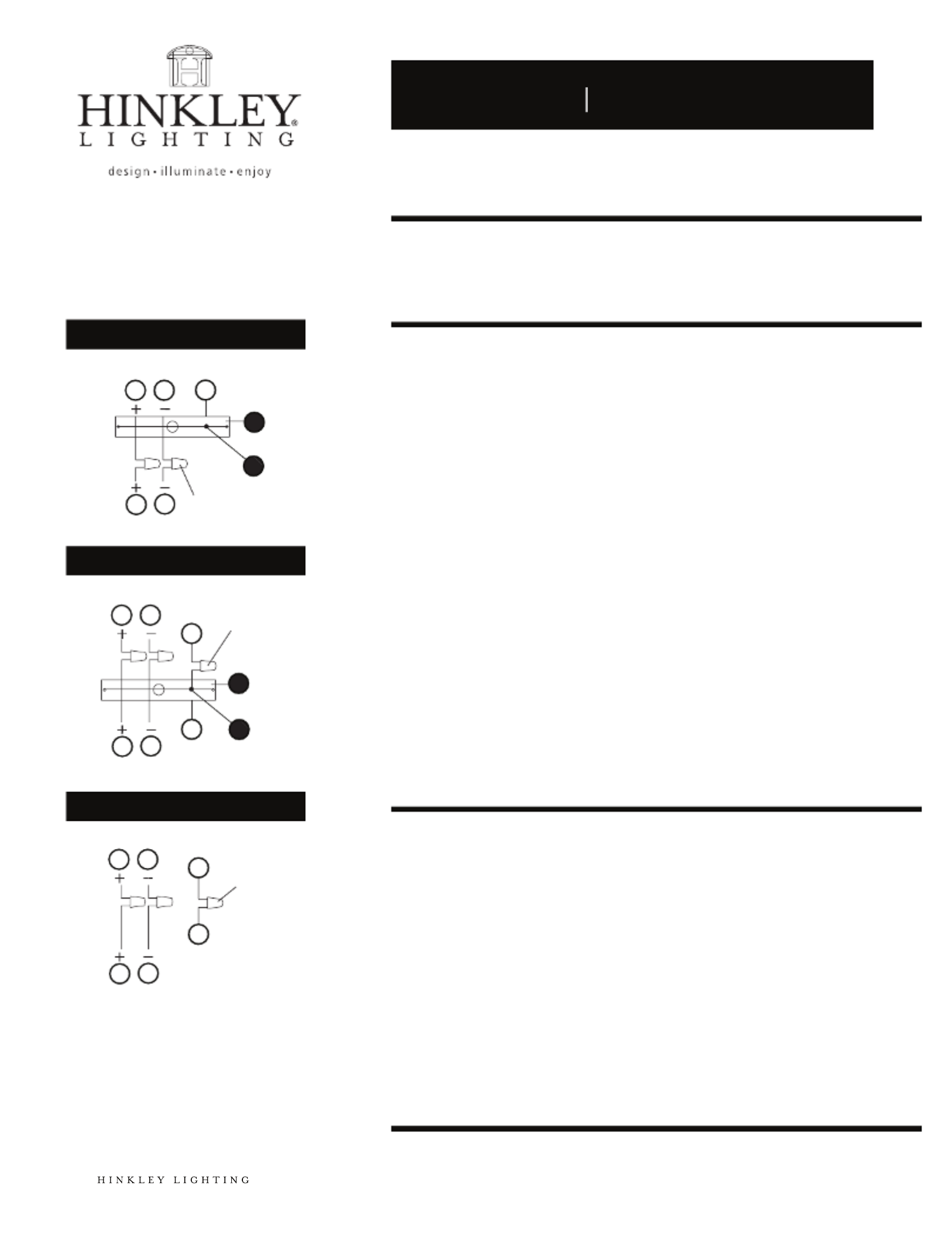

I.S. 18 wiring grounding instructions

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)

AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING

INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED

ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

wiring instructions

Indoor Fixtures

1. Connect positive supply wire (A) (typically black or the smooth, unmarked

side of the two-conductor cord) to positive ﬁxture lead with appropriately (B)

sized twist on connector - see .Drawings 1 or 2

2. Connect negative supply wire (typically white or the ribbed, marked (C)

side of the two-conductor cord) to negative ﬁxture lead .(D)

3. Please refer to the below to complete all grounding instructions

electrical connections.

Outdoor Fixtures

1. Connect positive supply wire (A) (typically black or the smooth unmarked

side of the two-conductor cord) to positive ﬁxture lead with appropriately (B)

sized twist on connector - see . Drawings 2 or 3

2. Connect negative supply wire (typically white or the ribbed, marked (C)

side of the two-conductor cord) to negative ﬁxture lead .(D)

3. Cover open end of connectors with silicone sealant to form a watertight seal.

• If installing a wall mount ﬁxture, use caulk to seal gaps between the ﬁxture

mounting plate (backplate) and the wall. This will help prevent water from

entering the outlet box. If the wall surface is lap siding, use caulk and a

ﬁxture mounting platform specially.

4. Please refer to the below to complete all grounding instructions

electrical connections.

grounding instructions

Flush Mount Fixtures

For positive grounding in a 3-wire electrical system, fasten the ﬁxture ground

wire (typically copper or green plastic coated) to the ﬁxture mounting strap (E) (1)

with the ground screw - see . (2) Drawing 1

Note: On straps for screw supported ﬁxtures, ﬁrst install the two mounting screws in strap.

Any remaining tapped hole may be used for the ground screw.

Chain Hung Fixtures

Loop ﬁxture ground wire (typically copper or green plastic coated) under the (E)

head of the ground screw on ﬁxture mounting strap and connect to the (2) (1)

loose end of the ﬁxture ground wire directly to the ground wire of the building

system with appropriately sized twist-on connectors - see .Drawing 2

Post-Mount Fixtures

Connect ﬁxture ground wire (typically copper or green plastic coated) to power (E)

supply ground with appropriately sized twist-on connector inside post. Cover open

end of connector with silicone sealant to form a watertight seal - see .Drawing 3

Drawing 1 - Flush Mount

Drawing 2 - Chain Hung

supply wire

ﬁxture leads

twist-on

connectors

Drawing 3 - Post-Mount

twist-on

connectors

A CC

B D

supply wire

ﬁxture leads

A C

B D

supply wire

ﬁxture leads

A C

B D

twist-on

connectors

I.S. 18
