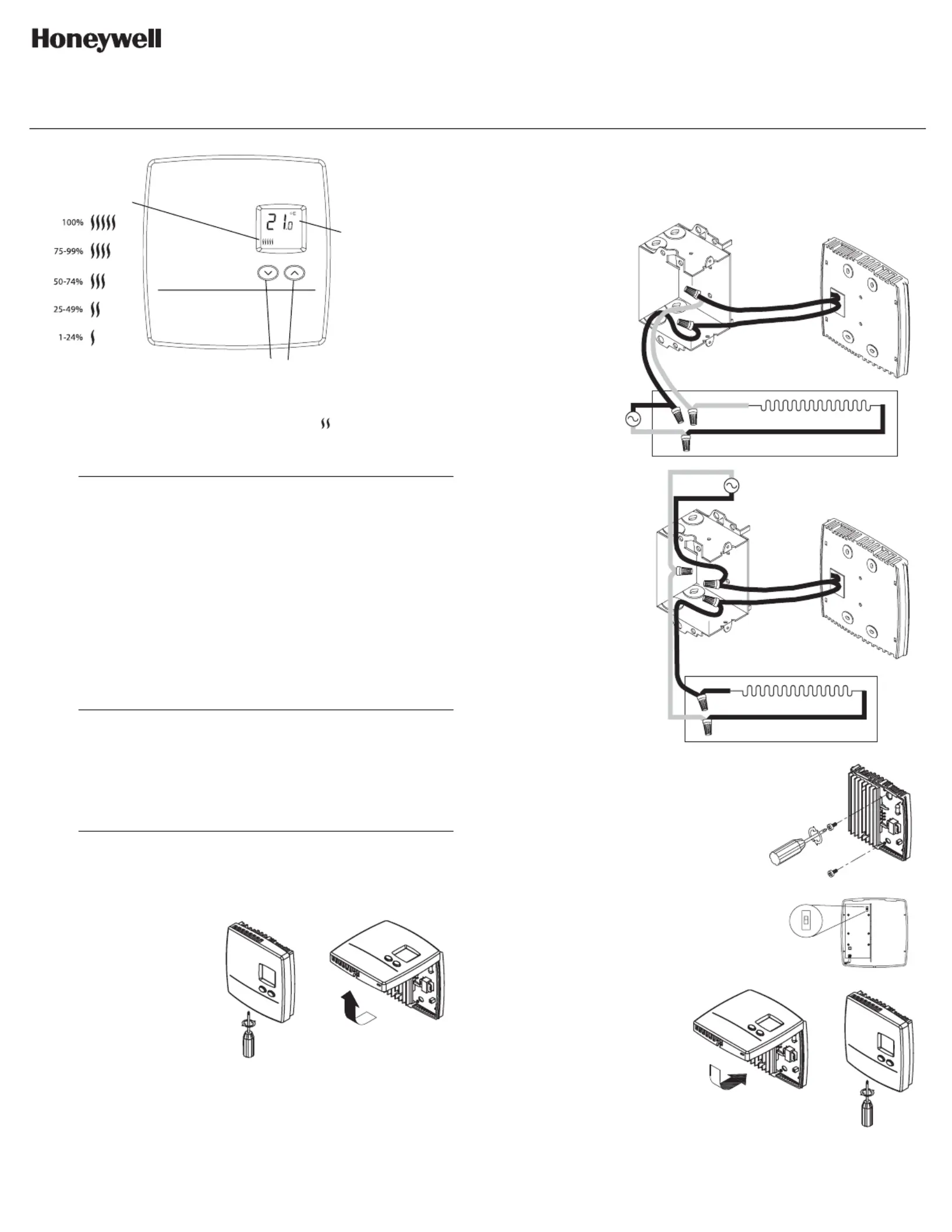

RLV3100 69-1917EF 7/24/06 1/2

The RLV3100 thermostat can be used to control an electric heating

system such as an electric baseboard heater, a radiant ceiling, a

radiant floor, a convector, etc.

The thermostat cannot be used with the following:

• a resistive load under 2 A

• a resistive load over 12.5 A

• systems driven by a contactor or a relay (inductive load)

• fan-forced heating systems

• central heating systems

• One (1) thermostat

• Two (2) 6-32 mounting screws

• Two (2) solderless connectors

TURN OFF POWER OF THE HEATING SYSTEM AT THE MAIN

POWER PANEL TO AVOID ELECTRIC SHOCK.

Loosen the screw

underneath the thermostat

and separate the front plate

from the base plate.

NOTE: The screw cannot be

completely removed.

Connect the thermostat wires to the power and to the load using

solderless connectors for copper wires. The thermostat wires are not

polarized; meaning either wire can be connected to the load or to the

power supply.

NOTE: All cables and connections must comply with local electrical

codes. This thermostat has tinned copper wires for line and load

connections. Special CO/ALR solderless connectors must be used if

these wires will be connected to aluminium conductors.

Mount the back plate to the electrical

box using the provided screws. Insert

the screws through the left or right pair

of mounting holes of the back plate.

Set the switch on the back of the

front plate to °C or °F to select

the temperature display format.

Re-install the front plate of

the thermostat on the base

plate and secure it in place

with the screw underneath

the thermostat.

NOTE: If there is a protective film or sticker on the display, peel it off.

Applications

Supplied Parts

Installation Procedure

Temperature

display

Temperature adjustment buttons

Percentage of

heating time *

* The thermostat displays the percentage of heating time required to

maintain the desired temperature. For example, is displayed when

heating is activated 40 percent of the time.

2-wire Installation

4-wire Installation

RLV3100

User Guide

Digital Non-programmable Thermostat

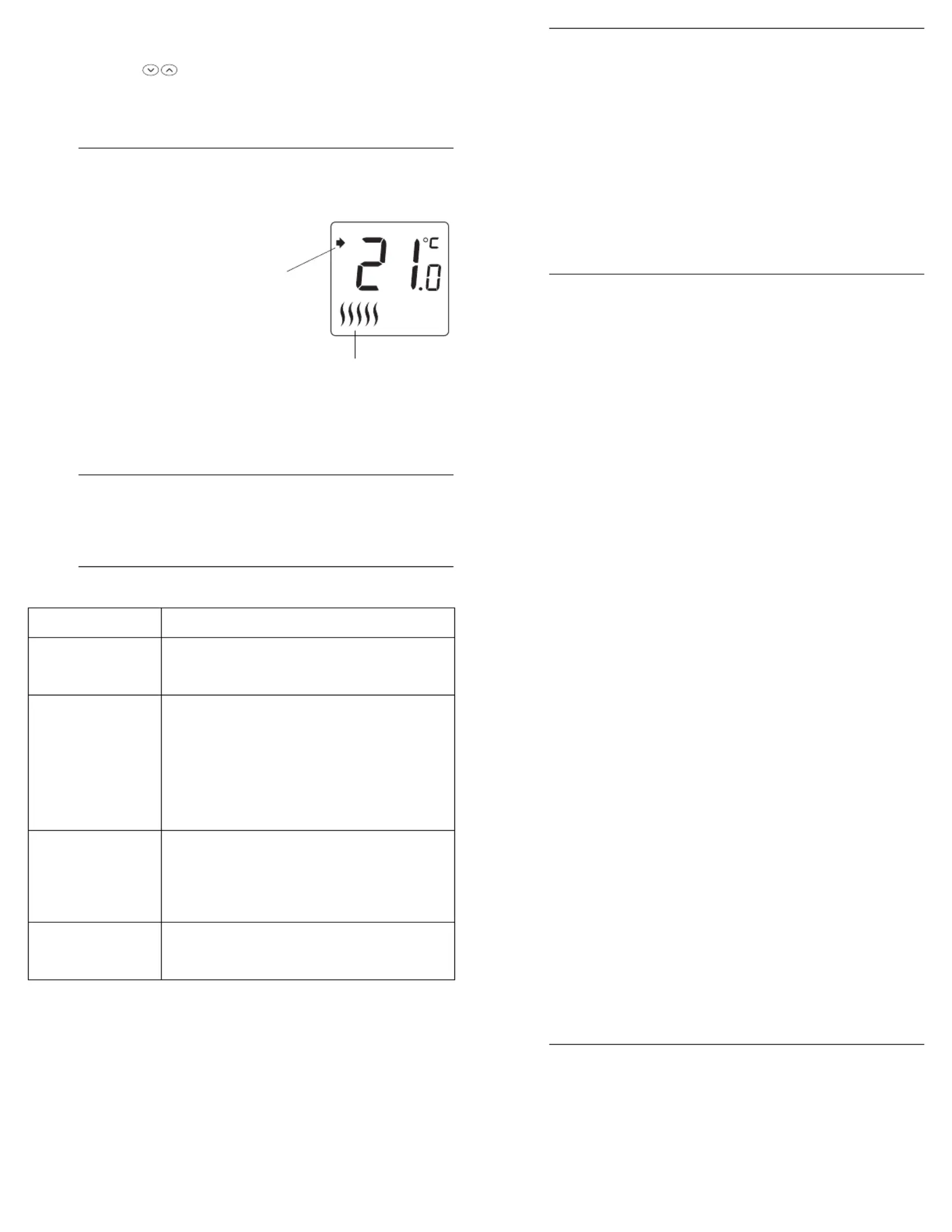

RLV3100 69-1917EF 7/24/06 2/2

Apply power to the heating system. Verify the installation by checking

that the heater can be turned On and Off by raising and lowering the

setpoint using the buttons.

ATTENTION: Keep the thermostat's air vents clean and free from

obstructions at all times.

The thermostat normally displays the actual (measured) temperature.

• To view the set

temperature (setpoint),

press once on either of

the temperature

adjustment buttons.

• To change the setpoint,

press the appropriate

button until the desired

value is displayed.

NOTE: The display is backlit for 10 seconds when either button is

pressed.

The setpoint is stored in non-volatile memory and is not erased when

there is a power outage.

- Supply: 240 VAC, 50/60 Hz

- Minimum load: 500 W (2 A resistive only)

- Maximum load: 3000 W (12.5 A resistive only)

- Display range: 0 to 50°C (32 to 122°F)

- Setpoint range: 5 to 30°C (40 to 85°F)

- Resolution: 0.5°C (1°F)

- Storage: -20 to 50°C (-4 to 120°F)

- Dimensions: 126 x 121 x 31 mm (5.0 x 4.8 x 1.2 inches)

- Approval: c UL us

Honeywell warrants this product, excluding battery, to be free from

defects in the workmanship or materials, under normal use and

service, for a period of one (1) year from the date of purchase by the

consumer. If at any time during the warranty period the product is

determined to be defective or malfunctions, Honeywell shall repair or

replace it (at Honeywell's option).

If the product is defective,

(i) return it, with a bill of sale or other dated proof of purchase, to

the place from which you purchased it, or

(ii) call Honeywell Customer Care at 1-800-468-1502. Customer

Care will make the determination whether the product should be

returned to the following address: Honeywell Return Goods,

Dock 4 MN10-3860, 1885 Douglas Dr N, Golden Valley, MN

55422, or whether a replacement product can be sent to you.

This warranty does not cover removal or reinstallation costs. This

warranty shall not apply if it is shown by Honeywell that the defect or

malfunction was caused by damage which occurred while the

product was in the possession of a consumer.

Honeywell's sole responsibility shall be to repair or replace the

product within the terms stated above. HONEYWELL SHALL NOT

BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND,

INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH

OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER

FAILURE OF THIS PRODUCT. Some states do not allow the

exclusion or limitation of incidental or consequential damages, so this

limitation may not apply to you.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY

HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF

ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, IS HEREBY LIMITED TO THE ONE-YEAR DURATION

OF THIS WARRANTY. Some states do not allow limitations on how

long an implied warranty lasts, so the above limitation may not apply

to you.

This warranty gives you specific legal rights, and you may have other

rights which vary from state to state.

If you have any questions concerning this warranty, please write

Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN

55422 or call 1-800-468-1502. In Canada, write Retail Products

ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive,

Scarborough, Ontario M1V4Z9.

If you have any questions about the operation of your thermostat,

please go to http://yourhome.honeywell.com, or call Honeywell

Customer Care toll-free at 1-800-468-1502.

Temperature Display and Setting

Power Outage

Troubleshooting

PROBLEM SOLUTIONS

Thermostat is hot.

This is normal. Under normal operation, the

thermostat housing can reach a temperature

between 35 °C (95 °F) and 40 °C (104 °F).

Displayed tempera-

ture is wrong.

Correct if any the following conditions

applies:

• The thermostat is exposed to air draft.

• The sticker on the thermostat’s screen

has not been removed.

• The thermostat is located near or above

a heat source such as a light dimmer.

Display disap-

pears and reap-

pears after a few

minutes.

The thermal protection device on the heater

was temporarily opened. This can happen if

the heater is obstructed by furniture or curtain

and has overheated, or if the heater’s thermal

protection device is too sensitive.

Display looks faded

when heating is

activated.

The heating system is less than the required

minimum load. This thermostat cannot be

used below that rating.

Heating power

indicator

Appears

when the

setpoint is

displayed

Specifications

;

Warranty



Customer assistance
