Side 1/3

Warning

Model No.: FCJJ-44

Micro-Fuel cell Science Kit

ASSEMBLY GUIDE

To avoid the risk of property damage, serious injury or

death:

1. Read carefully and fully understand the instructions

before assembling this kit.

2. Keep small children and animals away, because this

kit contains small parts that could be swallowed.

3. This kit is intended only for use by persons 14 years old

and up, and only under the supervision of adults who

have read and understood the instructions in this user

manual.

4. When assembling this kit, tools may be used. Extra

care should be taken to avoid personal injury.

5. Some parts are small and fragile: please be careful

when handling and connecting parts to avoid breakage.

Handle all parts and components with care.

6. Do not attempt to use any part, item, or component

provided in this kit for any other purpose than what is

instructed in this manual. Do not attempt to disassemble

any part, item or component in this kit.

7. Remove the HYDROSTIK PRO from the pressure

regulator immediately after use.

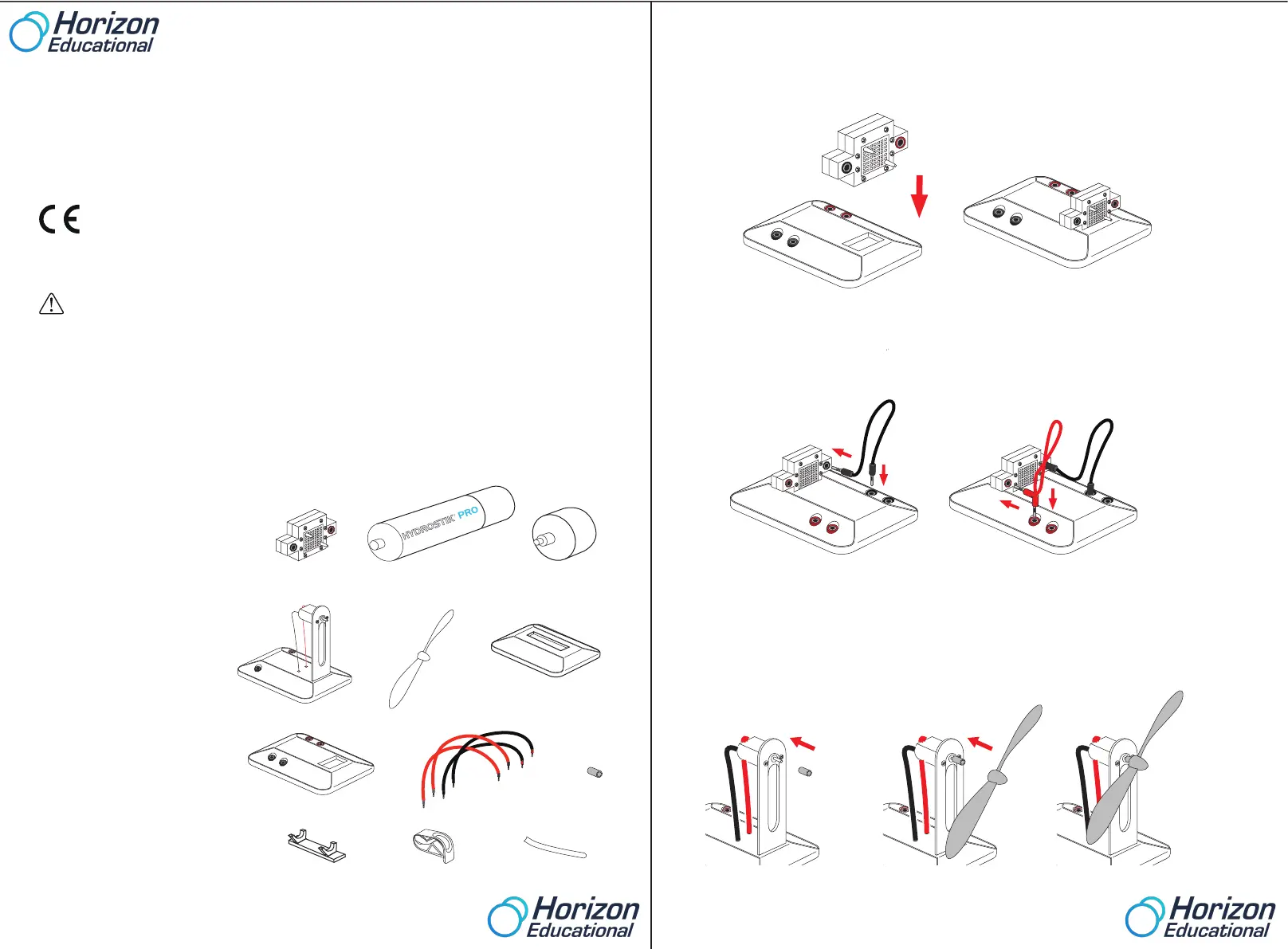

Micro-Fuel Cell Science kit

Preparing the micro-fuel cell module

a. Insert the PEM fuel cell (a) into its slot on the base (g).

Make sure the fuel cell fits well in its base.

List of Component

a. Micro-fuel cell

b. HYDROSTIK PRO (hydrogen storage)

c. Pressure regulator

d. Fan module

e. Fan blade

f. HYDROSTIK PRO base

g. Micro-fuel cell base

h. Wires

i. Fan blade adapter

j. HYDROSTIK PRO support

k. Clamp

l. Silicon tubes

b. Use the short black & red wires to connect the fuel cell to its base as shown below. Make sure

you respect the color code when you plug each wire into the corresponding socket.

Preparing the fan module

a. Connect the adapter (i) to the motor axis. Insert the fan blade (e) onto the adapter.

Make sure the connection is tight.

a b

You will also need the following items

(not included in this kit):

- HYDROFILL PRO for charging

the HYDROSTIK PRO

- Scissors

Preparing the hydrogen source

Power the fan with the hydrogen energy

a. Screw the HYDROSTIK PRO to the pressure regulator tightly.

b. Open the clamp to purge some amount of hydrogen out and then quickly close. The fan will immediately

start to run.

Note:

1. If the fan does not run at this time, it may need to be flicked with your finger to start.

2. After every 10 minutes, it is suggested open the clamp to release some amount of hydrogen out to

ensure the good performance of the fuel cell.

Now you can use a multi-meter or Horizon’s REM product Ref. FCJJ-24 to measure the output voltage &

current produced by the fuel cell or do various experiments.

b. Use the black & red wires to connect the fan module to the fuel cell module.

Make sure you respect the color code when you plug each wire into the corresponding socket.

a. Cut a 15cm long silicon tube. Connect the tube to the pressure regulator.

b. Connect the other end of the tube from the pressure regulator to the remaining nozzle of the fuel cell.

Make sure the connection is tight.

Connect the fan to the fuel cell

a. Cut a 6cm long silicon tube. Let the tube go through the clamp. Connect one end of the tube to the inlet of the

fuel cell (lower nozzle). Keep the clamp closed.

c. Place the HYDROSTIK PRO support (j) onto its base (f).

d. Place the HYDROSTIK PRO onto its support.

HYDROSTIK PRO SAFETY INFORMATION

● DO NOT try to disassemble, open or repair the cartridges when broken or worn out!

● DO NOT store cartridges under direct sunlight.

● Keep it away from fire. Fire Hazard!

● Keep in a safe place.

● Keep in a dry, cool place.

● Keep away from temperatures above 50˚C while filling, storage and using.

● Provide adequate ventilation and refrain from placing items on or around the appliance

during operation. Refrain from placing the appliance in enclosures or causing the appliance to not vent freely.

● Keep away from alkaline and acidic environment.

● This is not toy – keep away from children.

● The cartridge must be placed horizontally when it is being charged otherwise the cartridge can crack!

● HYDROSTIK PRO contents are flammable. Do not disassemble.

● Avoid contact with HYDROSTIK PRO contents.

● Remove the HYDROSTIK PRO from the pressure regulator immediately after use.

● When using the appliance, basic safety precautions should always be followed to reduce risk of fire, or personal

injury.

● Hydrogen shall be stored, handled and used with caution so life and health are not jeopardized and the risk

of property damage is minimized.

● This appliance is not tested for use with medical devices.

● Save these instructions and review frequently during use.

Note: The HYDROSTIK PRO contains no hydrogen when you get it for the first time, you have to fully charge the

HYDROSTIK PRO with the refilling station HYDROFILL PRO (not provided) or hydrogen charging tube (not provided) .
