Warning

Model No.: FCJJ-35

Super Capacitor Science Education Kit

ASSEMBLY GUIDE

To avoid the risk of property damage, serious injury or

death:

1. Read carefully and fully understand the instructions

before assembling this kit.

2. This kit is intended only for use by persons 14 years

old and up, and only under the supervision of adults

who have read and understood the instructions in this

user manual.

3. When assembling this kit, tools may be used. Extra

care should be taken to avoid personal injury.

4. Some parts are small and fragile: please be careful

when handling and connecting parts to avoid breakage.

Handle all parts and components with care.

5. Do not attempt to use any part, item, or component

provided in this kit for any other purpose than what is

instructed in this manual. Do not attempt to disassemble

any part, item or component in this kit.

6. Keep small children and animals away, because this kit

contains small parts that could be swallowed.

7. The hand crank is highly suggested to be cranked at

approximately 2 revolutions per second otherwise the

crank generator could be damaged by cranking too fast.

Super Capacitor Science Education kit

Preparing the super capacitor module

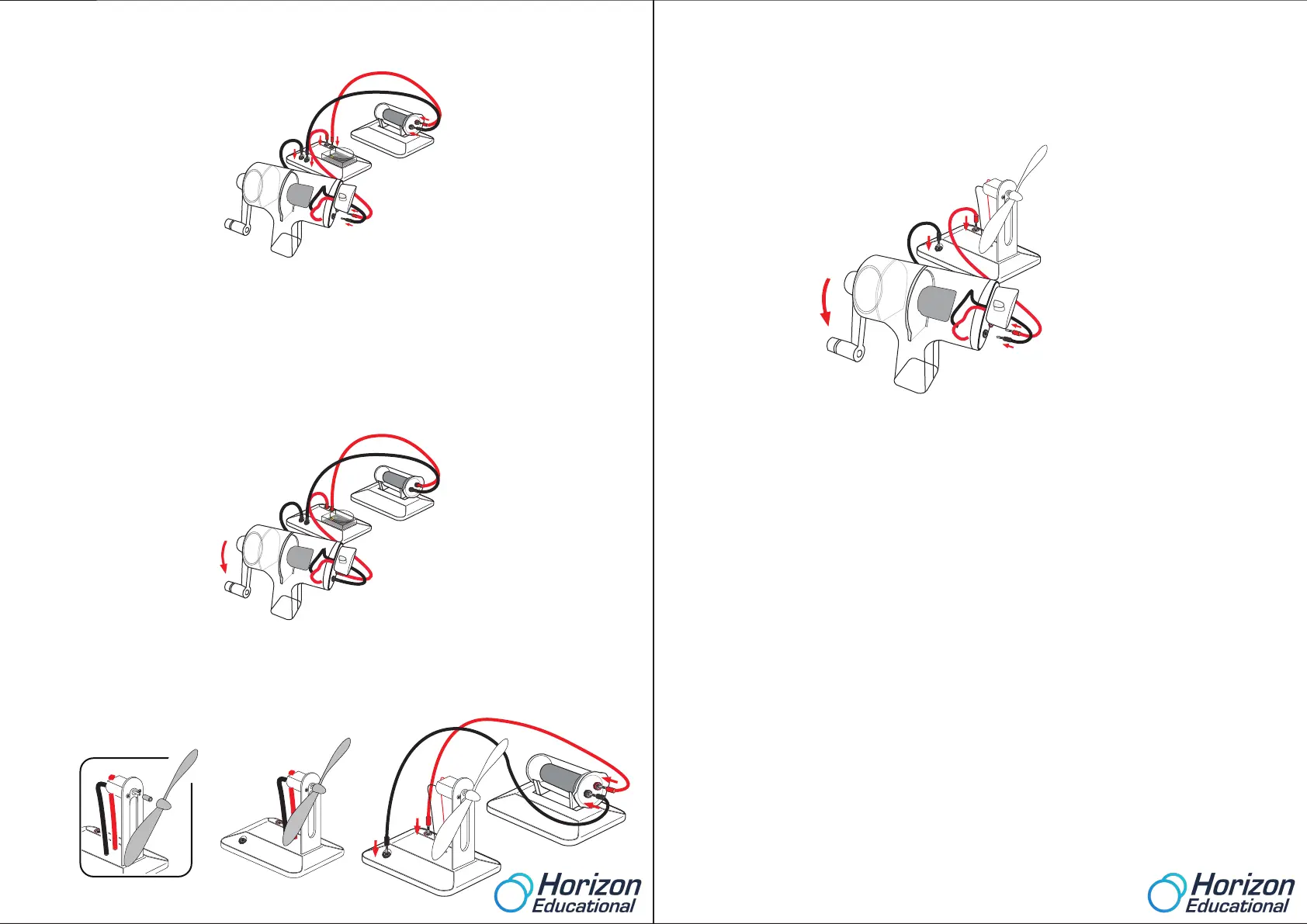

a. Insert the super capacitor support (g) into the base (f).

Make sure they fit well.

List of Component

a. Hand crank generator

b. Potentiometer

c. Super capacitor

d. Fan module

e. Fan blade

f. Capacitor base

g. Capacitor support

h. Wires

i. Fan blade adapter

b. Place the super capacitor (c) onto its support (g).

Make sure the capacitor fits well in its support.

c. Plug the red cable (h) and black cable (h) in the capacitor red and black socket.

Ensure to respect the color code.

Otherwise energy from the hand crank can not be stored into the capacitor.

Preparing the energy storing kit

a. Connect the other end of the cable to the potentiometer (b).

Ensure to respect the color code.

b. Connect the red and black cable to the hand crank (a).

Ensure to respect the color code.

Energy generating and storing

Power the electrical fan with the energy stored in the capacitor

Power the electrical fan directly with the hand crank generator

After connecting the wires, rotate the arm in a circular motion to generate power. You should crank the

arm to reach a speed of two revolutions per second, fast is better. Initially you will feel some

resistance, which will become smaller after a few seconds. If you feel the resistance increase again, it

means you’ve slowed down and need to speed back up.

WARNING: DO NOT crank the arm too fast otherwise the hand crank generator could be easily broken

by the strong force.

c. Connect the other end of the cable from the hand crank generator to the potentiometer.

Ensure to respect the color code.

a. Firmly grasp the rotary handle of the hand crank generator with one hand and grip the main handle with

the other hand.

Rotate the arm clockwise to generate power for charging the capacitor. You should crank the arm to

reach a speed of two revolutions per second. Initially you will feel some resistance, which will become

smaller after a few seconds. If you feel the resistance increase again, it means you’ve slowed down and

need to speed back up.

Note: At the same time you can notice the potentiometer is moving towards green part, which means you

are generating energy and the energy is being stored in the super capacitor.

WARNING: You are not allowed to rotate the arm anti-clockwise to charge the super capacitor.

Otherwise the super capacitor will be damaged by the countercurrent.

Note:

Finding the appropriate speed and technique will take a little practice. After you have spent a little time

acclimating yourself to the hand crank generator, you should develop an easy rhythm that is not strenuous

to sustain.

Although the generator is easy to crank, you may eventually tire. When you find yourself slowing down,

stop and take a rest, cranking slower is harder and may not generate enough power to charge the

capacitor or power the load.

The generator can be cranked in either direction, with either hand.

Try to rotate your hands around each other instead of trying to hold the generator still and moving one

hand in a circle. This prevents one arm from tiring faster than the other.

Experiment with what works best for you. As long as the handle is cranked at approximately 2 revolutions

per second the generator it will produce enough power to power the device provided.

a. Connect the adapter (i) to the motor axis. Put the fan blade (e) onto the adapter.

Make sure the fan blade is connected tightly to the motor shaft.

Use a cable to connect the fan module to the capacitor module.

Ensure to respect the color code.

Once they are connected, the fan moves fast immediately.

ADVANTAGES of a Hand Crank Generator:

- Does not require solar, wind, or fuel to charge. Charge it anytime, anywhere!

- Does not require additional purchases of fuel during an emergency, when gasoline is scarce.

- Can be operated indoors without deadly fumes or threat of theft while outdoors.

- Easy to operate. Even children can safely operate the hand crank generator.

- Silent operation. No loud generator noise!

- Easy to set up. No confusing mounting or home alterations needed.
