This manual is intended for the users of the DA-FM1500 ceiling mounting

bracket. It includes the instructions for mounting the DA-FM1500 ceiling

mounting bracket to the ceiling.

• This bracket is intended to be used with some models of dome

cameras. Ask your retailer for details on a specic model and do

not use it with other models of cameras.

• This installation should be performed by a qualied service

personnel in conformance to all local codes.

• You may need to reinforce the ceiling. If the ceiling is not strong

enough to support the camera, the camera may fall.

• Do not use this product for other purposes.

Mounting

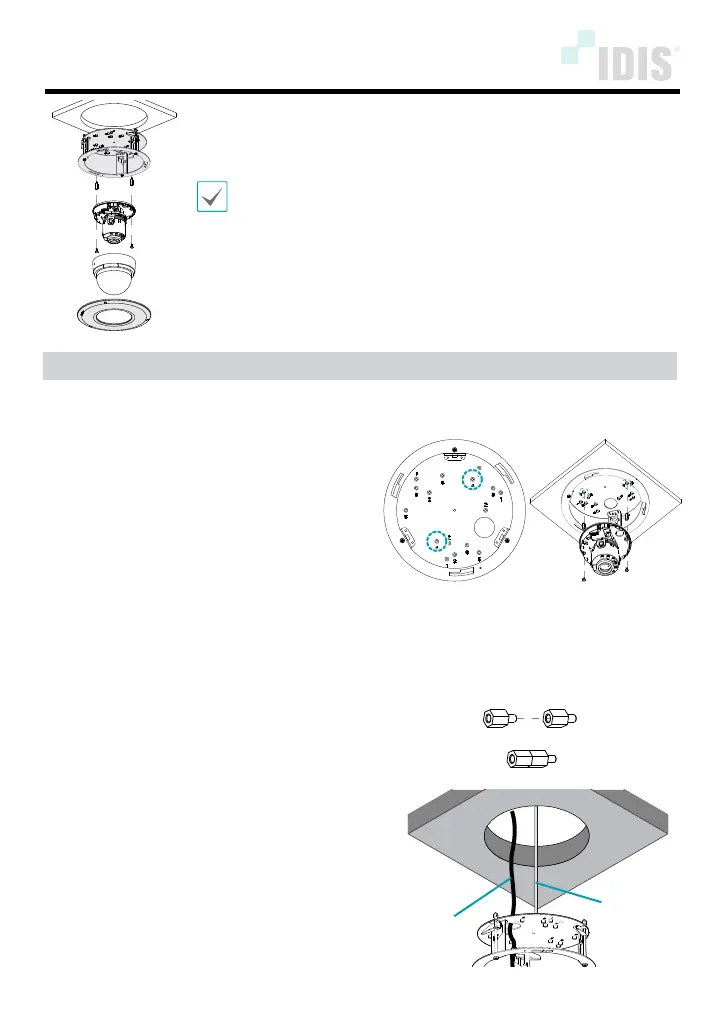

Assemble the camera body to the bracket by

tightening the screws.

• DC-D3233WRX / DC-D3233RX / DC-D3233X Models:

Screw No. 5 (3-point), PCB Support 8.8mm

• DC-D4233WRX / DC-D4233HRX / DC-D4223WRX

DC-D4236WRX / DC-D4236HRX / DC-D4533HRX

DC-D4536HRX / DC-D4831HRX / TC-D5531WRX(P)(-A)

Models: Screw No. 5 (3-point), PCB Support 8.8mm 6ea

• DC-D4233RX / DC-D4223RX / DC-D4533RX /

DC-D4536RX / TC-D5531RX(P)(-A) Models: Screw No. 4

(2-point), PCB Support 8.8mm 4ea

• TC-D4222WRX / TC-D4221WRXP Model: Screw

No. 6 (2-point), No PCB support necessary

• TC-D4222RX / TC-D4221RXP Model: Screw

No. 6 (2-point), PCB Support 8.8mm

• DC-D4236(R)X Model: Screw No. 2 (3-point), PCB

Support 8.8mm 6ea

• Other Vandal Dome Models: Screw No. 1 (3-point), No

PCB support necessary

< Screw No. >

(DC-D4233RX Model)

*When using the screws of DC-D4233RX / DC-D4223RX

/ DC-D4236(R)X / DC-D4533RX /TC-D5531RX(P)(-A)/

DC-D4233WRX / DC-D4233HRX / DC-D4223WRX / DC-

D4236WRX / DC-D4236HRX /

DC-D4533HRX / DC-D4831HRX / TC-D5531WRX(P)(-A)

models, combine the two as shown below.

Connect the cable through the cable hole and

screw the safety wire to the bracket to prevent

the bracket from falling on to the oor.

Cable

Safety Wire

DA-FM1500 INSTALLATION MANUAL
