DA-JB2400 INSTALLATION MANUAL

This manual is intended for users of the DA-JB2400 junction box. It

includes instructions for mounting the DA-JB2400 junction box to a wall.

•This junction box is intended to be used with DC-E & DC-T &

TC-T series model of camera. Do not use it with other models

of cameras.

•This installation should be performed by a qualied service

personnel in conformance to all local codes.

•You may need to reinforce the wall. If the wall is not strong

enough to support the camera, the camera may fall.

•Do not use this product for other purposes.

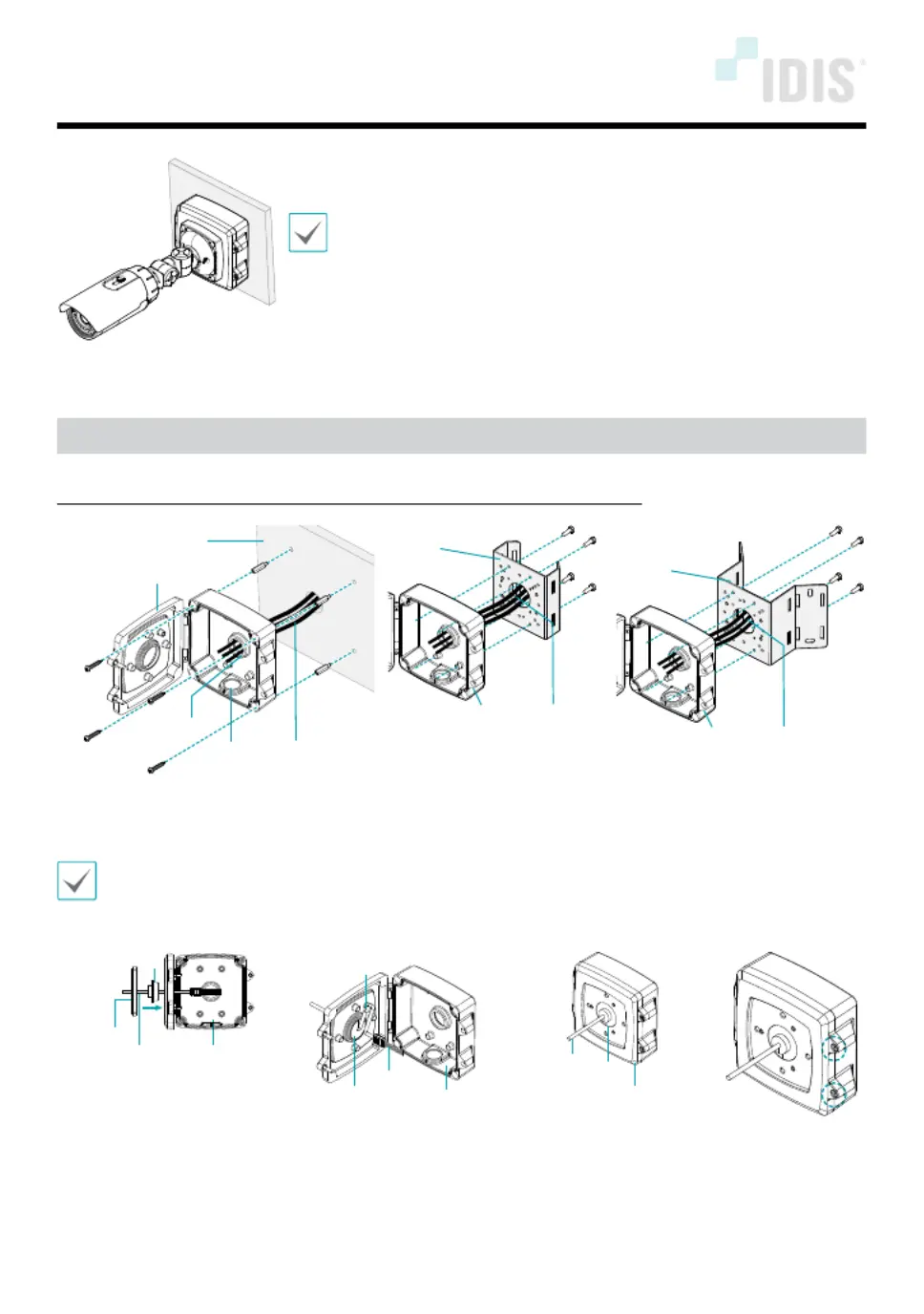

Mounting

Mount the junction box to the wall or mounting bracket as follows:

Wall

Cable

Junction Box

3/4" Cap

Wall Hole

Bracket

Junction Box

Cable

Bracket

Junction Box

Cable

Insert cables from external devices, network and power adapter to the junction box.

Mount the junction box to the wall or mounting bracket by using the screws.

• Use the provided guide pattern to check the distance between the screw holes if necessary.

• If you want to insert cables through the bottom of the junction box, remove the 3/4" cap and

attach it to the wall hole.

Rubber

Cable

Junction Box

Mounting

Bracket

Cable

Junction BoxRubber

Cable Clamp

Cable

Junction Box

Rubber

Route the cable from the camera through the rubber and then junction box. Attach the rubber

onto the junction box.

Fix the cables using the cable clamp.

Connect the cables from external devices, network and power adapter to each port of the

camera.

IDIS Co., Ltd.

For more information, please visit www.idisglobal.com

Close the junction box by using the screws.

Make sure that the rubber is attached onto the junction box.

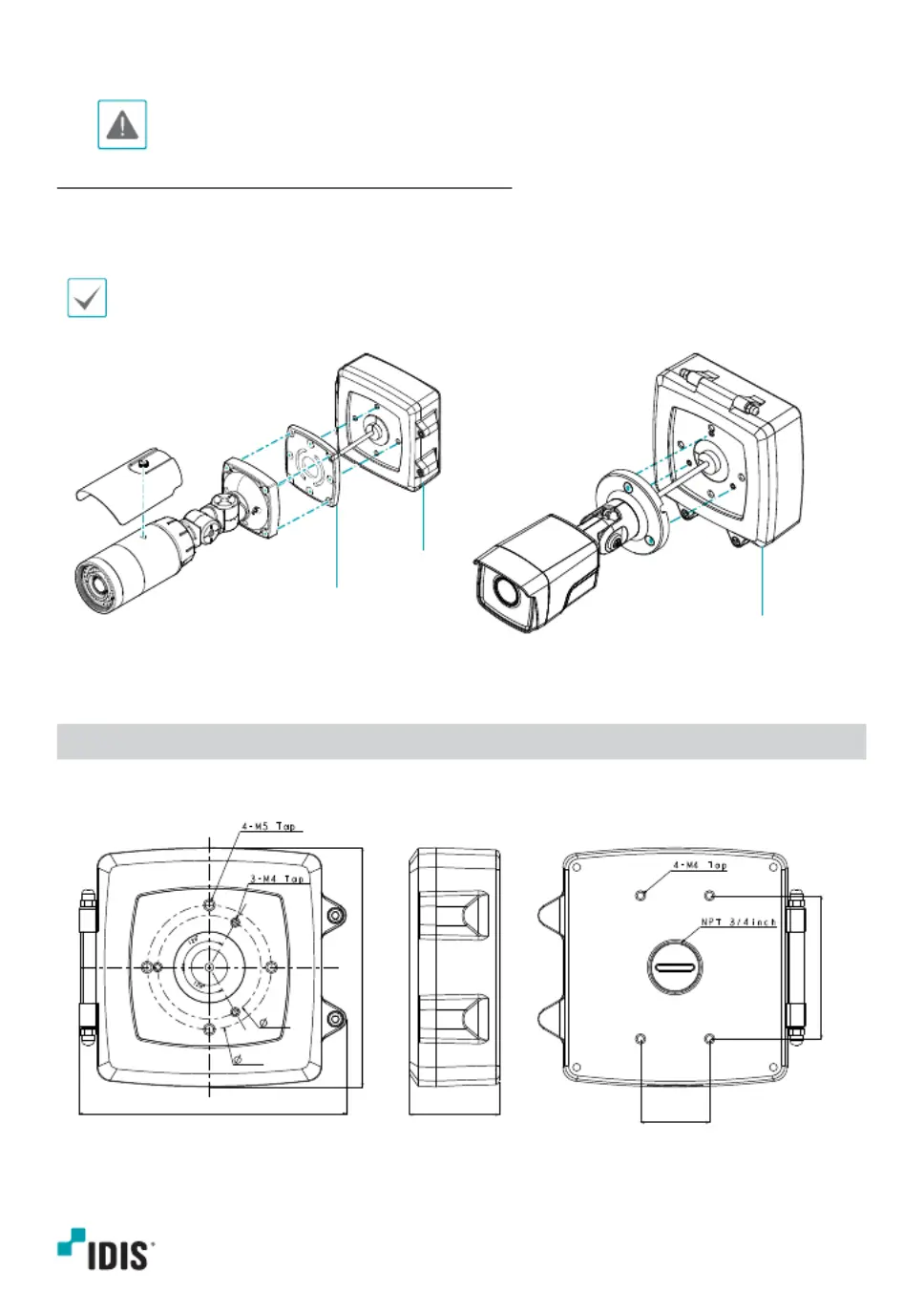

Connect your camera to the junction box as follows:

Screw the mounting bracket onto the junction box, then the camera body onto the mounting

bracket by using screws.

Use screw by model as below.

Junction Box

Mounting Bracket

• M5x16 : DC-E4213, E4513, E4216

DC-T4233, T4533, T4236

• M5x12 : Others

Junction Box

• M4x8 : DC-E4212, E4215

TC-T5511

Dimensions

Unit: mm (inch)

155 (6.1)

138.5 (5.45)

52 (2.04)

40 (1.57)

83 (3.26)

72 (2.83)

60 (2.36)

Ver.1.0
