Ikegami Tsushinki Co., Ltd.

INSTRUCTION MANUAL

MODEL

OUTDOOR USE WARNING

ISD-A14S

COLOR CAMERA

TCB014411-00

Ikegami Electronics (U.S.A.), Inc.

300 Route 17 South, Mahwah, NJ 07430, S.A.U.

Phone: (201) 368-9171, X (201) 569-1626FA

www.Ikegami.com

WARNING – TO PREVENT FIRE OR

ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

The apparatus shall not be exposed to

dripping or splashing and that no

objects filled with liquids, such as vases,

shall be placed on the apparatus.

Thank you very much for your wise choice of the Ikegami Color Camera.

Please carefully read this Instruction Manual to keep your camera at

full capacity. This video camera is equipped with a 1/3.2" Digital Pixel

Sensor (DPS) system.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

NOTE:

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in

a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own

expense.

CAUTION;

ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY

APPROVED BY THE PART RESPONSIBLE FOR COMPLIANCE

COULD VOID THE USERS AUTHORITY TO OPERATE THE

EQUIPMENT.

Instructions for Disposal of Electric and Electronic

Equipment in Private Household

Disposal of used Electric and Electronic Equipment

(Applicable in the European Union and other European

countries with separate collection systems)

This symbol on the product, or in the related documents in

the package, indicates that this product shall not be treated

as normal household waste.Instead, it should be taken to a

proper applicable collection point or depot for the recycling

of electric and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent

possible negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of

this product. The recycling of materials will help to conserve natural

resources.

For more detailed information about recycling of this product, please

contact your local city authority, your household waste disposal service

or the place where you purchased the product.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a dry cloth.

7) Do not block any of the ventilation openings. Install in accordance

with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including ampliﬁers) that

produce heat.

9) Do not defeat the safety purpose of the polarized or grounding type

plug. A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong is provided for your safety. When

the provided plug does not ﬁt into your outlet, consult an electrician

for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles, and the point where they exit

from the apparatus.

11) Only use the attachments/accessories speciﬁed by the

manufacturer.

12) Use only with a cart, stand, tripod, bracket, or

table speciﬁed by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for

long periods of time.

14) Refer all servicing to qualiﬁed service personnel. Servicing is

required when the apparatus has been damaged in any way, such

as power supply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been

dropped.

15) CAUTION - These servicing instructions are for use by qualiﬁed

service personnel only. To reduce the risk of electric shock, do not

perform any servicing other than that contained in the operating

instructions unless you are qualiﬁed to do so.

1. Handling precautions

• Do not install the camera in a water-splashed or highly

humid environment.

• Do not use the camera where the ambient temperature

drops below -10°C or rises above +50°C. The images and

component parts may be adversely affected or the camera

may not function correctly.

• Never open the camera case because there are precision

electrical and electronic components inside and an

accident may result.

• Be sure to turn off the power before installing or making

connections.

• Be careful not to drop or give a strong shock to the camera

while transporting it.

• Do not touch the image sensor.

• Do not orientate the camera directly towards the sun.

• Images on the screen may look slightly rough at high

temperatures because of the image sensor characteristics.

This is not a system failure, however.

2. General

This color camera is equipped with a 1/3.2" Digital Pixel

Sensor (DPS) system. It features WDR, high sensitivity and

high resolution, and is equipped with many functions. The

camera is best suited for being set up at ATMs and being

housed in other systems.

3. Features

(1) Hyper Wide Light Dynamic Range (Hyper WDR)

The WDR function provides for very effective

compensation of high light and dark areas in screen. This

situation may occur generally outside or viewing from

indoor to outdoor scenes. Even in large light ﬂuctuations,

bright-and-dark subjects can be captured and viewed

clearly with a natural appearance.

(2) Small-size cube shape

The small-size cube shape of the camera allows it to be

most suitable to be installed into various devices such as

ATM units.

(3) High-quality picture and high resolution

The camera is designed for smear-free imaging and low

noise. The well-designed DSP, Digital Signal Processor,

effectively enhances details, which achieves crisp and

sharp images with a high signal-to-noise ratio. The high

resolution of a horizontal resolution of 700 TV lines is

assured.

(4) Automatic white balance

Thanks to the automatic follow-up white balance control

(ATW), the white balance adjusts itself no matter how

great the subject's color temperature ﬂuctuates.

(5) Automatic Sensitivity Control

In conjunction with the wide dynamic control by the multi-

sampling system, the camera incorporates the automatic

sensitivity control function that always provides adequate

and bright images even through its ﬁxed-iris lens.

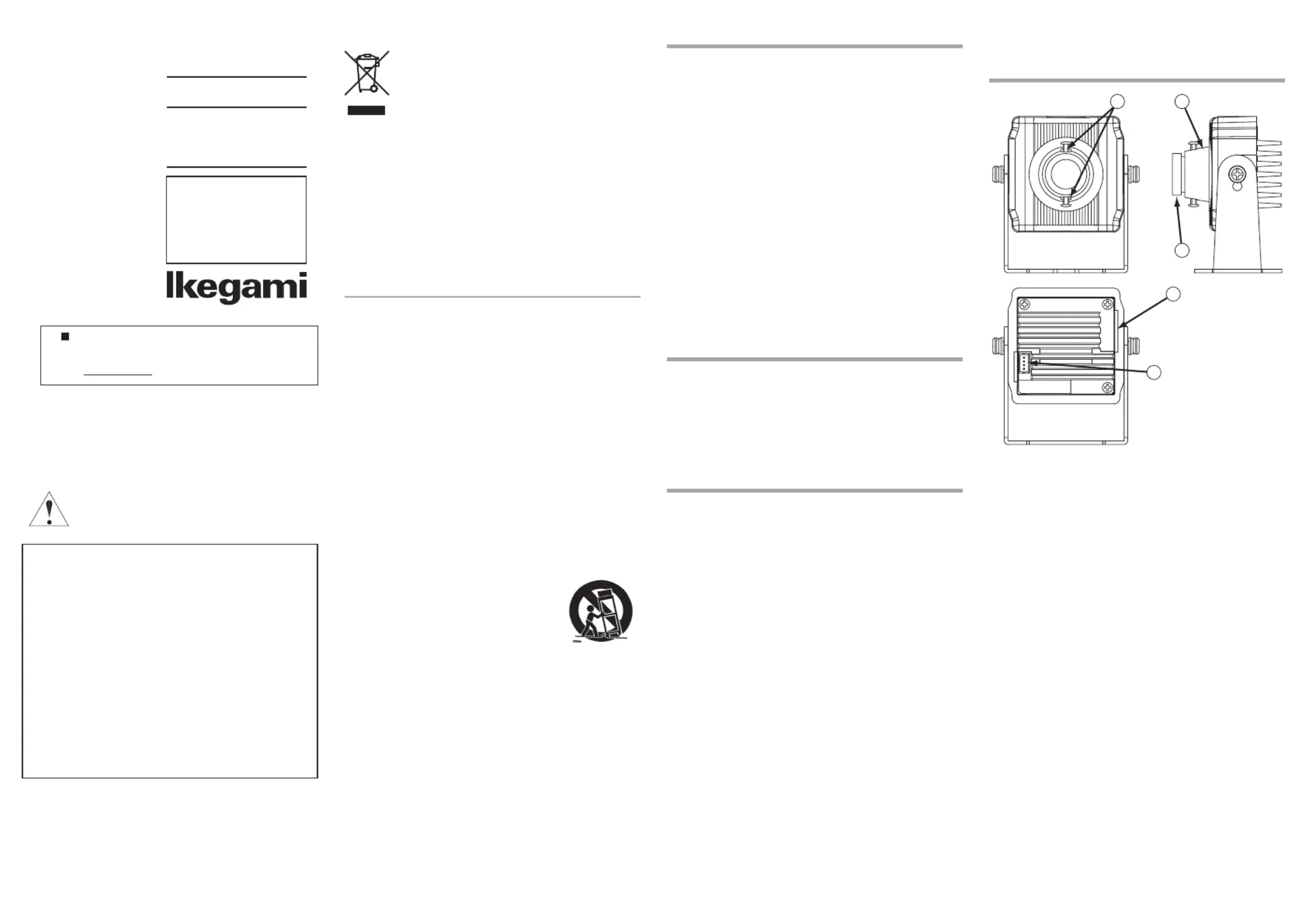

4. Names of parts and

their functions

①

Focus lock screw

With focus adjustment complete, this is used to

mechanically lock the lens. Tighten up the two screws,

upper and lower, to lock the lens.

②

Lens mount

This is used to mount the lens on the camera.

③

Set-up unit connector

Just hook up the set-up unit (sold separately), and the

camera's settings can be readily modiﬁed. For details on

the set-up unit, contact your local salesperson.

④

Video output and DC12V power input connectors

This connector is used to connect the video output cable

and power input cable. Use the accompanying harness.

The power input DC jack is of the Center Plus type.

* This installation should be made by a qualiﬁed service

person and should conform to all local codes.

* Note: Before making connection, be sure that the power

is in the range of DC12V ± 10%. Be very careful

not to employ AC power because otherwise the

camera may get damaged.

⑤

Lens

M12 mount lens can be mounted on the camera.
