IVCU60

IVCU90

230Vac - 50Hz

Exhausting cooker hood. The equipment is constructed in

accordance with European Standards and with the requirements

included in the following Directives: 2006/95EC ( Low Voltage

Directive), 2004/108 (Electromagnetic Compatibility).

1 INSTALLATION

Read the instruction manual before installing and/or using the

hood .

In order that the minimum distance between the supporting

surface for the cooking pots on gas hob and low-voltage

components present in the hood is at least 65cm as required by

the regulations in force, it is necessary that the lower part of the

hood is at least 60cm away from the work top.

If the mounting instructions of the gas cooker indicate a wider

distance, respect it. The unit must not be mounted above cookers

tted with top radiant plate.

Respect all the air discharge regulations.

The air must not be discharged in a pipe used to discharge

exhaust fumes produced by gas- fed equipments or fuel-fed

equipments (this does not apply to ltering hoods).

The room must be adequately ventilated when the hoods is used

together with other gas-fed or fuel-fed equipments.

The hood is equipped with all the necessary fastenings for its

installation, which are suitable for most surfaces. Anyway, ask

to a professional to verify that the installation surface is strong

enough. Installation must be carried out by qualied installers

according to present regulations.

For an easy access, it is advisable to move possible furniture

under the installation area. For mounting the hood follow the

illustrations in Fig. 1-2-3.

2 ELECTRICAL CONNECTIONS

This appliance must be connected to an earthed power supply.

Two types of electrical connection can be used:

1. Using a standard plug to be connected to the power cable

and inserted in a mains socket which must be accessible (so

that the plug can be disconnected when servicing is carried

out). Make sure that the plug is accessible also after the

complete installation of the equipment.

2. By means of a xed mains connection, tting a bipolar

switch, which ensures the disconnection, with an opening

distance of the contacts allowing a complete disconnection

on the conditions of the overvoltage III category, according to

installation regulations. The ground connection (yellow-green

wire) must not be interrupted.

Refer to the plate inside the hood for the mains voltage and

frequency ratings.

3 USE

This cooker hood can be employed as exhausting or ltering.

Exhausting (Fig. 4). The carbon lters should not be installed on

the hood in exhausting version.

Kitchen smokes are driven outside through a ue joined to the

exhaust pipe ue connector.

Pipes must be communicating with the exterior of the house. The

diameter of the outlet of the hood is 150mm. A 150-125 reduction

is provided with the hood.

This pipe must not under any circumstances be connected to

cooker, boiler or burner exhaust pipes, etc.

Filtering (Fig. 5). The fumes pass through the carbon lters to be

puried and recycled into the kitchen through a pipe connected

to the outlet of the hood up to the hole in the top of the cabinet.

This hole must be free and communicating with the kitchen.

In the ltering version you must install the two carbon lters on

the sides of the aspirator. To install the carbon lters you must

rst remove the metal grease lters (Fig. 6) and then install

carbon lters by turning them counterclockwise (Fig. 7).

4 OPERATION

The hood is supplied with a multispeed motor.

The hood should be run at low speed under normal conditions

and at higher speeds only when there is a heavy build-up of

fumes or odours.

Ideally, the hood should be switched on as soon as cooking is

started and then kept on until all odours have been eliminated.

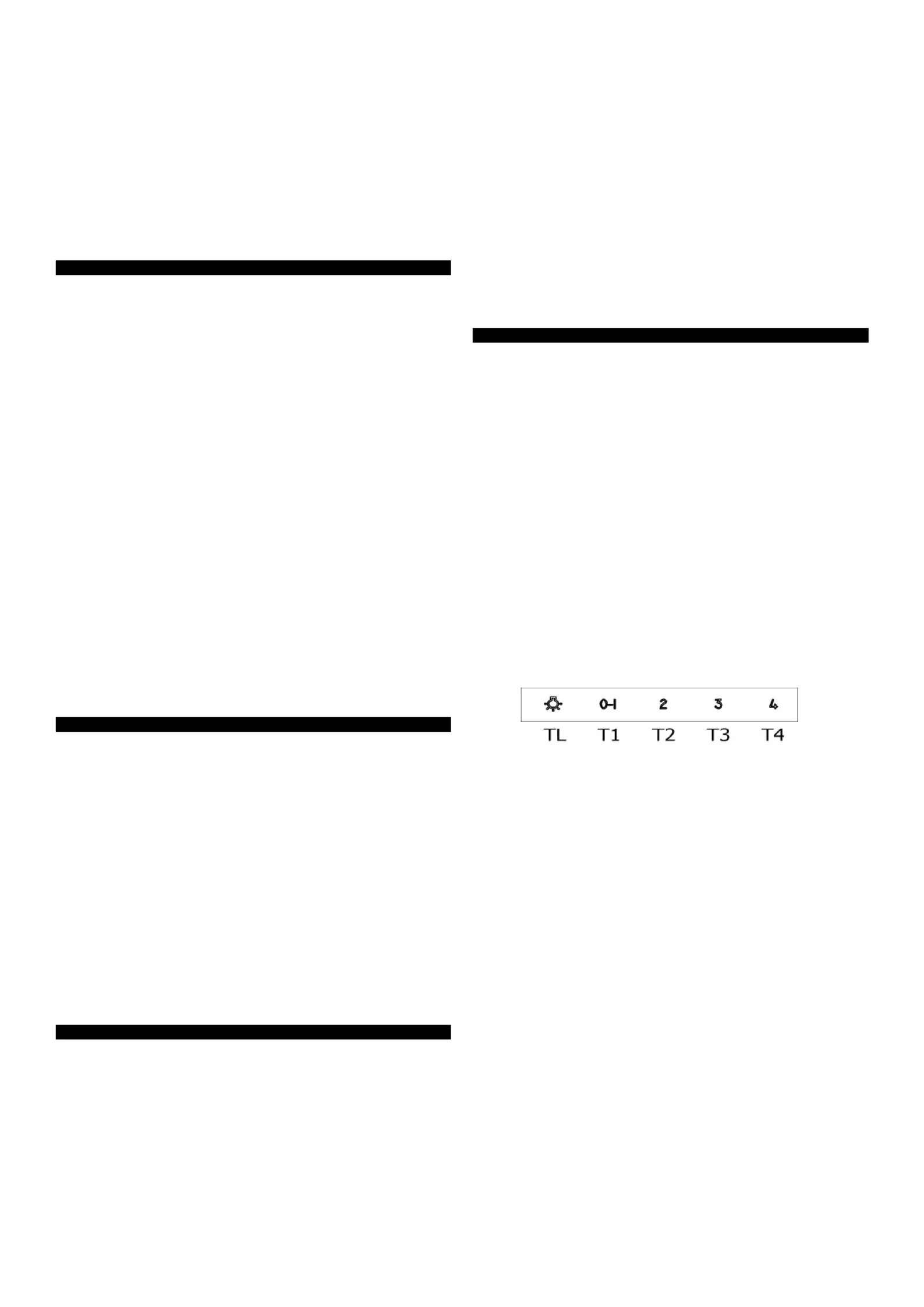

The controls consist of these commands. Press TL to turn on the

light, press T1 to swich on the hood at rst speed and to switch

off the aspirator, press T2-T3-T4 to select functioning speeds.

By pressing of the command T1 the motor starts running at

the 1st speed. The commands T2-T3-T4 switch the motor on

respectively at the 2nd, 3rd and 4th speed. In order to switch the

motor off press T1 once if set at the 1st speed, twice if set at the

2nd, 3rd and 4th speed. With the button T4, select the maximum

speed of the extraction fan for 5 minutes (LED blinking), after

which the extraction fan will automatically switch to the 3rd

speed.

Adjustable and delayed self switching off

While the hood is working, keep the TL command pressed until

all LEDs start blinking. By pressing one of the commands (T1,

T2, T3, T4) you can program the delayed self switching off, as

follows:

T1 corresponds to 5 minutes

T2 corresponds to 10 minutes

T3 corresponds to 15 minutes

T4 corresponds to 20 minutes

Filters maintenance reminder:

Aluminium anti-grease lters

Once the hood is switched off, after 30 hour functioning, all

the LEDs of the speed buttons switch on with a xed light for

30 seconds to remind that aluminium anti-grease lter need

cleaning. To set the timer to zero keep the button T4 pressed

with the aspirator switched off, otherwise the timer will remain set

on 30 hour functioning and the reminder will occur again when

the hood is switched off again.

Charcoal lter (for ltering hoods)

Once the hood is switched off, after 120 hour functioning, all

LEDs blink for 30 seconds to remind that the charcoal lter need

cleaning. To set the timer to zero keep the button T4 pressed with

the aspirator switched off, otherwise the timer will remain set on

120 hour functioning and the reminder will occur again when the

hood is switched off again.

INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS FOR COOKER HOOD IVCU MODELS

230-240 Vac - 50 Hz
