Side 1/8

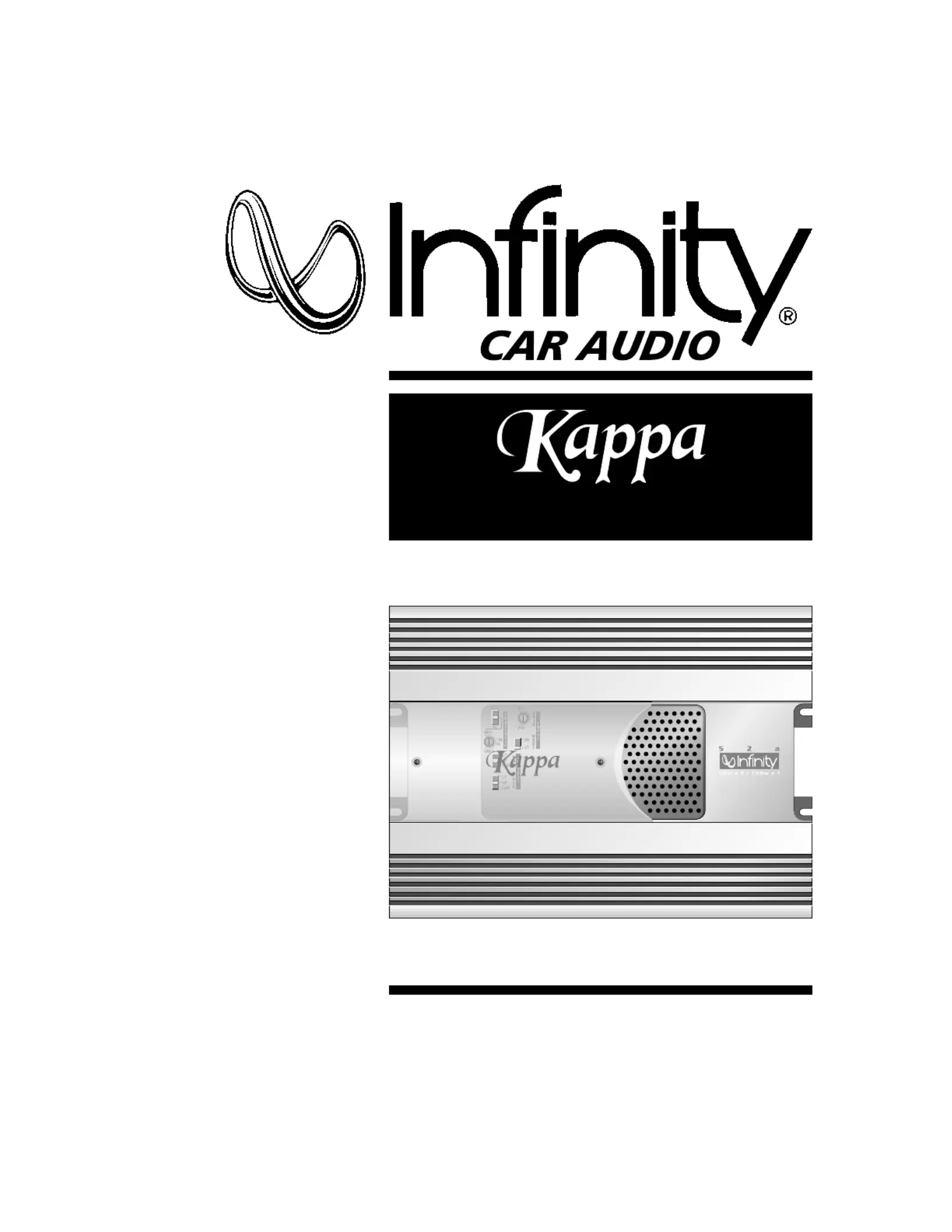

52a 2-Ch Power Amplifier
Owner’s Manual
Installation Guide
2 – Infinity Kappa 52a Power Amplifier
KAPPA 52A POWER AMPLIFIER
The Kappa 52a is a member of Infinity’s new Kappa
series of mobile power amplifiers. Housed within the
sleek, extruded aluminum frame, you’ll find the latest
advances in circuit topology, along with user
conveniences like a wide-range input sensitivity control,
auxiliary outputs, and a built-in electronic crossover.
With features like these and more, you can quickly try
out a variety of system ideas, and because the Kappa 52a
belongs to a related product family, you’re assured future
expansion will look as good as it sounds.
K A FA P P A 5 2 A M P L I F I E R E A T U R E S ...
The Kappa 52a is a 2-channel power amplifier that offers
stereo, bridged-mono, or tri-mode operation, and is rated
at 50 watts (rms) per channel into a 4-ohm load. In a
bridged-mono configuration, it can deliver up to
150 watts (rms) for the same load. The 52a also features:
•2-ohm operation, rated at 75 watts (rms) per channel
•A bridge/stereo switch for fast system setup
•A built-in 12 dB-per-octave electronic crossover,
variable from 50 to 500 Hz, with a switch (to“x10”
increase frequency range from 500 Hz to 5 kHz)
•Individually selectable high- and low-pass filters (with
through-pass) for amplifier and auxiliary outputs
•An amplifier input sensitivity control to match a wide
range of input signal levels from 250 mV to 9 V
•Five protection levels guard against over-voltage,
under-voltage, over-power, over-temperature, and
over-current situations
•2-color LED array indicates green when power is on
and orange when protection is activated
• “ ”Industrial-grade, gold-plated, pre-wire and plug-in
connectors for an easy-to-install high-quality interface
•Transparent control cover to deter tampering yet
provide a clear view of installation settings
•Built-in automotive type fuse to protect the amplifier
• ™Unibloc chassis provides improved heat-sink
capacity and exceptional RFI shielding characteristics
A T WB O U T H E A R R A N T Y ...
You’ve selected a premium product that offers superior
performance and advanced materials, resulting from over
25 years of car audio design.This Infinity product is made
with our ongoing dedication to creating the best consumer
audio products possible. As a result, you can expect your
new Kappa Power Amplifier to provide you with many
years of listening enjoyment.
All Infinity Automotive Products carry a limited parts
and labor warranty (see the enclosed warranty card), so
retain the bill of sale to protect your purchase and to aid
us with any service-related questions you may have.
A T MB O U T H I S A N U A L ...
To attain maximum amplifier performance, we encourage
you to read the remaining pages before installing and
operating your new Infinity Kappa Power Amplifier.
Especially review the section (on the nextApplications
page) for ideas on designing a system. Also, save these
instructions for future reference.
IMPORTANT: Installation of automotive stereo com-
ponents can require extensive experience in performing a
variety of electrical, and mechanical procedures. Although
these instructions explain how to install a Kappa Power
Amplifier in a general sense, they do not show the exact
installation methods for your particular vehicle. If you do
not have the experience, do not attempt the installation
yourself; instead ask your Authorized Infinity Car Audio
Dealer about professional installation options.
T O CA B L E F O N T E N T S ...
Applications ..................................................3
S y s t e m E x p a n s i o n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
P r e c a u t i o n s A n d N o t e s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation...................................................6
T r o u b l e s h o o t i n g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DECLARATION OF CONFORMITY
We, Infinity Systems A/S
Kongevejen 194B
DK-3460 Birkerød
DENMARK
declare in own responsibility, that the product described in this
owner s manual is in compliance with technical standards’
EN 55013/A12/8.1994 and EN 55020/12.1994.
Steen Michaelsen
Infinity Systems A/S
Birker d. DENMARK. 3/97ø
