Thank you for purchasing an Infinity Kappa Series 3-Way

Component System. We’ve organized this manual to make your installation

as simple and trouble-free as possible. Please read it thoroughly before

proceeding. Remember to keep your sales receipt with this manual in a

safe place so both are available for future reference.

A P PA

E R I E S

653.1cs, 1.1cs

I N S T R U C T I O N S

- 2 -

IMPORTANT: Installation of automotive stereo

components can require extensive experience

with a variety of mechanical and electrical proce-

dures. Although these instructions explain how to

install a Kappa Series 3-Way Component System

in a general sense, they do not show the exact

installation methods for your particular vehicle. If

you do not feel you have the experience, do not

attempt the installation yourself, but instead ask

your Authorized Infinity Car Audio Dealer about

professional installation options.

WARNING: Playing loud music in an automotive

environment can permanently damage your

hearing, as well as hinder your ability to hear

traffic. The maximum volume levels achievable

with Infinity speakers, combined with high

power amplification, may exceed safe levels for

extended listening. We recommend using low

volume levels when driving. Infinity accepts

no liability for hearing loss, bodily injury or

property damage as a result of use or misuse of

this product.

S PPEAKER LACEMENT

Kappa speakers are designed to be easily

installed in stock speaker locations. While mount-

ing your speakers in the original factory locations

will, in most cases, provide excellent sonic

results, the best sounding installations are a

result of adherence to a few basic rules:

• For the most spacious stereo image, place the

left and right speakers as far apart as possible.

• For enhanced center image, place the left and

right speakers so they are equidistant from the

listening position. If possible, try to place them

as far forward as possible.

• For best treble response aim the tweeters

toward the listening position, and be sure there

are no obstructions between the tweeters and

the listener.

INSTALLATION ARNINGS AND IPSW T

• Always wear protective eyewear when using

any tools.

• Turn off all audio systems and other electrical

devices before you start. Disconnect the (–)

negative lead from your vehicle’s battery.

• Keep components in their package until final

installation. When moving a speaker, always

rest it with the cone or dome facing up. Never

use force to install any speaker.

• Check clearances on both sides of a planned

mounting surface before drilling any holes or

installing any screws. Remember that the

screws can extend behind the surface.

• At the installation sites, locate and make a note

of all fuel lines, hydraulic brake lines, vacuum

lines and electrical wiring. Use extreme caution

when cutting or drilling in and around these

areas.

CAUTION: In some cars, fuel tanks may be

located directly beneath the rear deck. Check

for adequate speaker basket clearance before

considering this location!

• Before drilling or cutting holes, use a utility

knife to remove unwanted fabric or vinyl, to

keep material from snagging in a drill bit or

saw.

• For door installations, check the clearance with

the windows throughout the range of the win-

dow’s travel, and verify that a mounted speaker

will not interfere with the window crank or

power window mechanism.

• If mounting components elsewhere, check for

clearance around rear deck torsion bars, glove

box or other structural elements.

• Do not mount components where they will get

wet.

– + MID

REFERENCE STANDARD AUTOMOTIVE

Component System Crossover Network

TO LEFT

MIDRANGE

TO LEFT

TWEETER

TO RIGHT

TWEETER

TO RIGHT

MIDRANGE

+ +++

LO HI– – LO HIMID HI LOMID HI LO

–

TO RIGHT

WOOFER

HI LO –

TO LEFT

WOOFER

HILO–

FROM LEFT AMPLIFIERSFROM RIGHT AMPLIFIERS

+–

WOOFER

+–

MIDRANGE

+–

EMIT TWEETER

+–+–+–

EMIT TWEETERMIDRANGEWOOFER

–

To RIGHT

Woofer

–

HI +

To LEFT

4" Midrange

– + HI –

To RIGHT

4" Midrange

To LEFT

Tweeter

–

To RIGHT

Tweeter

+ HI

+ MID

– ++ –

–

To LEFT

Woofer

GRN/WHT GRNGRN

LEFT

RIGHT

GRN/BLK

RED BLK BLK RED

BLU

BLU/BLK

BLU

BLU/WHT

GRY/

BLK

GRY

GRY/

WHT

GRYRED

RED/

BLK

RED

RED/

WHT

Connect Pigtail

Jumpers As Shown

Amplifier

W CIRE ODES

Single Stereo Amplifier

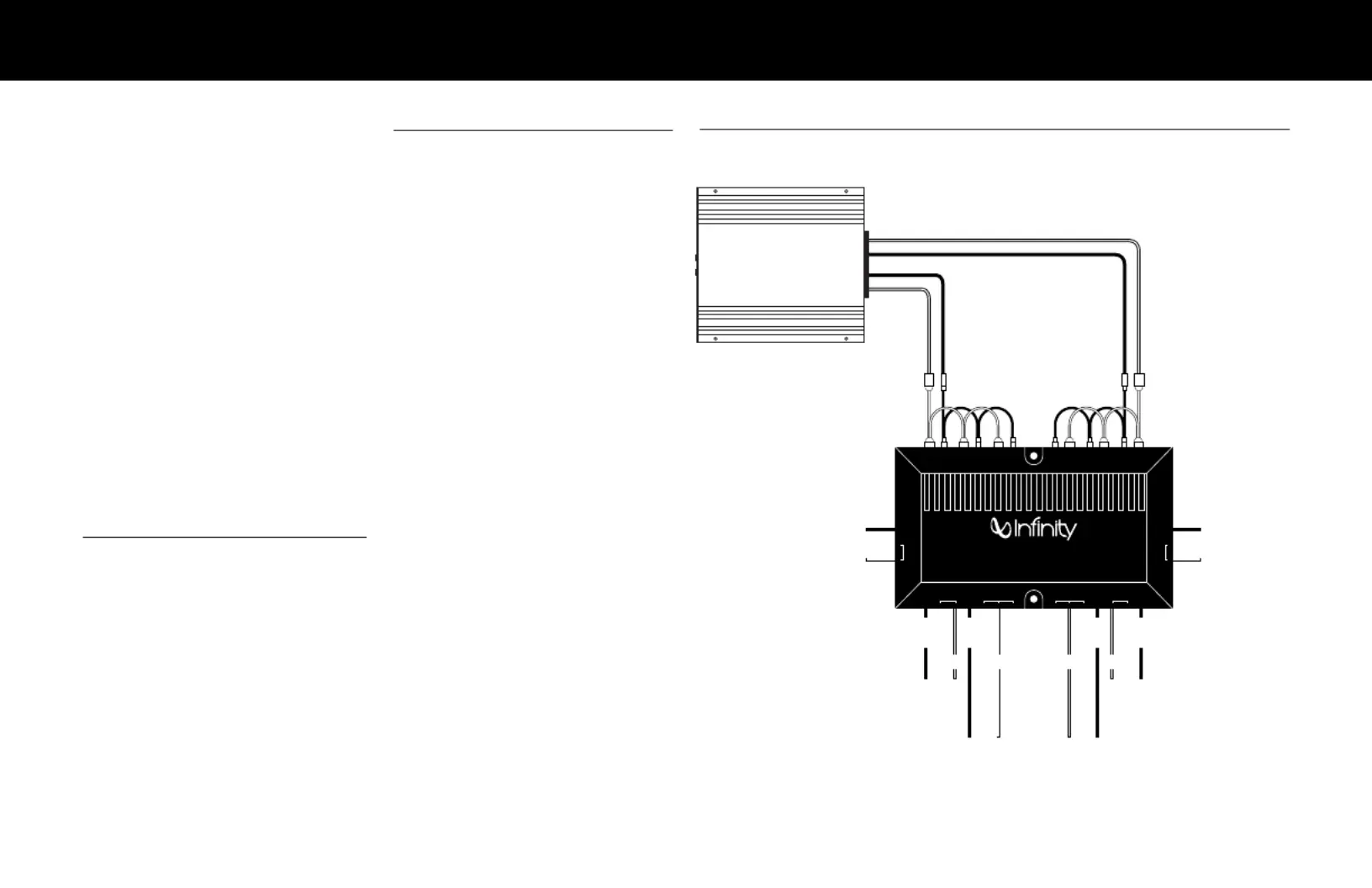

Figure 1. This appli-

cation shows

connections for a

Kappa1cs system

and one stereo

amplifier.
