reference series

5010cs,6010cs,6810cs

THANK YOU for purchasing Infinity’s Reference

Series automotive loudspeaker components.

We’ve organized this manual to make your

installation as simple and trouble-free as possible.

Please read it thoroughly before proceeding.

Remember to keep your sales receipt with this

manual in a safe place so both are available for

future reference.

IMPORTANT: Installation of automotive stereo

components can require extensive experience

with a variety of mechanical and electrical

procedures. Although these instructions explain

how to install Reference Series speakers in a

general sense, they do not show the exact

installation methods for your particular vehicle.

If you do not feel you have the experience, do

not attempt the installation yourself; instead, ask

your authorized Infinity car audio dealer about

professional installation options.

WARNING: Playing loud music in an automobile

can permanently damage your hearing, as well as

hinder your ability to hear traffic. The maximum

volume levels achievable with Infinity speakers,

combined with high power amplification, may

exceed safe levels for extended listening. We

recommend using low volume levels when

driving. Infinity accepts no liability for hearing

loss, bodily injury, or property damage as a result

of use or misuse of this product.

INSTALLATION ARNINGS AND IPSW T

• Always wear protective eyewear when using

any tools.

• Turn off all audio systems and other electrical

devices before you start. Disconnect the (–)

negative lead from your vehicle’s battery.

• Keep speakers in their package until final

installation. When moving a speaker, always

rest it with the cone or dome facing up. Never

use force to install any speaker.

• Check clearances on both sides of a planned

mounting surface before drilling any holes or

installing any screws. Remember that the

screws can extend behind the surface.

• At the installation sites, locate and make a note

of all fuel lines, hydraulic brake lines, vacuum

lines, and electrical wiring. Use extreme caution

when cut

ting or drilling in and around these

areas.

CAUTION: In some cars, fuel tanks may be

located directly beneath the rear deck. Check

for adequate speaker basket clearance before

considering this location!

• Before drilling or cutting holes, use a utility

knife to remove unwanted fabric or vinyl, to

keep material from snagging in a drill bit or

saw.

• For door installations, check the clearance with

the windows throughout the range of the

window’s travel, and verify that a mounted

speaker will not interfere with the window

crank or power window mechanism.

• If mounting speakers elsewhere, check for

clearance around rear deck torsion bars, glove

box, or other structural elements.

• Do not mount speakers where they will get wet.

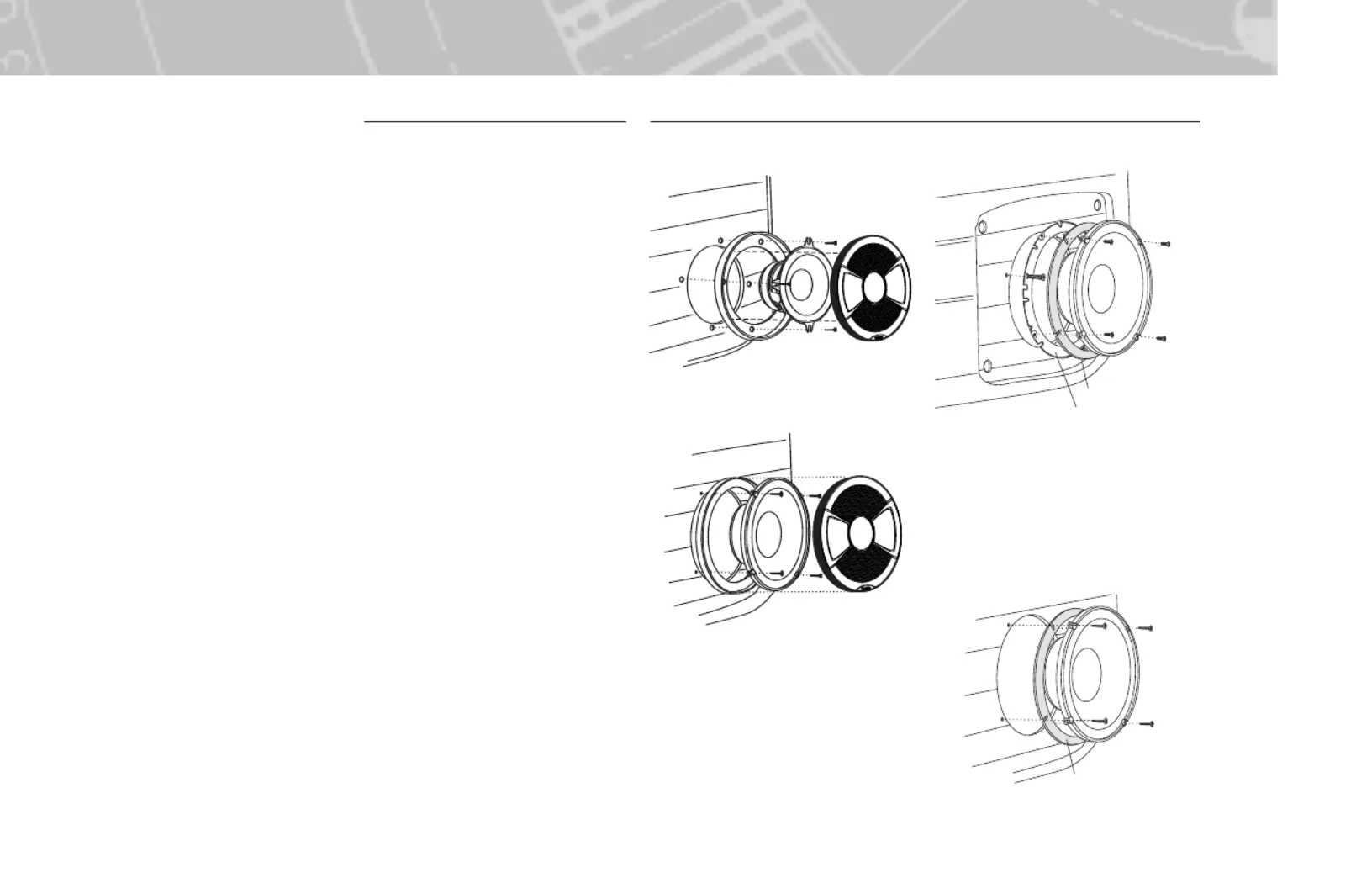

Figure 1. Mounting the 5010cs woofer with

the grille.

Figure 2. Mounting the 6010cs woofer with

the grille.

Note: The 6810cs is designed to replace 5" x 7"

and 6" x 8" speakers installed behind existing

vehicle grilles, and does not include grilles.

Figure 3. Mounting the 6010cs in 165mm speaker

locations.

FOAM GASKET

MOUNTING RING

FOAM GASKET

INTERMOUNT III (PATENT NO. 6,505,705)

The 6010cs is packaged with two different speaker

adaptor rings. These are used to install the 6-1/2"

speakers in various vehicles. The metal ring can

be mounted in many European vehicles, while the

plastic ring can be mounted in many vehicles

using 6-3/4" speaker locations or three-point

mounting frames.

Figure 4. Mounting the 6010cs woofer in standard

speaker locations.

INSTALLATION
