Side 1/2

2-3/8"

60mm

1/2"

12mm

8-11/16"

220mm

7-5/16"

185mm

3-9/16"

90mm

1-3/4"

44mm

8-1/8"

205mm

4-1/4"

107mm

127mm

4-11/16"

118mm

5-9/16"

140mm

R E F E R E N C E

6832cf

Designed and engineered in the USA. Conception et design aux É.U.A.

A valid serial number is required for warranty coverage.Un numéro de série valable est exigé pour la couverture de la garantie.

Features,specifications and appearance are subject to change without notice.

Les dispositifs, les caractéristiques et l’aspect sont sujets au changement sans communication préalable.

Harman Consumer Group,Inc.,250 Crossways Park Drive,Woodbury,NY 11797 USA

www.infinitysystems.com

Infinity is a trademark of Harman International Industries, Incorporated,registered in the United States and/or other countries.

Infinity est une marque commerciale de Harman International Industries,Incorporated, déposée aux États-Unis et/ou dans d’autres pays.

Declaration of Conformity

We,Harman Consumer Group, Inc.

2, route de Tours

72500 Château du Loir

France

declare in o

wn responsibility that the product described in this owner’s

manual is in compliance with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Klaus Lebherz

Harman Consumer Group, Inc.

Château du Loir,France 1/09

6832cf

BL (T-m) 4.80

DCR (ohms) 2.30

Mms (g) 18.03

Sd (sq cm) 178.1

Cms (μm/N) 178

Vas (l) 7.93

Fs (Hz) 88.8

Qes 1.00

Qms 5.95

Qt 0.86

SPECIFICATIONS

6832cf

Type: 6" x 8" \ 5" x 7"

2-Way

Custom Fit

Impedance: 2 Ohms

Power Handling,RMS: 60W

Power Handling,Peak: 180W

Frequency Response: 49Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity car audio retailer can help you determine the length

of your warranty.To register your product,please visit us at www.infinitysystems.com.

SPECIFICATIONS

6832cf

Type: 6" x 8" \ 5" x 7"

2-Way

Custom Fit

Impedance: 2 Ohms

Power Handling,RMS: 60W

Power Handling,Peak: 180W

Frequency Response: 49Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity car audio retailer can help you determine the length

of your warranty.To register your product,please visit us at www.infinitysystems.com.

SPECIFICATIONS

6832cf

Type: 6" x 8" \ 5" x 7"

2-Way

Custom Fit

Impedance: 2 Ohms

Power Handling,RMS: 60W

Power Handling,Peak: 180W

Frequency Response: 49Hz – 21kHz

Sensitivity (2.83V, 1m): 93dB

WARRANTY:

Reference Series speakers are warranted against defects.

The duration of the speaker’s warranty depends on the laws in the country in which it

was purchased.Your local Infinity car audio retailer can help you determine the length

of your warranty.To register your product,please visit us at www.infinitysystems.com.

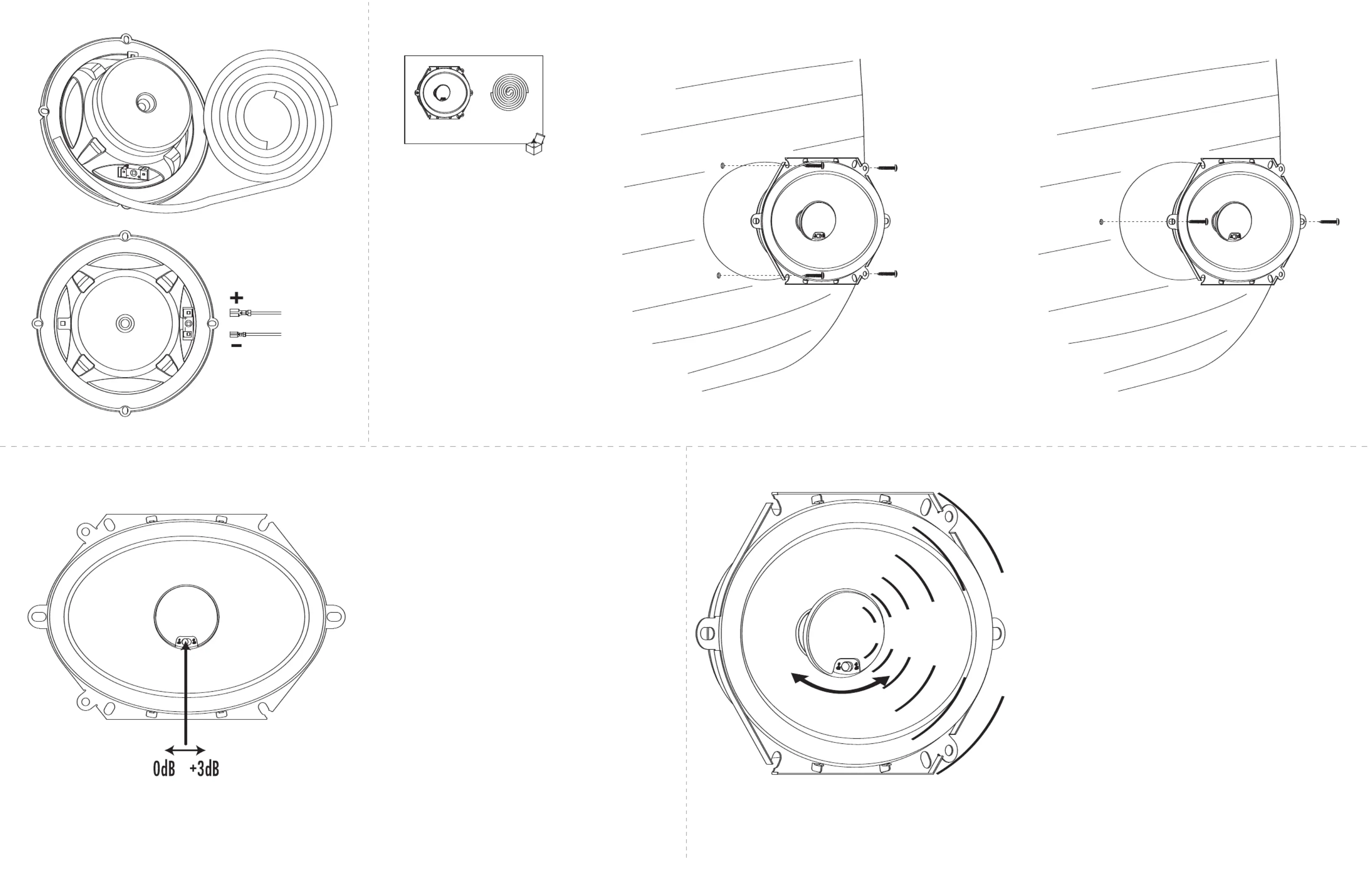

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

TWEETER-LEVEL

CONTROL

This speaker system is equipped with a

tweeter-level switch.The normal setting for

this switch is the “0dB” position, which pro-

vides an apparently “flat” response.Tweeter

output may be increased according to the

user’s preference, or to compensate for off-

axis placement (where the speaker does not

directly face the listening position), by set-

ting the switch to the “+3dB” position.

ROTATING TWEETER

The Reference 6832cf includes a rotating,

angled tweeter mount, which is designed

to allow the tweeter to be aimed toward

the listening position. Since the tweeter’s

output becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging.

Before securing

the grille,

grasp the tweeter housing around

the edge and rotate the tweeter assembly

so that the tweeter faces the listener as

directly as possible.Then the grille may be

permanently secured.

ROTATING TWEETER

The Reference 6832cf includes a rotating,

angled tweeter mount, which is designed

to allow the tweeter to be aimed toward

the listening position. Since the tweeter’s

output becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging.

Before securing

the grille,

grasp the tweeter housing around

the edge and rotate the tweeter assembly

so that the tweeter faces the listener as

directly as possible.Then the grille may be

permanently secured.

ROTATING TWEETER

The Reference 6832cf includes a rotating,

angled tweeter mount, which is designed

to allow the tweeter to be aimed toward

the listening position. Since the tweeter’s

output becomes directional at extremely high

frequencies, aiming the tweeter toward the

listening position will improve high-frequency

response and stereo imaging.

Before securing

the grille,

grasp the tweeter housing around

the edge and rotate the tweeter assembly

so that the tweeter faces the listener as

directly as possible.Then the grille may be

permanently secured.
