PACKAGE CONTENTS

• In-wall outlet with USB

• White decora-style wall plate

• Wall plate screws (2)

• Outlet mounting screws (2)

• Quick Setup Guide

FEATURES

• 2 grounded outlets let you plug in electronics and

appliances

• USB (5V/2.4A) and USB-C (5V/3A, 9V/2.22A) ports

charge USB-enabled electronic devices

• 32W total USB power quickly charges your devices

• Replaces standard duplex outlets

• Fits your existing decora-style outlet cover

Professional installation recommended

SAFETY

Warnings:

• RISK OF ELECTRIC SHOCK — Use only in dry

locations and only indoors.

• DO NOT use with any aquarium equipment.

• DO NOT install in an outlet that is not grounded.

Notes to the installer:

• This device must be installed in accordance with

national and local electrical codes.

• To prevent severe shock or electrocution, always

turn power o at the service panel before working

with wiring.

• This device should be used with copper or

copper-clad wire. DO NOT use with aluminum

wire.

• DO NOT install this device into a shallow wall box.

The wall box must be deep enough to house the

charger outlet. If the box is too shallow, the

charger outlet will not t securely into the wall.

• Professional installation is not a requirement but is

highly recommended

INSTALLING THE OUTLET

Warning: DISCONNECT POWER. Failure to do so

can result in severe injury or death.

1 Make sure that you disconnect power to the

circuit by removing the fuse from the circuit or

turning o the circuit breaker.

2 Remove the wall plate and mounting screws

that cover the old outlet. Save the screws.

3 Carefully remove the existing outlet from the

wall box.

4 Disconnect the wiring from the old outlet. Note

the wire positions.

5 Connect the wires to the new outlet:

• Black lead attaches to the hot wire(s)

• White lead attaches to the neutral wire(s)

• Green lead attaches to the ground wire(s)

Note: Installers should use previous wire positions as

a guide.

Hot (black)

Neutral (white)

Ground (green)

QUICK SETUP GUIDE

In-Wall Outlet

With USB

NS-HW1A1C22

Before using your new product, please read these instructions to prevent any damage.

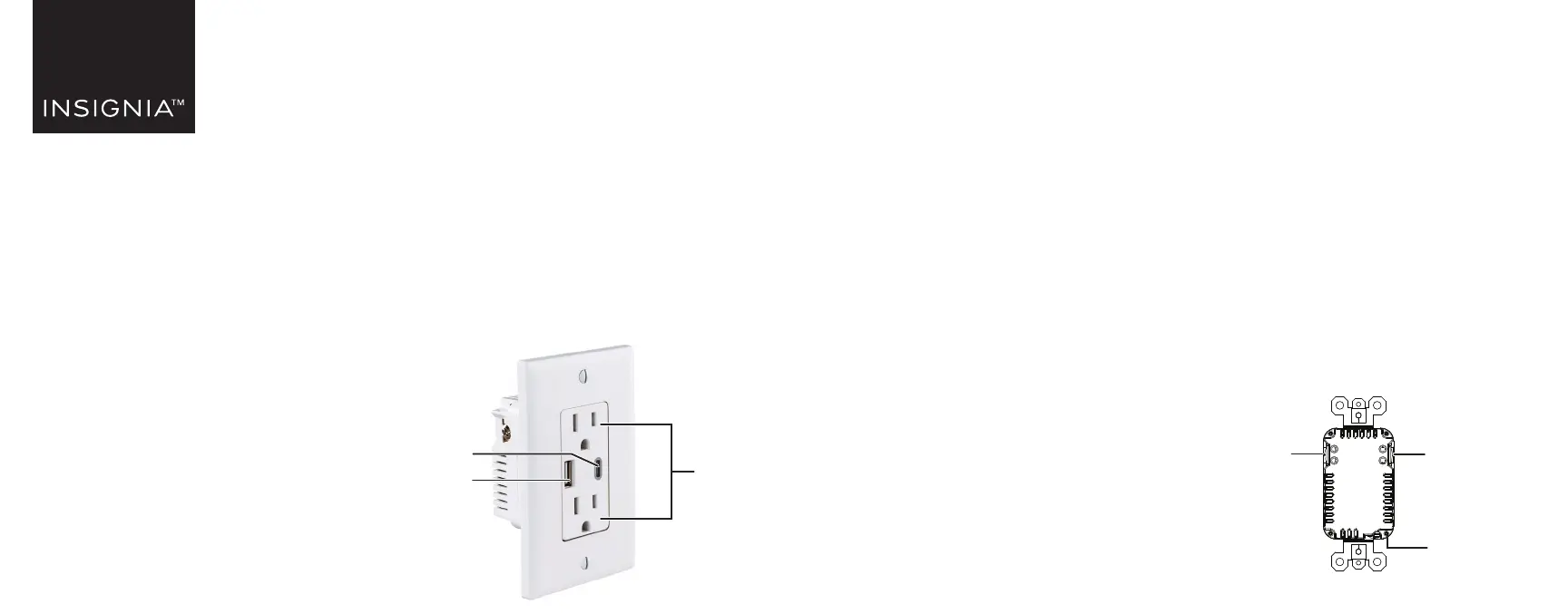

Electrical outlets

USB-C port

USB port

V1 ENGLISH 22-0835

SPECIFICATIONS

Dimensions (H × W × D)

• With plate:

4.7 × 3 × 1.9 in. (120 × 76 × 47.5 mm)

• Without plate:

4.2 × 1.7 × 1.9 in. (106 × 43 × 47.5 mm)

Electrical

• Receptacle rating: 15A, 125VA

• USB rating: USB (5V/2.4A) and USB-C (5V/3A,

9V/2.22A) 32W total output

• Line voltage: 125V AC @ 60Hz

• Wire terminals: #14-#12 AWG

LEGAL NOTICES

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modications not expressly approved by the party

responsible for compliance could void the user's authority to operate the

equipment.

ONE-YEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

CONTACT INSIGNIA:

For customer service, call 877-467-4289

(U.S. and Canada)

www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its aliated companies.

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richeld, MN 55423 U.S.A.

Insert the straightened wire into either of the

two holes of the hot and neutral locations on

the side of the outlet. Power passes between

the two corresponding holes for pass-thru

wiring. Attach the ground wire to the bottom of

the outlet.

6 Tighten every screw

and make sure that no

bare copper wire is

exposed.

7 Carefully insert the

outlet into the wall box.

8 Secure the outlet to the

wall box with the two

long screws (provided).

9 Secure the wall plate to

the outlet with the two

short screws (provided).

10 Restore power by

replacing the fuse or

turning on the circuit

breaker. The outlet is

ready to use.

USING THE OUTLET

• To charge USB devices (like mobile phones or

tablets), plug USB cables into the USB ports on

the outlet and into the USB ports on the devices.

• To power electrical devices (like lamps or

laptops), plug them into the electrical outlets.
