Intel is a registered trademark of Intel Corporation or its

subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property

reserved.

Warning

Read all caution and safety

statements in this document

before performing any of the

instructions. Also see the Intel

Server Board and Server Chassis

Safety Information document at:

http://support.intel.com/support/

motherboards/server/sb/cs-010770

.htm for complete safety information.

Warning

Installation and service of

this product should only be

performed by qualified service

personnel to avoid risk of injury from

electrical shock or energy hazard.

Tools Required

Caution

Observe normal ESD

[Electrostatic Discharge]

procedures during system

integration to avoid possible

damage to server board and/or

other components.

Anti-static

wrist strap

#2 Phillips*

screwdriver

E39546-009

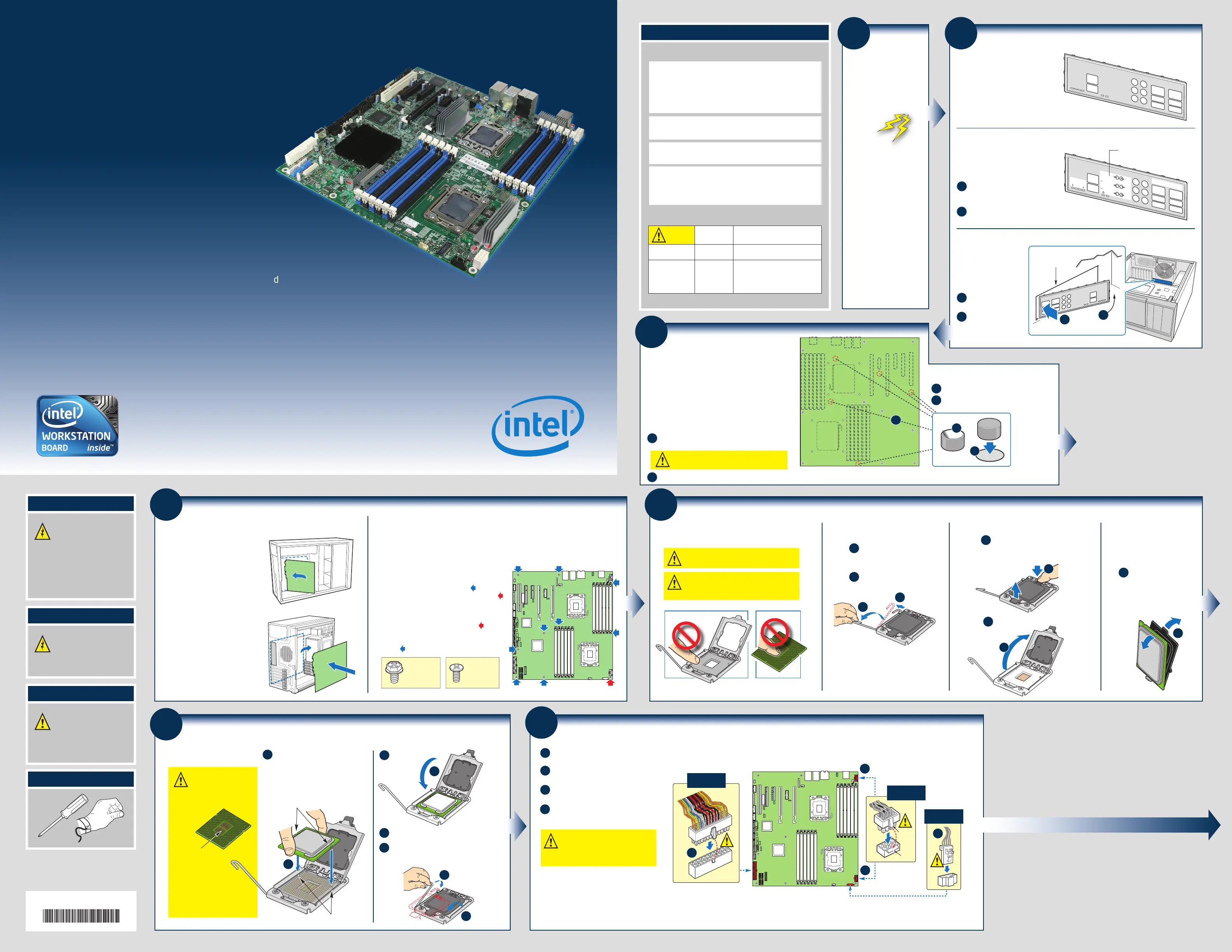

Intel® Workstation Board S5520SC

Quick Start User's Guide

For details on these chassis or to select a third-party

chassis, please visit:

http://support.intel.com/support/motherboards/server.

When installing the server board into a reference chassis,

refer to the reference chassis instructions.

Service Guides are also available on the CDs that accompanied

your Intel® Workstation Board S5520SC.

If you are not familiar with ESD (Electrostatic Discharge) procedures

used during system integration, please see the Intel® Workstation Board S5520SC

Service Guide, available on the Intel® Server Deployment Toolkit 3.0 CD or at

http://support.intel.com/support/motherboards/server/S5520SC/manual.htm

Thank you for buying the Intel® Workstation Board

S5520SC. The following information will help you

integrate your new server board into a server

chassis. The Intel® Workstation Board S5520SC

is designed for use with the Intel® Server

Chassis SC5600Base and the Intel® Server

Chassis SC5650WS.

Preparing

the Chassis

Observe normal ESD

(Electrostatic Discharge)

procedures.

Place your

Intel

Server

Chassis on a flat anti-static

surface to perform the

following integration

procedures. Observe ESD

procedures before

reaching inside to make

server board connections

or install components.

Installing the I/O Shield and Attach I/O Labels

Install the I/O

shield

Attach the Labels to the I/O Shield

Shield installs from inside

of chassis. The labels

should be visible from the

outside of the chassis.

Prepare the I/O shield

Do not remove the three circular

knockouts that are at the edge next to

the openings for the NIC, USB, Serial A,

and 1394 ports. Use caution so you do

not deform the shield.

Insert one side edge of

shield as shown.

Push shield firmly into

chassis opening until

it clicks into place.

Remove the backing from the I/O

shield labels included with your

server board.

Press each label onto the I/O

shield as shown.

Chassis Back

Panel Opening

Intel

Server Chassis

SC5650WS shown

Note: Make sure you install the labels

on the correct side of the I/O shield.

Note the orientation of the cutouts in

the drawing before attaching your labels.

NIC 1

USB 2

USB 3

NIC 2

USB 0

USB 1

MSB

Diagnostic LEDs

LSB

Serial A

1394

Line In

MIC In

Labels on outside

face of I/O shield

Install Workstation

Board Bumpers

Prepare Workstation Board

Rotate board to show underside and hold upright

as shown.

Locate the five circles as shown.

Attach the Bumpers

Remove the backing from each bumper.

Press a bumper onto each of the five circles.

NOTE:

If you are using an Intel

Server Chassis you must install the chassis

bumpers included with the chassis. Refer to your Intel

Workstation Board

and Intel

Server Chassis Quick-Start User’s Guide for proper bumper

installation guidelines. If you are using a non-Intel server chassis that

includes bumpers, refer to the non-Intel server chassis documentation for

the correct bumper installation procedure. If the non-Intel server chassis

does not include bumpers, then you should consult with the chassis vendor

to determine whether bumpers are required or not.

CAUTION: To avoid damage to the board,

do not lay flat with the component side down.

Install the Workstation Board

B. Attach the Workstation Board

A. Insert Workstation Board

Place the board into the chassis, making

sure that back panel I/O openings and

chassis standoffs align correctly.

The Intel

Server Chassis SC5600Base and the Intel

Server Chassis SC5650WS use different screws

to attach the workstation board to the chassis. Use the screws indicated for your chassis.

For a non-Intel server chassis, use the fasteners that came with your chassis.

• When using the Intel

Server Chassis

SC5600Base, remove the rear chassis fan

and then insert the I/O connector

side (back) of the board first.

IMPORTANT NOTE:

If you are using a

non-Intel server chassis, see your

chassis documentation for preparatory

steps prior to server board installation.

Intel

Server Chassis

SC5600Base Shown

Intel

Server Chassis

SC5650WS Shown

I/O Openings

Front

Edge of

Board

Intel

Server

Chassis

SC5650WS

Intel

Server

Chassis

SC5600Base

• Intel

Server Chassis SC5600Base: Attach the

board to the chassis at the nine locations indicated

by the solid blue arrows in the figure [ ] and at

the one location indicated by the solid red arrow [ ].

• Intel

Server Chassis SC5650WS: Push down

firmly to engage the snap-top standoffs at the

location indicated by the solid red arrow [ ].

Use screws to attach the board to the chassis at

the nine locations indicated by the solid blue

arrows [ ].

• When using the Intel

Server Chassis SC5650WS,

remove the front drive bay

and rear chassis fan, and then

insert the front of the board first.

Slide the board back so the I/O

connectors fit through the I/O shield.

CPU 1 Socket

CPU 2 Socket

Minimum Hardware Requirements

To avoid integration difficulties and possible board damage,

your system must meet the following minimum requirements:

•

Processor:

Minimum of one Intel

Xeon

Processor 5500 Series

or one Intel Xeon Processor 5600 Series.

•

Supports maximum 95 watt processor in the Intel

Server

Chassis SC5600Base.

•

Supports maximum 130 watt processor in the Intel

Server

Chassis SC5650WS.

• Memory Type:

Minimum of one 1 GB, 240-pin,

RDIMM or UDIMM, DDR3-800, DDR3-1066, or DDR3-1333.

• AC Power: SSI EPS 12V compliant power supply.

Recommended

minimum of 670 Watts with 3 A of standby

current, or calculate your system power demand with the power

budget tool.

• Heat Sink(s):

Minimum of one active heat sink for the Intel

Server Chassis SC5600Base and SC5650WS.

For a complete list of compatible processors, heat sinks, and memory, see:

http://support.intel.com/support/motherboards/server/s5520SC/

NOTE: Graphics cards with power greater than 75 W must be self-cooled

with exhaust out the back of the chassis.

CAUTION:

Supported

Processor

Supported

Graphics Card

Maximum 95

watt processor

One maximum

150 watt graphics

card in PCI

Express* Slot 6

Maximum 130 watt processor

In the Intel

Server Chassis

SC5600Base

In the Intel

Server Chassis

SC5650WS

ONE maximum 300 watt graphics card in

PCI Express* Slot 6 or TWO maximum

150 watt graphics cards. Empty PCI

Express* Slot 3 when a graphics card is

installed in PCI Express* slot 4.

CPU 1 Socket

CPU 2 Socket

Attach auxiliary power signal

connector to the workstation board.

Attach the CPU 1 power connector

to the workstation board.

Attach the CPU 2 power connector

to the workstation board.

IMPORTANT NOTE:

If you are using a non-Intel

server chassis with an ATX power supply, see

the documentation that came with your chassis

for installation information.

Attach the main power connector to

the workstation board.

Latch

Tab

Main Power

Connector Detail

CPU Power

Connector Detail

Auxiliary Signal

Power Detail

CAUTION:

Note the location of the latch on each

power cable connector and align it with the

matching tab on each workstation board socket.

Go to Side 2

Make Workstation Board Power Connections

Install the Processor(s)

A. Open the Socket Lever

Push the lever handle down

and away from the socket to

release it.

Rotate the lever open all

the way.

B. Open the Load Plate

Push the rear tab with your

finger tip to bring the front

end of the load plate

up slightly.

Open the load plate as shown.

C. Remove the

Processor

Protective Cover

Take the processor out

of the box and remove

the protective shipping

cover.

Cautions:

2. When unpacking a processor, hold by the

edges only to avoid touching the gold

contact wires.

1. When opening a socket, DO NOT TOUCH

the gold socket wires.

Install the Processor(s) ... continued

E. Close Load Plate and Socket Lever

Close the

load plate

all the

way as

shown.

Remove the protective cover after it been

automatically disengaged from the load plate.

Close the socket lever.

CAUTION: The underside

of the processor has

components that may damage

the socket wires if installed

improperly.

Processor must align

correctly with the

socket opening

before installation.

DO NOT DROP processor

into the socket!

Components

Orient the processor with the socket

so that the orientation notches on

the processor align with the two

orientation posts on the socket.

Install the processor as shown.

Orientation Posts

Orientation Notches

Install the ProcessorD.

Produkt Specifikationer

Mærke:	Intel
Kategori:	Bundkort
Model:	S5520SC
Bredde:	304.8 mm
Dybde:	330.2 mm
Produkttype:	Server/Workstation Board
Wi-Fi:	Ingen
Formfaktor:	SSI EEB (12" x 13")
Ethernet LAN-porte (RJ-45):	2
Ethernet LAN:	Ja
Lyd-output kanaler:	7.1 kanaler
Harmoniseret systemkode (HS):	8473301180
USB version:	2.0
Antal USB-porte:	10
Maksimal intern hukommelse:	192.38 GB
On-board grafikkort:	Ja
Processorproducent:	Intel
Automatiseret sporingssystem til vareklassificering (CCATS):	G135162
Ethernet-grænsefladetype:	Fast Ethernet, Gigabit Ethernet
Trusted Platform Module (TPM):	Ja
CPU-konfiguration (maks.):	2
Indlejret tilgængelige muligheder:	Ja
Komponent til:	Workstation
Eksportkontrolklassisfikationsnummer (ECCN):	5A992C
Antal serielle porte:	2
Kabinettype:	Tower
Processor sokkel:	LGA 1366 (Socket B)
Thermal Design Power (TDP):	130 W
Maksimalt antal PCI Express-kanaler:	5
Fejlkorrigerende kode understøttet af processor:	Ja
Samlet antal SATA-stik:	6
FireWire-porte (IEEE 1394):	1
PCI Express x16 slots:	2
Hukommelsesbåndbredde (maks.):	64 GB/sek.
Bundkort chipsæt:	Intel® 5520
Understøttede hukommelsestyper:	DDR3-SDRAM
Understøttede hukommelsesclock-hastigheder:	800,1066,1333 MHz
Antal SATA stik:	6
Motherboard form faktor:	SSI EEB
Understøttede lagerdrev brugerflader:	SATA
RAID-niveauer:	0, 1
Antal understøttede processorer:	2
PCI-slots:	1
Maksimal intern hukommelse understøttet af processor:	192 GB
Hukommelsesbåndbredde understøttet af processor (maks.):	64 GB/sek.
PCI Ekspres x4 slots:	1
Antal DIMM-slots:	12
Trusted Platform Module (TPM) version:	1.2
PCI Ekspres x16 (Gen 2.x) slots:	2
Integreret BMC med IPMI:	Ja
Markedssegment:	Server
Maksimal RDIMM hukommelse:	192 GB
Intel® Xeon serie:	E5500, E5600, L5500, L5600, W5500, X5500, X5600
Understøttelse af Intelligent Platform Management Interface (IPMI):	Ja
Lanceringsdato:	Q1'09
Maksimal UDIMM hukommelse:	192 GB
Antal understøttede processor cores:	2, 4,6
Processor, termisk ydeevne (maks.):	130 W
Intel® Fjernbetjent modul-support:	AXXRMM3
PCI Ekspres x8 (Gen 1.x) slots:	1
Understøttet QPI:	4.8, 5.86, 6.4 GT/s
PCI Ekspres x4 (Gen 1.x) slots:	1
Intel® Server Administrationssoftware:	Ja
Litografi:	45 nm
Produktfamilie:	Legacy server/arbejdsstationsbord
Status:	Discontinued
URL-adresse til yderligere oplysninger:	http://www.intel.com/content/www/us/en/motherboards/server-motherboards/server-board-s5520sc.html
Forventet ophørsdato:	Q2'13
Sidste ændring:	63903513
Understøttet RAID-konfiguration:	Intel Emb RAID (0, 1) with upgrd opt to RAID5
Intel® Intel®ligent Power Node Manager:	Ja
Produktkode navn:	Shady Cove
Produktserie:	Intel S5520SC
Maksimal hukommelse:	192.38 GB
Intel Node Manager:	Ja
Bundkort ARK ID:	36600
Tilgængelige integrerede systemer:	Ja
Understøttelse af PCI:	32 bit/ 33 MHz
Melder om sidste anvendelsesdato:	Friday, January 1, 2010
Sidste ordredato:	Monday, March 1, 2010
Dato for sidste modtagelsesattributter:	Thursday, April 15, 2010
