Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
These instructions are for both the short and long
wheelbase versions of this popular SUV.
Empty out the back of the vehicle so that you have a clean
area to work in.
Remove the pocket in the rear quarter interior trim panel on
the drivers side of the vehicle by pulling it up and out. The
wire to power the Stealthbox® needs to come from this open
area, now would be a good time to run that wire. Leave
enough extra to make it easy to make the connection to the
Stealthbox® before it is permanently mounted.
Continued on Next Page
S T E P 2
Looking down through the hole where the pocket had been,
notice the three studs installed at the factory. These studs
will be used to hold down the enclosure.
S T E P 3
The Triangular Plate will be positioned as shown with center
the hole closest to the stud pointing towards the center of
the vehicle..
SB-GM-ESC(ESV)/10W1v3 INSTR_SKU# 011303
INSTALLATION
D I F F I C U L T Y :
25
OUT
OF
ESTIMATED TIME:
2 HOURS
I N S T A L L A T I O N G U I D E
for the
SB-GM-ESCESV/10W1v3
SB-GM-ESC/10W1v3
SKU#94476-94479 & 94483-94486
2007-2013 Cadillac Escalade, Chevrolet Tahoe/Suburban, & GMC Yukon
OR
Continued on Next Page
SB-GM-ESC(ESV)/10W1v3 INSTR_SKU# 011303

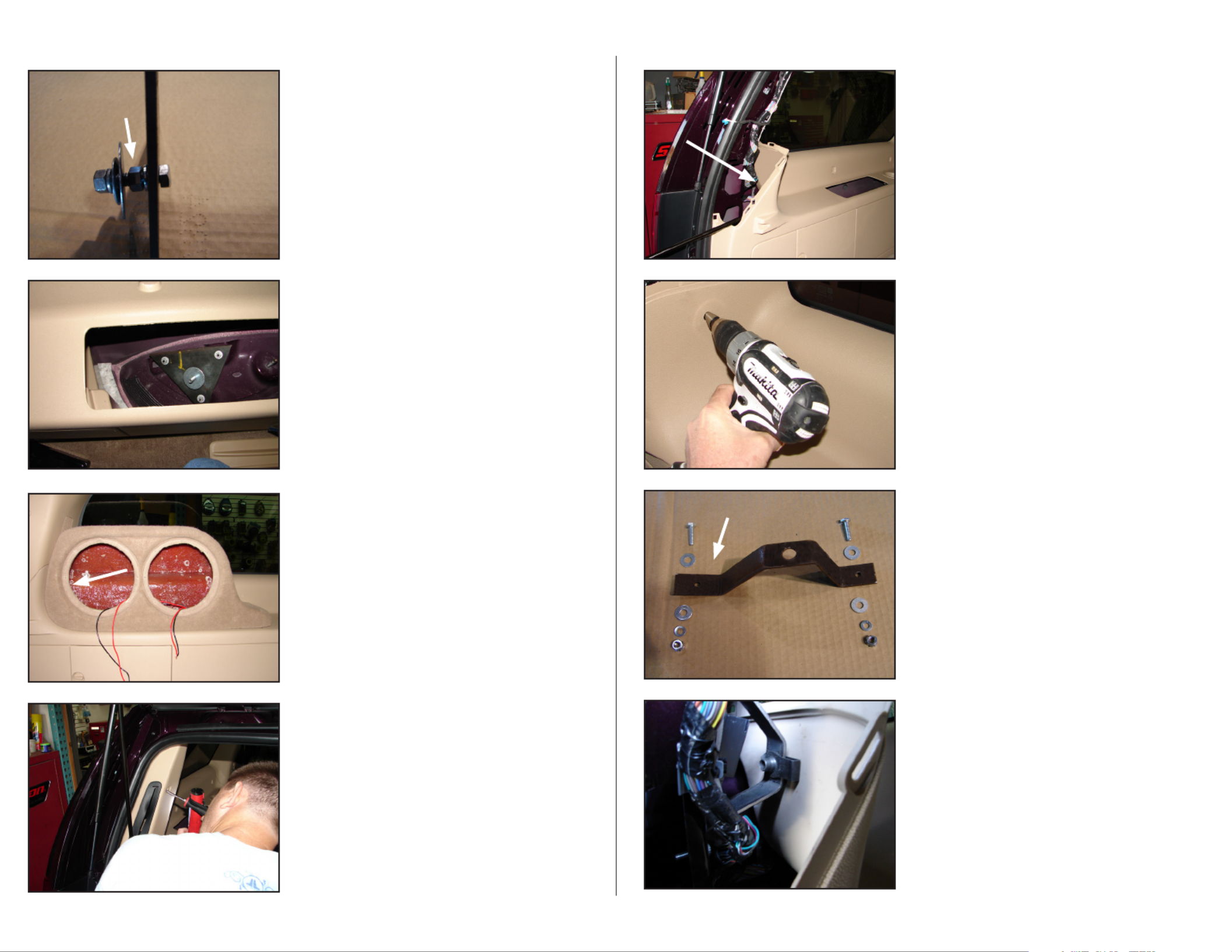

S T E P 7
Remove the upper rear quarter window trim molding.
S T E P 6
Remove the two woofers from the Stealthbox® and, set it
into place, with the extension going into the previous pocket
location.
Inside the Stealthbox®, where the arrow points, use a small
marker to mark the interior panel where the hole in the
enclosure wall lies.
Remove the Stealthbox®
S T E P 5
Install the Triangular Plate as shown, tighten down the
fasteners that secure the Triangular Plate, leave only the large
Flat washer on top of the Hex nut, Split Lock Washer and
3/8-16 x 1-3/4” Hex Head Bolt. The remaining Flat Washer,
Split Lock Washer and Hex Nut will be installed inside the
enclosure.
S T E P 4
This is a side view of the Bracket shown in STEP 3 with the
included hardware shown for illustration purposes. Install
the 3/8-16 x 1-3/4” Hex Head Bolt through the Triangular
Plate as shown, tighten the Hex Nut that the arrow points
towards. The hardware shown to the left of the 3/8 x 2”
Fender Washer will be inside the Stealthbox® once the
installation is complete.
Page 2 • JL Audio, Inc 2014
S T E P 9
Drill the mark made in enlarge the hole to 1/2 inch. STEP 6,
****CAUTION****
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a
reduction in your weekly pay.
Always wear eye protection when drilling!
S T E P 1 1
Bolt the bottom hole of the Custom Bracket to the rear
pillar through the hole where the wiring harness had been
secured (see STEP 8). Slide the supplied 3/8-16 Speed Nut
onto the Custom Bracket as shown, align the hole in the
Custom Bracket with the hole in the rear quarter trim panel.
S T E P 1 0
The 1/4” hardware will be installed in the order as shown as
the custom bracket is installed in the vehicle.
NOTE: The arrow points to the upper end of the bracket.
S T E P 8
The upper mount for the lift arm for the tailgate must be
disconnected as shown in order to remove the trim panel.
The wiring harness that runs along the rear pillar has a white
plastic plug (see arrow) that pushes through a hole in the
pillar to locate it. Pull the plug as this hole will be used to
secure the lower end of the Custom Bracket shown in
STEP 10.
