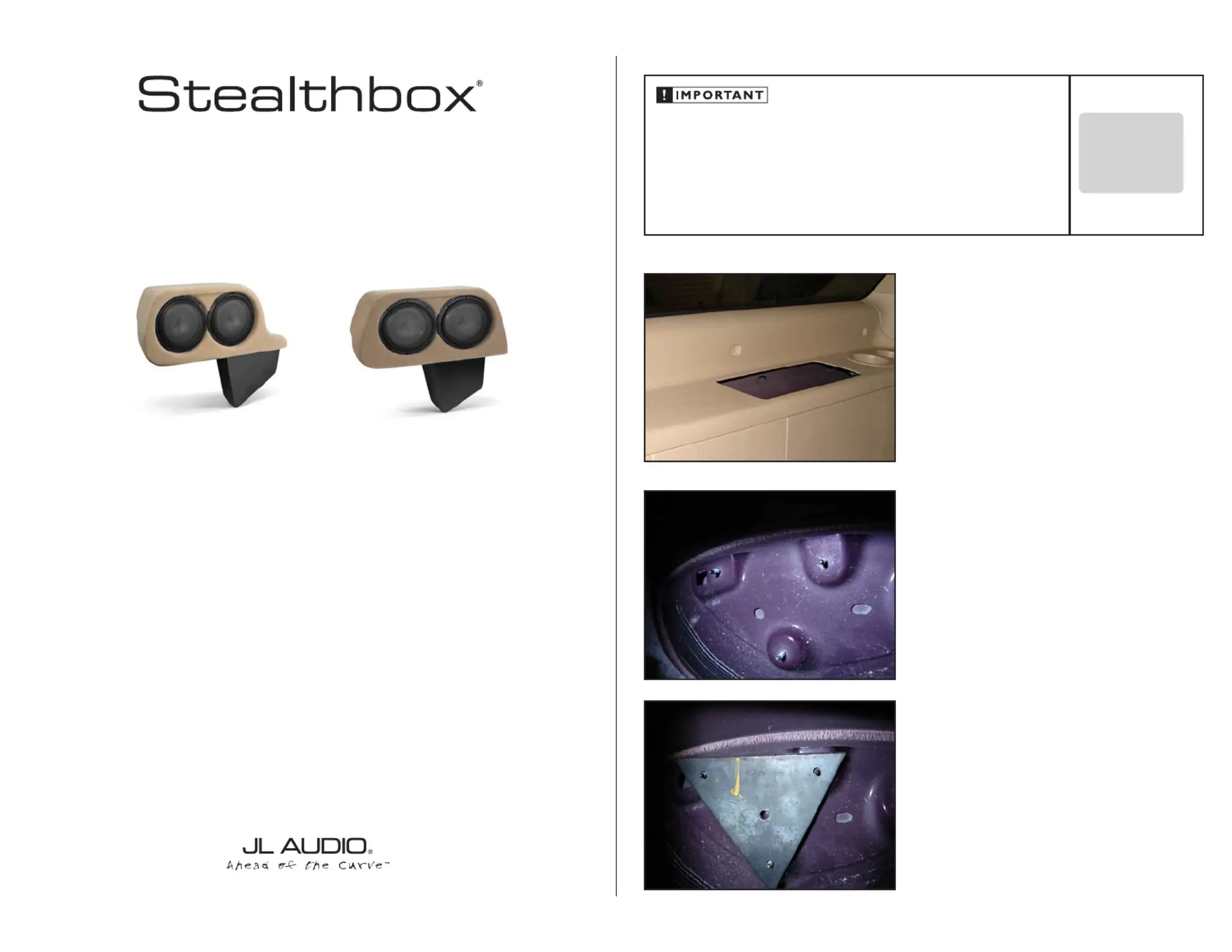

Thank you for choosing a JL Audio Stealthbox

for your automotive sound system. With proper

installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox

installed by your authorized JL Audio

dealer. The installation professionals employed by your dealer have the necessary tools and experience

to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage

extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you

prefer to perform your own installation, please read this installation guide completely

before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox

be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

S T E P 1

These instructions are for both the short and long

wheelbase versions of this popular SUV.

Empty out the back of the vehicle so that you have a clean

area to work in.

Remove the pocket in the rear quarter interior trim panel on

the drivers side of the vehicle by pulling it up and out. The

wire to power the Stealthbox® needs to come from this open

area, now would be a good time to run that wire. Leave

enough extra to make it easy to make the connection to the

Stealthbox® before it is permanently mounted.

Continued on Next Page

S T E P 2

Looking down through the hole where the pocket had been,

notice the three studs installed at the factory. These studs

will be used to hold down the enclosure.

S T E P 3

The Triangular Plate will be positioned as shown with center

the hole closest to the stud pointing towards the center of

the vehicle..

SB-GM-ESC(ESV)/10W1v2 INSTR_SKU# 011303

INSTALLATION

D I F F I C U LT Y :

OU T

ESTIMATED TIME:

2 HOURS

I N S T A L L A T I O N G U I D E

for the

SB-GM-ESCESV/10W1v2

SB-GM-ESC/10W1v2

SKU#94476-94479 & 94483-94486

2007+

Continued on Next Page

SB-GM-ESC(ESV)/10W1v2 INSTR_SKU# 011303

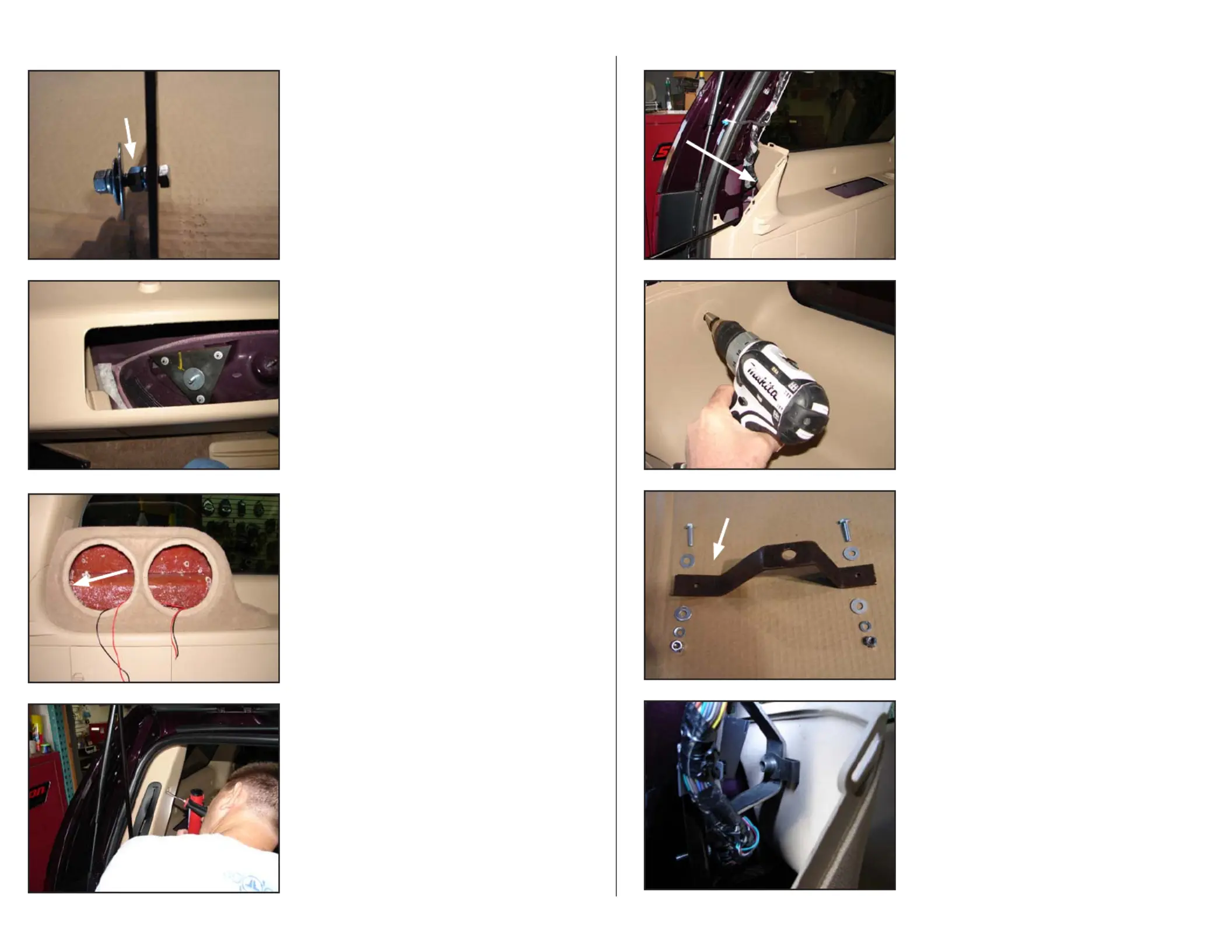

S T E P 7

Remove the upper rear quarter window trim molding.

S T E P 6

Remove the two woofers from the Stealthbox® and, set it

into place, with the extension going into the previous pocket

location.

Inside the Stealthbox®, where the arrow points, use a small

marker to mark the interior panel where the hole in the

enclosure wall lies.

Remove the Stealthbox®

S T E P 5

Install the Triangular Plate as shown, tighten down the

fasteners that secure the Triangular Plate, leave only the large

Flat washer on top of the Hex nut, Split Lock Washer and

3/8-16 x 1-3/4” Hex Head Bolt. The remaining Flat Washer,

Split Lock Washer and Hex Nut will be installed inside the

enclosure.

S T E P 4

This is a side view of the Bracket shown in with the STEP 3

included hardware shown for illustration purposes. Install

the 3/8-16 x 1-3/4” Hex Head Bolt through the Triangular

Plate as shown, tighten the Hex Nut that the arrow points

towards. The hardware shown to the left of the 3/8 x 2”

Fender Washer will be inside the Stealthbox® once the

installation is complete.

Page 2 • JL Audio, Inc 2009

S T E P 9

Drill the mark made in enlarge the hole to 1/2 inch. STEP 6,

****CAUTION****

Before drilling, always make sure that you are not

going to be drilling into any gas lines, brake lines,

tires, transmission lines, electrical wiring, exhaust

systems or anything else that might cause a

reduction in your weekly pay.

Always wear eye protection when drilling!

S T E P 1 1

Bolt the bottom hole of the Custom Bracket to the rear

pillar through the hole where the wiring harness had been

secured (see STEP 8). Slide the supplied 3/8-16 Speed Nut

onto the Custom Bracket as shown, align the hole in the

Custom Bracket with the hole in the rear quarter trim panel.

S T E P 1 0

The 1/4” hardware will be installed in the order as shown as

the custom bracket is installed in the vehicle.

NOTE: The arrow points to the upper end of the bracket.

S T E P 8

The upper mount for the lift arm for the tailgate must be

disconnected as shown in order to remove the trim panel.

The wiring harness that runs along the rear pillar has a white

plastic plug (see arrow) that pushes through a hole in the

pillar to locate it. Pull the plug as this hole will be used to

secure the lower end of the Custom Bracket shown in

STEP 10.
