SB-H-PIO7/10TW3 INSTR_SKU# 011461

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.

With proper installation, your new vehicle-specific enclosed subwoofer system

will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your

authorized JL Audio dealer. The installation professionals employed by your

dealer have the necessary tools and experience to disassemble and reassemble

your vehicle properly. If you prefer to perform your own installation, please read

this installation guide completely before beginning the process.

If you choose to perform the installation yourself, it is absolutely

vital that the Stealthbox

be properly mounted to the vehicle

according to these instructions. Failure to mount the enclosure

properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the

enclosure caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a

collision or sudden deceleration.

INSTALLATION

DIFFICULTY:

ESTIMATED TIME:

2 HOURS

OUT

Enclosure Type: Sealed

Driver Type: 10TW3-D4

Nominal Impedance: 2 ohms

Continuous Power Handling: 400 watts (RMS method)

I N S T A L L A T I O N G U I D E

for the

SB-H-PIO7/10TW3

SKU# 94629

2015 & Up Honda Pioneer 700

I N C L U D E D H A R D W A R E

Continued on Next Page

Page 2 • JL Audio, Inc., 2016

SB-H-PIO7/10TW3 INSTR_SKU# 011461

Note: For optimum performance, JL Audio recommends applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.

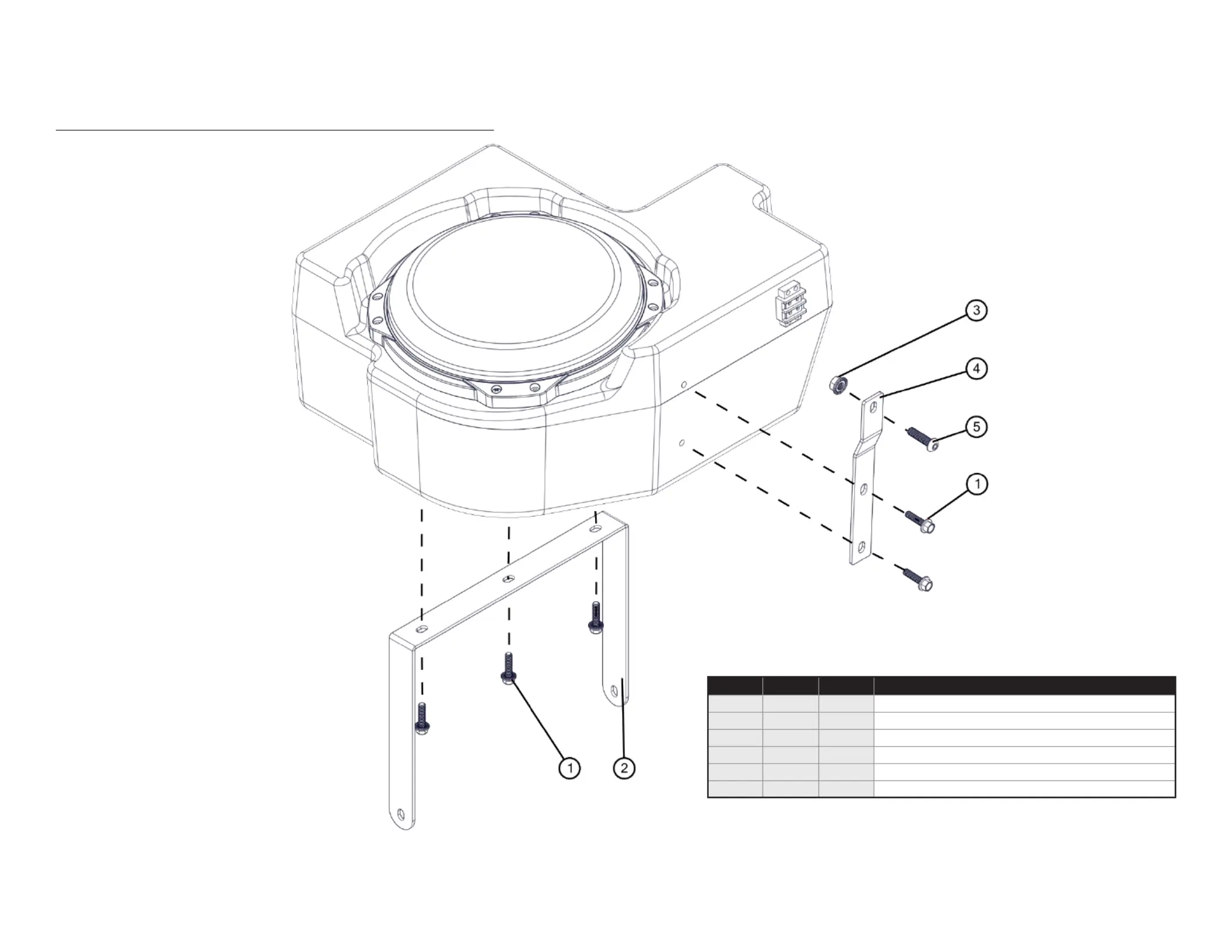

BOM ID Qty SKU Description

1 5 153729 1/4 - 20 x 1” Stainless Steel Serrated Flange Head Bolt

2 1 153757

U Bracket

3 1 153755 M8 - 1.25 Stainless Steel Serrated Flange Lock Nut

4 1 153758 Side Bracket

5 1 153756

M8 - 1.25 x 30 mm Stainless Steel Button Head Cap Screw

- 1 150249 Foam Strips (not shown)
