Stealthbox

I N S T A L L A T I O N G U I D E

S B - I N - G 3 5 C P E / 1 0 W 1 v 2 / B K , J L AU D I O , I n c 2 0 0 5

S h e e t S K U # 0 1 1 1 9 6 R e v i s i o n 5 / 9 / 2 0 0 5 Pag e 1

for the

SB-IN-G35CPE/10W1v2/BK

(2003-Up Infiniti G35 Coupe)

This Stealthbox is a product which

requires professional installation skills and

tools.

Please read this installation guide thor-

oughly before beginning the project. It

will guide you step by step through the

installation. Several of the steps in this

process may require two people to

accomplish.

It is absolutely vital that the enclosure

be properly mounted to the vehicle

according to these instructions. Failure

to mount the enclosure properly pres-

ents two problems: 1) The sub-bass

performance will suffer due to the

movement of the enclosure caused by

the force exerted by the woofer(s) and

2) A loose enclosure presents a serious

safety hazard in the event of a collision

or sudden deceleration.

Please enjoy your JL Audio Stealthbox

responsibly.

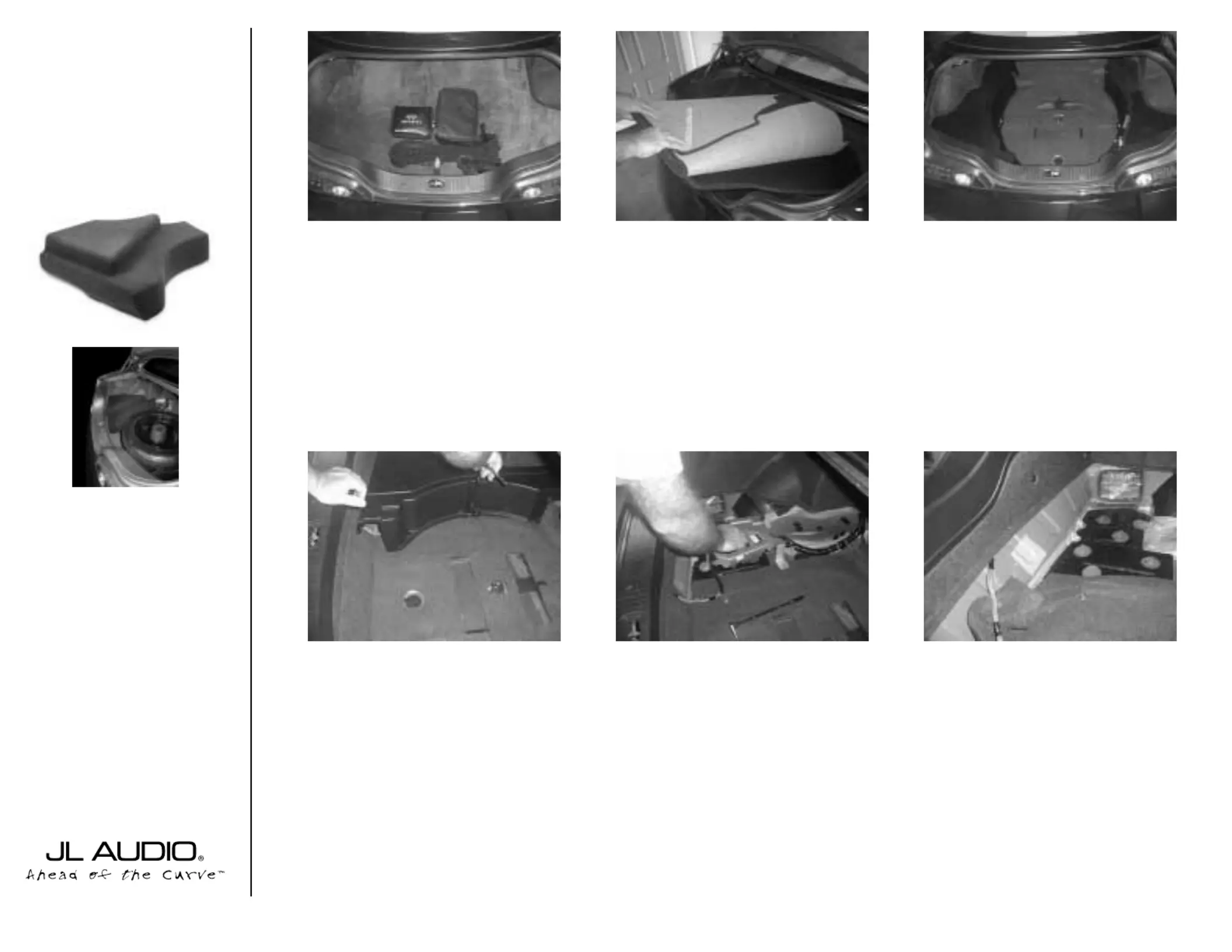

STEP 1:

Remove any contents from the

trunk.

STEP 2:

Remove the trunk flooring.

STEP 3:

Remove the spare tire and foam

pad.

STEP 4:

Remove the driver’s side black plastic

floor stand.

Replace bolts A & B back into the floor.

STEP 5:

Remove the factory amp.

STEP 6:

Place the supplied wax square onto

the bottom area of the third indentation.

These indentations are located on the rear

wall of the trunk, just below the opening.

START

HERE

Continued on Next Page ➔

w w w . j l a u d i o . c o m

➔

➔ ➔

➔➔➔

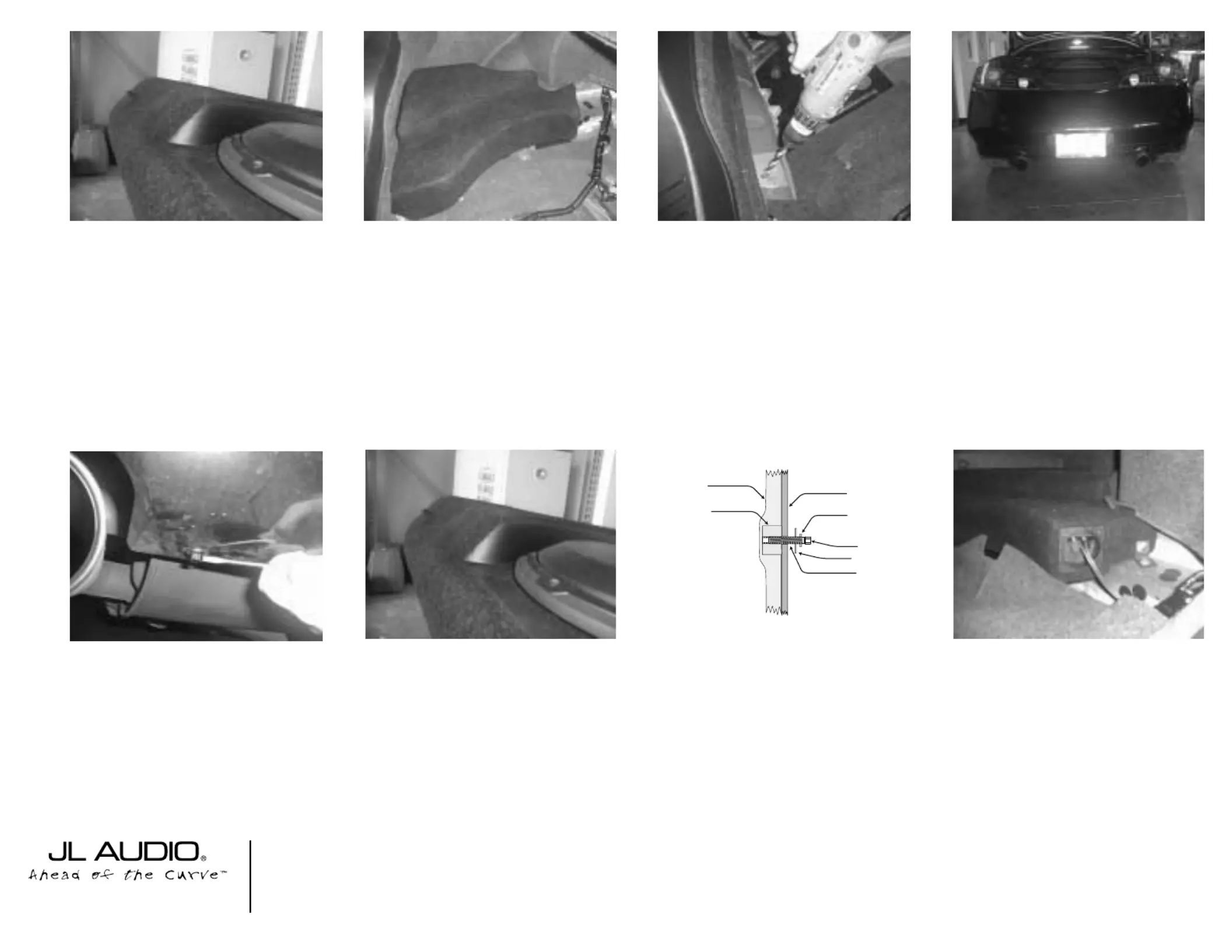

STEP 7: Thread in the supplied 2-1/4”Socket

Cup Set Screw into the threaded insert of the

enclosure, leaving 1/2”exposed.

STEP 11: Place the blunt end of a flat blade screw

driver between the round button and the washer of

the snap.Twisting the screw driver, will force the but-

ton to pop out, as pictured.

Remove both snap assemblies.

Cont.

From

Page

Continued on Next Page ➔

➔

STEP 8: Place the Stealthbox into position.

Press down firmly on the rear of the enclosure.

Remove the Stealthbox.

STEP 12: Unthread the Socket Cup Set Screw to

expose 1-3/4”.

Place the Stealthbox back into the trunk area.

Guide the Socket Cup Set Screw through the drilled

hole from STEP 9.

➔

STEALTHBOX WALL

REAR SEAT SUPPORT

THREADED INSERT

LOCK WASHER

FLAT WASHER

SOCKET CUP SET SCREW

HEX NUT

STEP 13: From under the vehicle, locate the

Socket Cup Set Screw.You will need to slightly pull

out the rear bumper cover to gain access to the

Socket Cup Set Screw.

Apply the supplied Fender Washer, Flat Washer, Lock

Washer and Hex Nut onto the Socket Cup Set

Screw, as pictured.

STEP 14: (A) Attach the supplied L-bracket onto

the Stealthbox with using the supplied

Spilt Lock

Washer, Flat Washer and 3/8-16x1”Hex Tap

Bolt

(B) Attach the other side of the L-bracket to the

factory threaded hole, with the supplied

Spilt Lock

Washer, Flat Washer and 8mm x16mm Hex

Bolt.

STEP 9: *CAUTION*

Before drilling, make sure that you are not going to

be drilling into any gas lines, brake lines, transmission

lines, electrical wiring, transfer case(4x4 vehicles) or

anything else that might cause a reduction in your

weekly pay. Always wear eye protection when drilling.

With the use of a 1/2”drill bit and drill. Drill out the

floor at the impression on the wax square.

Do not allow the drill bit to totally insert into this

drilled hole.The rear bumper cover is a few inches

behind this trunk wall.

STEP 10: Look under the rear bumper.You will

see a pair of plastic panel snaps.

S B - I N - G 3 5 C P E / 1 0 W 1 v 2 / B K , J L AUD I O, I n c 2 0 0 5

S h e e t S K U # 0 1 1 1 9 6 R e v i s i o n 5 / 9 / 2 0 0 5 Pag e 2

w w w . j l a u d i o . c o m

➔
