I N S T A L L A T I O N G U I D E

for the

SB-GM-SLVCRW/10TW3

SKU# 94574

2001 - 2006 Chevrolet Silverado/GMC Sierra Crew Cab

2007 Crew Cab “Classic” Trucks

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.

With proper installation, your new vehicle-specific enclosed subwoofer system

will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your authorized

JL Audio dealer. The installation professionals employed by your dealer have the necessary tools

and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your

own installation, please read this installation guide completely before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital that

the Stealthbox ® be properly mounted to the vehicle according to these

instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure

caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a collision

or sudden deceleration.

Continued on Next Page

SB-GM-SLVCRW/10TW3 INSTR_SKU# 011364

INS TALLATION

D I F F I C U L T Y :

OUT

ESTIMATED TIME:

2 HOURS

S P E C I F I C A T I O N S

Enclosure Type: Sealed

Driver Type: 10TW3-D4 (x 2)

Nominal Impedance: 4 ohms

Continuous Power Handling: 800 watts (RMS method)

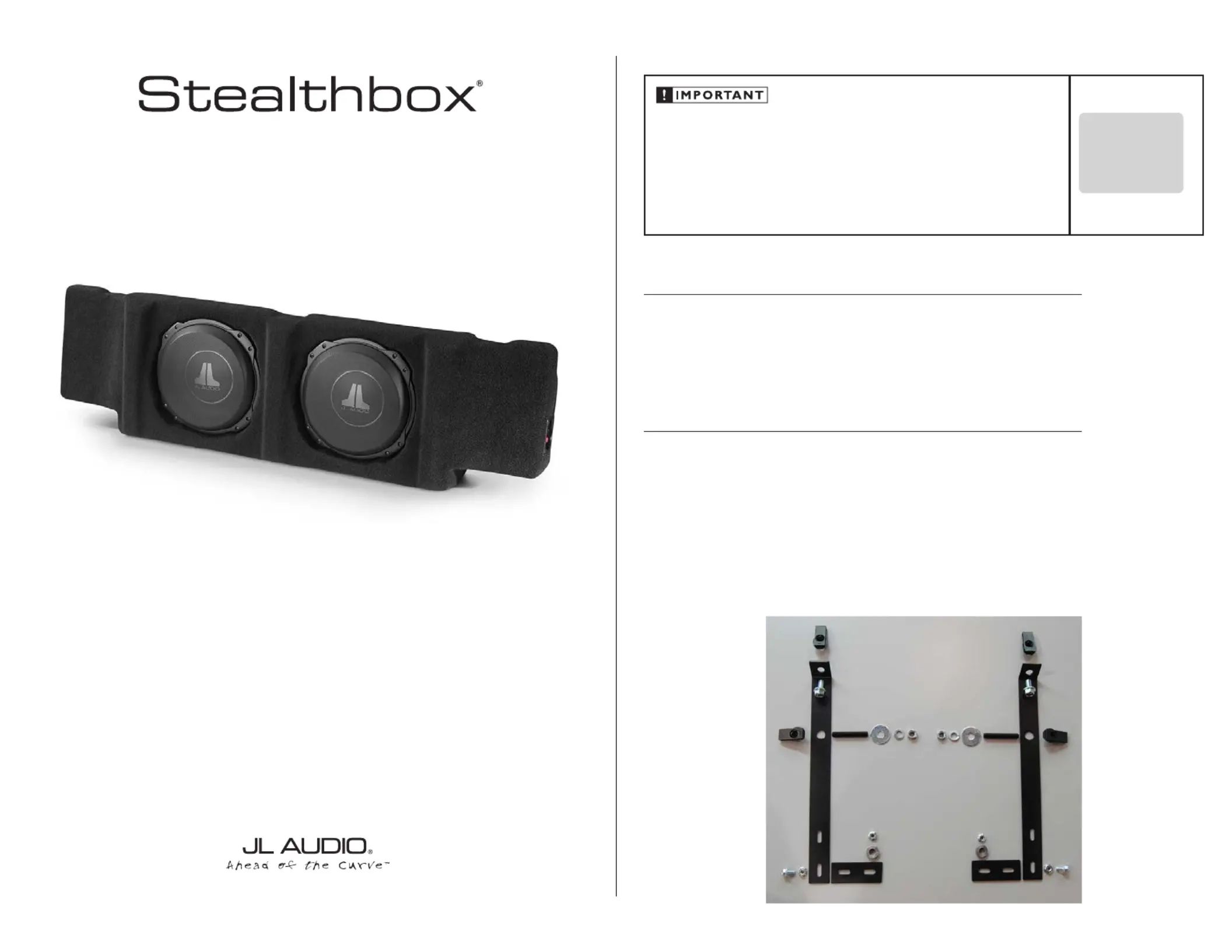

I N C L U D E D H A R D W A R E

(2) Large Bracket

(2) Small Bracket

(4) U-Nut

(2) 3/8 - 16 x 2-1/4” Set Screw

(2) 1/4” Spacer

(2) 1/4 - 20 x 1/2” Flange Bolt

(2) 1/4 -20 Flange Nut

(2) 3/8 - 16 x 3/4” Flange Bolt

(2) 3/8” Fender Washer

(2) 3/8” Lock Washer

(2) 3/8” Hex Nut

SB-GM-SLVCRW/10TW3 INSTR_SKU# 011364

P O W E R R E C O M M E N D A T I O N

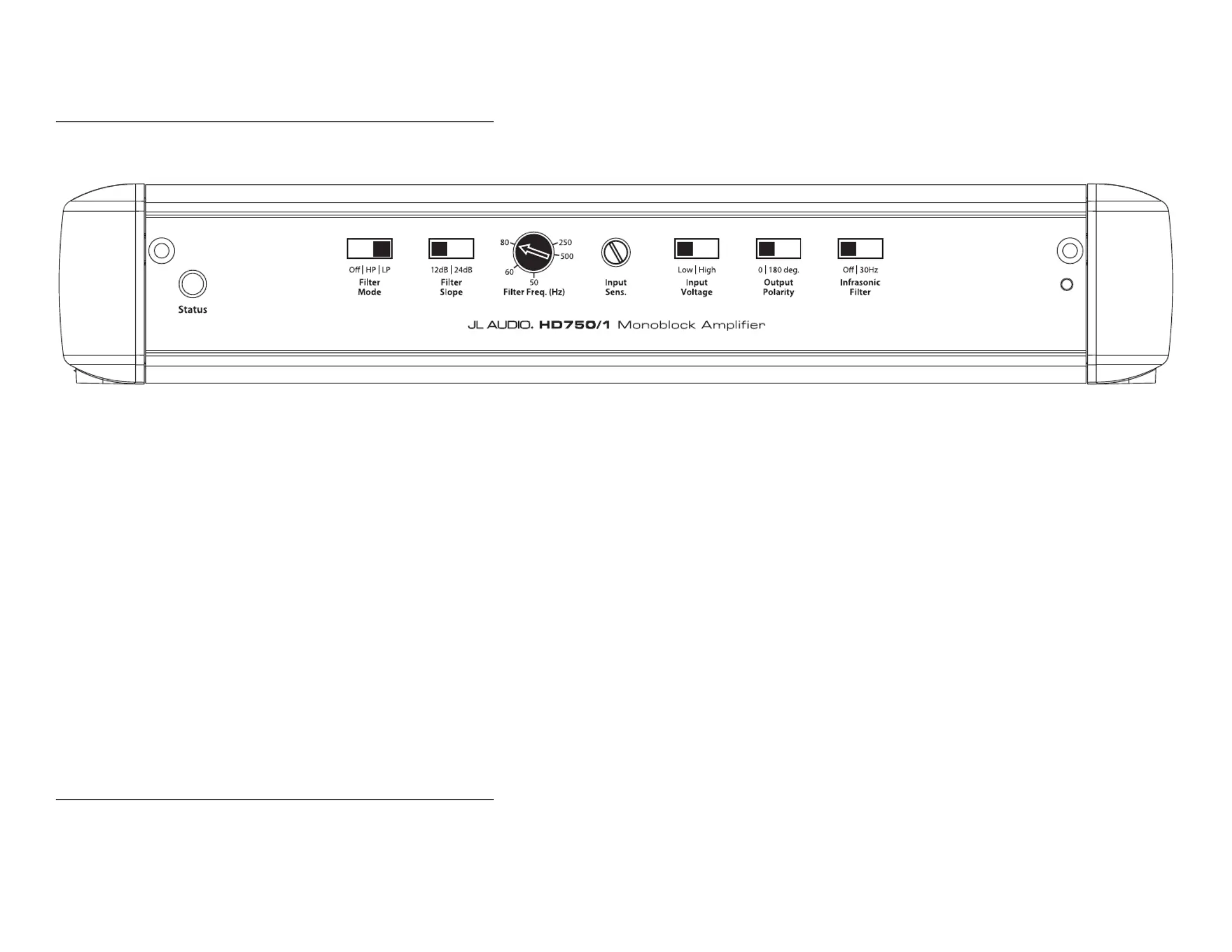

JL Audio recommends high quality ampliers such as the JL Audio HD750/1. The diagram below shows the recommended crossover settings for the HD750/1. For a detailed description of the amplier settings, consult the

owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.

C O N N E C T I O N S

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplier. Other kits

are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplier. JL Audio
