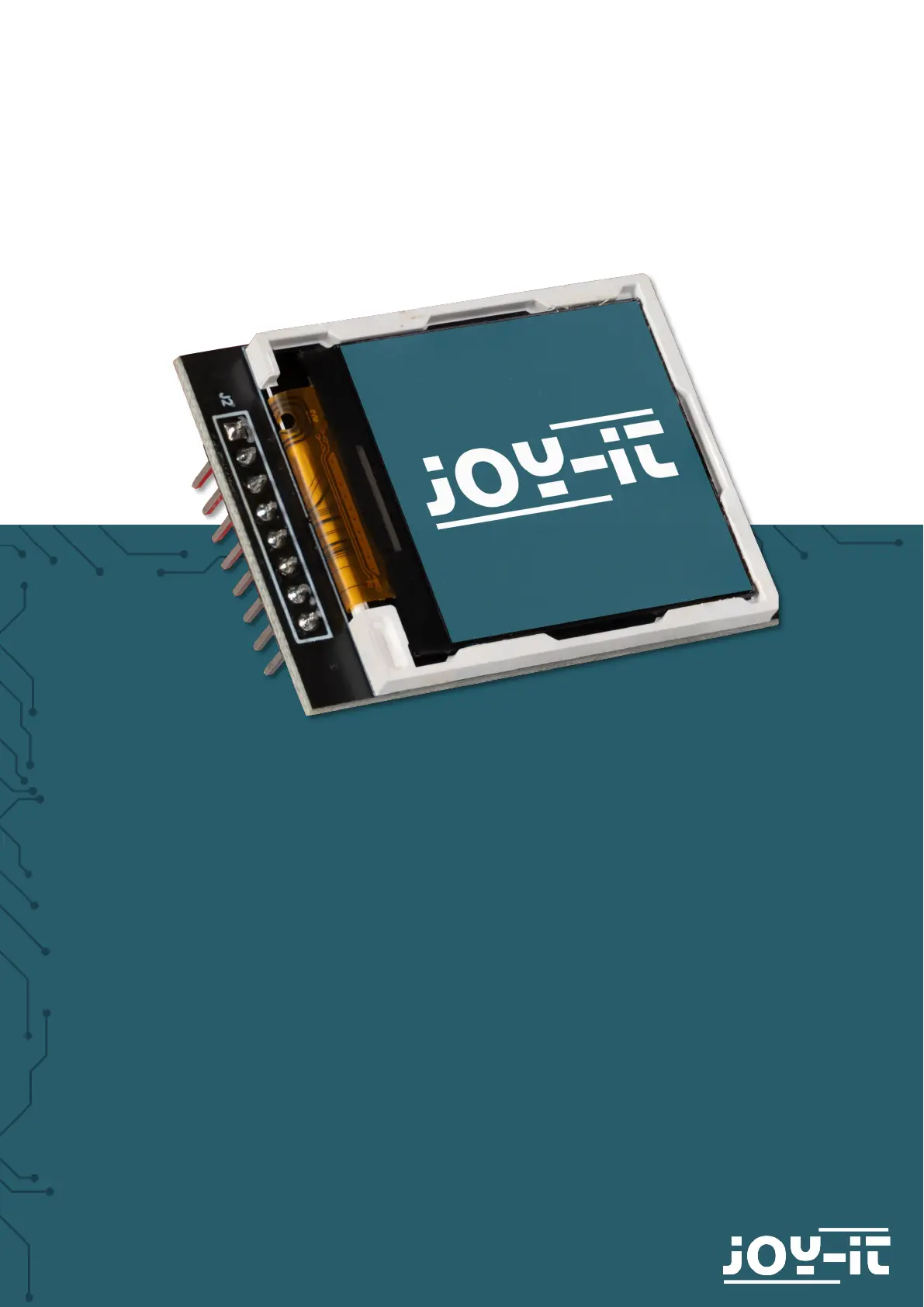

1,44" HD IPS TFT LCD
SBC LCD02-
1. GENERAL INFORMATION
Dear customer,
thank you for choosing our product. In the following, we will show you
how to use this device.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
2. USGAE WITH ARDUINO
2.1 Connection
Arduino Display
VCC LED
Pin 13 SCK
Pin 11 SDA
Pin 5 A0
Pin 3 Reset
Pin 4 CS
GND GND
VCC VCC
Since the display works with a 3 V logic level and most Arduinos
work with 5 V, we use an Arduino Pro Mini 3.3 V in this example.
If you want to use an Arduino with a logic level of 5 V, such as an Ardui-
no Uno, you have to reduce all data lines leading from the Arduino to
the display from 5 V to 3.3 V with a voltage translator.
