Radio Management Radio push button
Ref.-no.: ...1561.07 F...
Operating Instructions
Radio push button R2.1
1. Function
The pushbutton with radio-control receiver permits radio-controlled or
manual switching and dimming of lamps. The starting brightness can be
stored in the device as memory brightness. The pushbutton with radio-
control receiver is plugged onto one of the following inserts:
- Universal touch dimmer 1254 UDE
- Standard touch dimmer 1225 SDE
- Relay insert single-channel 1201 URE
- Relay insert two-channel 1202 URE
- Tronic switching insert 1254 TSE
- LV triac switching insert 1244 NVSE
- Touch control unit 1240 STE
After reception of a data telegram from a programmed radio-control
detector and corresponding darkness, the pushbutton with radiocontrol
receiver is switched on for about 1 minute with the preset memory
brightness. The pushbutton with radio-control receiver can be programmed
to identify up to 30 radio channels.
Lightscapes
The radio-control pushbutton can be included in up to five lightscapes
which are activated with the corresponding radio-control transmitters (e.g.
hand-held transmitter ‘Komfort’) and stored. The desired lightscape key
must be programmed beforehand into the radio-control pushbutton.
All-ON / All-OFF
The programming of a radio channel (e.g. hand-held transmitter ‘Komfort’)
always includes the simultaneous and automatic storage of the functions of
the All-ON or All-OFF key.The All-ON or All- OFF key of a radio-control
transmitter switches the load connected to the switching actuator on or off.
Light control
In combination with a programmed radio-control presence detector or light
sensor, the radio-control pushbutton can be used for lighting control
functions. For more information, refer to the operating instructions of the
radio presence detector or light sensor.
Stand: Mai-07 325 276 13
Radio Management Radio push button
Ref.-no.: ...1561.07 F...
Important
The present instructions describe the functions of the radio-control
pushbutton without lighting control. More information on light control with a
presence detector or a light sensor is set out in the operating instructions
for these devices.
2. Warning
Caution: The installation and assembly of electrical equipment may only be
performed by a skilled electrician.
3. Fitting
The radio-control pushbutton can only be operated in conjunction with the
inserts listed under ‘Functions’. Connection and fitting are described in the
operating instructions of the insert.
Procedure

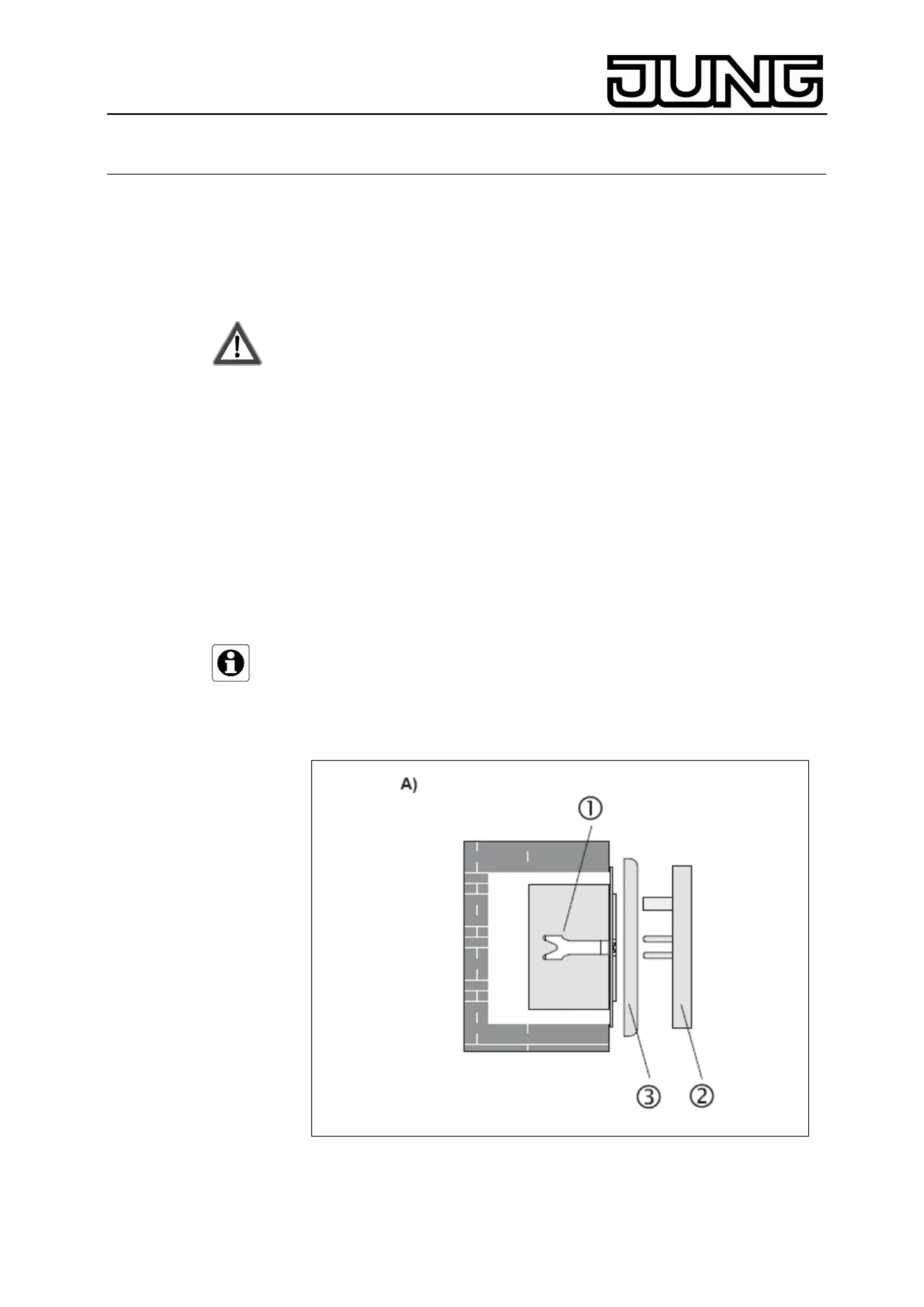

1. Install the selected insert (1)in a flush-mounting box (deep model
recommended), the connecting terminals of the insert pointing downwards.
2. Plug the radio-control pushbutton (2)together with frame (3)onto the
insert while the mains voltage is disconnected.
Important
• The distance from electrical appliances (e.g. microwave oven, hi-fi
and TV sets) must be at least 0.5 m.
• To prevent saturation of the radio receiver (actuator), the
radiocontrol pushbutton must be at least 1 m away from the
nearest transmitter.
2
