Side 1/6

Push-button module 24VAC/DC

Light Management

Push-button module 24 V AC/DC, 1-gang

Art. No. ..5212 TSM

Push-button module 24 V AC/DC, 2-gang

Art. No. ..5224 TSM

Push-button module 24 V AC/DC, 3-gang

Art. No. ..5236 TSM

Push-button module 24 V AC/DC, 4-gang

Art. No. ..5248 TSM

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. During installation and cable routing, comply with the

regulations and standards which apply for SELV circuits.

Use only the enclosed plastic screws. Device fault possible due to electrostatic

discharge.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

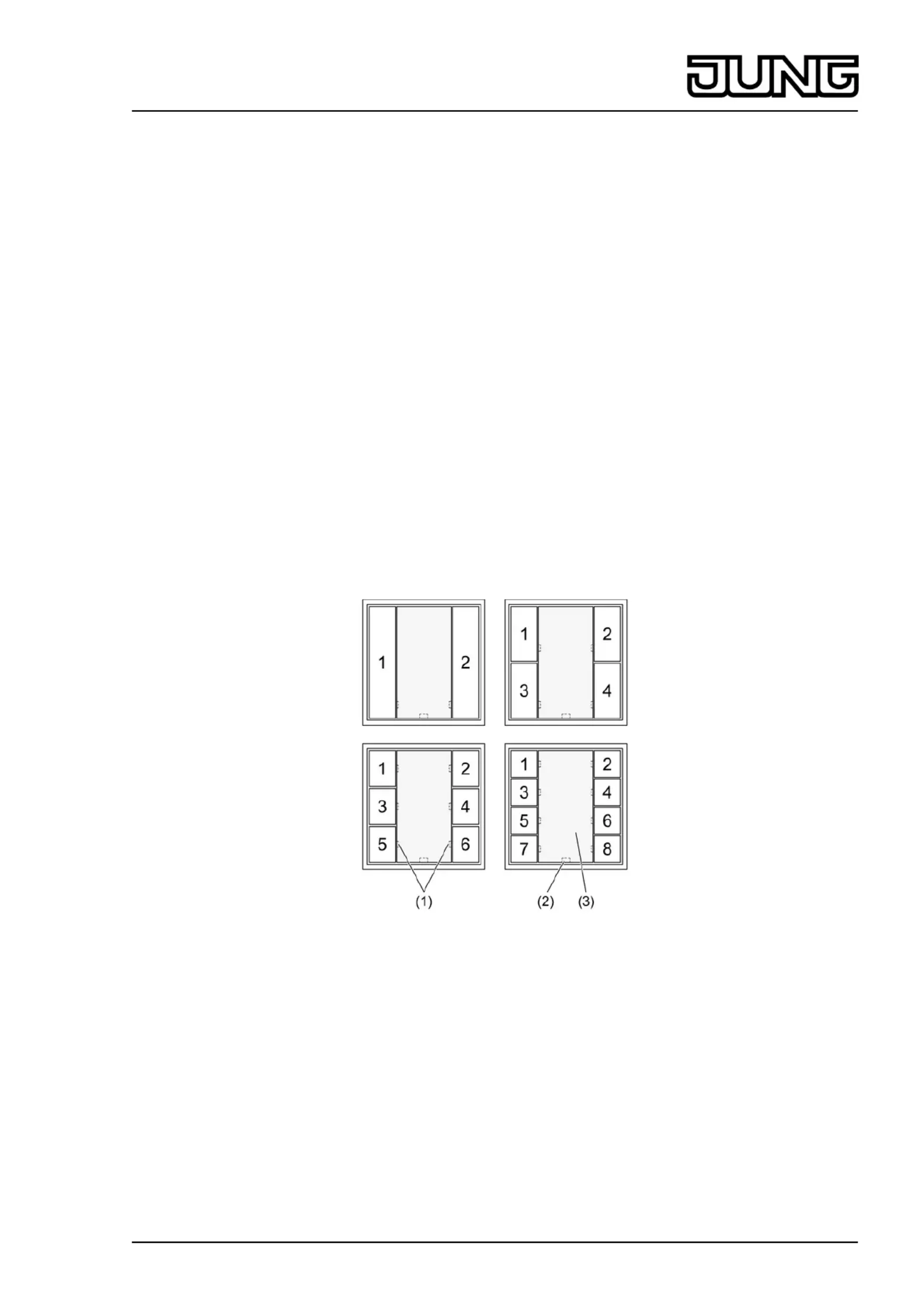

Figure 1: Button arrangement

(1) Status LED

(2) Operation LED

(3) Labelling field

3 Function

Intended use

- Connection to the Universal relay station, the Universal dimming station (see chapter 6.2.

Accessories) or other SELV control systems.

- Installation in appliance box according to DIN 49073.

1/6

32587903

J:0082587903

25.06.2013

Product characteristics

- Functions: switching, push-button control, dimming, blind control in conjunction with control

systems.

- Completion with keyset (see chapter 6.2. Accessories)

- Status LED per button, red

- Operation LED, in red, green or blue according to choice

- Labelling field

i When these push-button sensors are used with the PHC system supplied by PEHA, the

acknowledgment LED function cannot be guaranteed. Please contact our technical

support.

4 Operation

Operating a function or load

Operation depends on whether the push-button modules are connected to a dimming or relay

station and on the relay station settings.

- Single-button operation, e.g. relay station switching output:

Switching on or off takes place alternately when the button is pressed repeatedly.

- Two-button operation, e.g. dimming station load output:

Two buttons form a function pair: one button switches on or dims lighting brighter, the other

button switches it off or dims it darker.

5 Information for electrically skilled persons

5.1 Fitting and electrical connection

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before working on the device, disconnect all the corresponding miniature

circuit breakers. Cover up live parts in the working environment.

Mounting and connecting the device

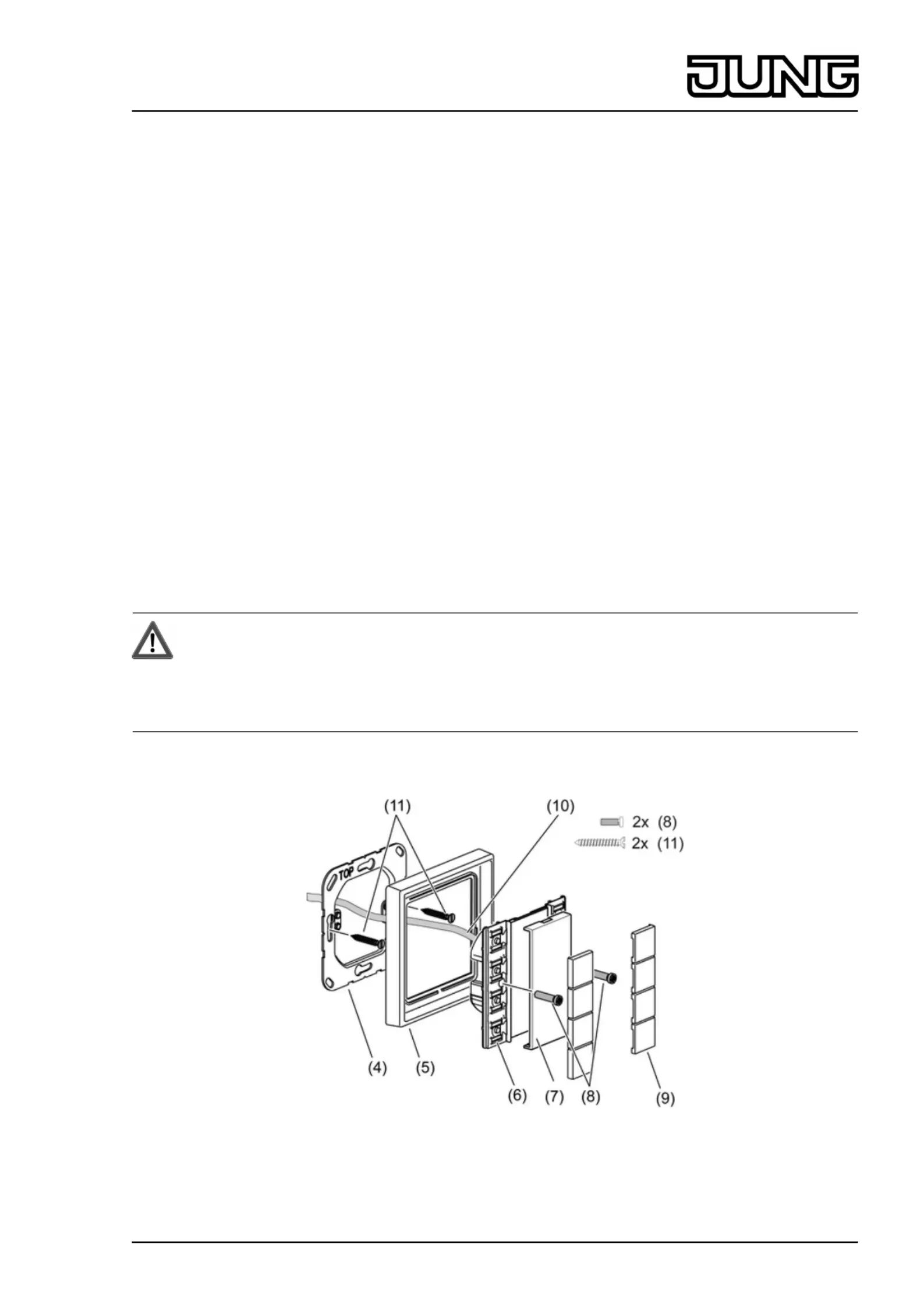

Figure 2: Example of 4-gang push-button module installation

(4) Supporting frame

(5) Frame

2/6

32587903

J:0082587903

25.06.2013

Light Management

Push-button module 24VAC/DC
