Side 1/5

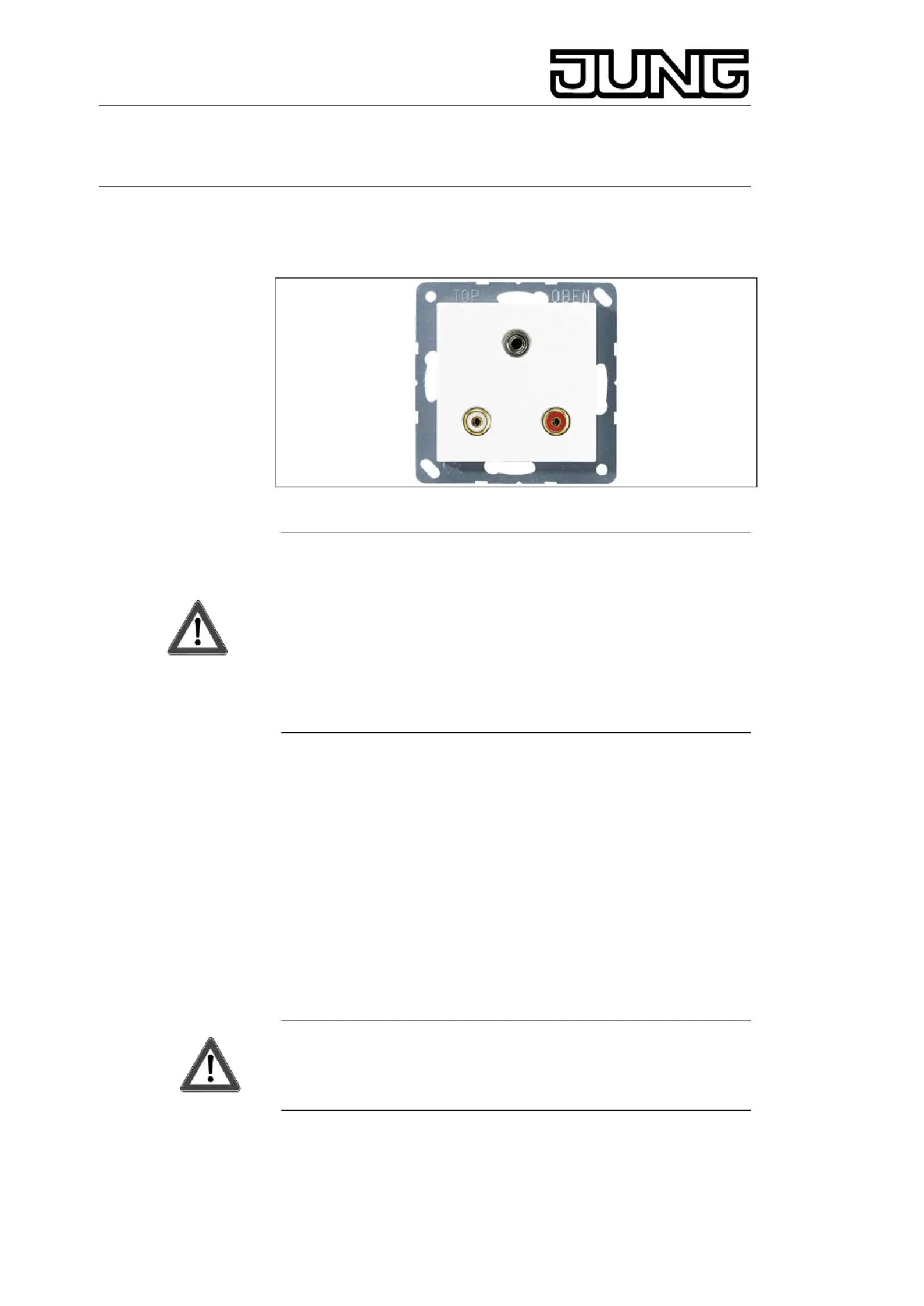

Multimedia connection system
- MA.. Ref. no.:
Stand: Sep-19
Operating Instructions
Multimedia connection system
1. Safety instructions
Electrical equipment must only be installed and assembled by
qualied electricians.
Always follow the relevant accident prevention regulations.
Failure to comply with these instructions may ult in damage to res
the device, re or othe hazards. r
Proper signal transmission is only ensured when the appropriate
accessories are used and the specied maximum cable lengths are
observed, as well as the minimum permissible distance of 0.3 m
from current-carrying cables and sources of interference (electronic
ballasts, dimmers, ESLs, etc.) are observed.
These operating instructions are an integral component of the
product, and must be retained by the end user.
2. Function
The multimedia connection system serve to connect input and output
devices for transmission of audio/ video signals and data.
The available functions depend on the devices that are
connected. To select the suitable socket, note the information
from the manufacturer of the connected devices.
Intended use
Only suitable for use in indoor areas
Can be used in multiple combinations
Flush-mounting in wall box according to DIN VDE 0606
Connection of audio/video devices via „Plug & Play“
3. ration Ope
CAUTION!
The use of non-standardised connecting cables and connectors can
cause device malfunctions.
The devices may be destroyed.
Use only approved connecting cables and connectors.
Multimedia connection system
- .: MA.. Ref. no
2
3.1. Connecting multimedia devices
Insert connector of the connecting cable from the signal source,
e.g. from a DVD or MP3 player, into the jack of multimedia socket.
sert connector of the connecting cable from a playback device, In
e.g. from an LCD/plasma television or stereo system, into the jack
of a second multimedia socket.
Insert connectors into the jacks straight and without using force.
Twisting or tilting the connector may deform the contacts.
Application examples
Connection
Devices
Cinch
Audio systems, AV receivers, active loudspeakers
S-Video
SAT receivers, televisions, projectors, iPod
docking stations, video cameras
USB
iPods, printers, storage media, digital cameras
TRS
3.5 mm
MP3 players, CD/DVD players, sound cards,
audio systems
VGA
PCs/laptops, projectors, monitors
HDMI
High denition plasma/LCD televisions, SAT
receivers, projectors, game consoles, DVD/Bluray
players, DVD/HDD recorders, video cameras
Information for electricians
4. Assembly
4.1. Connecting and installing the multimedia connection
system
The connecting cable has been laid, the wall box is installed in the wall.
Recommendation: use Kaiser „Electronics Box“ (Art. no. 1068-02
or 9062-74) in order to maintain the permissible bending radii.
Insert connector of the connecting cable into the corresponding jack
on the rear of the multimedia connection system.
Screw insert to the wall box in the tight orientation via the
supporting ring.
Place centre plate into the frame.
Mount centre plate together with the frame on the insert using
screwless terminals.
The multimedia connection system can be commissioned.
5. Commissioning
CAUTION!
Short- rcuit if devices that are switched on are connected. ci
Devices may be destroyed.
Switch all devices o before connecting them.
