Temperature controller fan coil, 2-/4-pipe
Temperature controller fan coil, 2-pipe
Temperature controller fan coil, 2-pipe
Temperature controller fan coil, 2-pipe
Temperature controller fan coil, 2-pipeTemperature controller fan coil, 2-pipe
Art. no.: TRDA523028..
Temperature controller fan coil, 2-pipe
Temperature controller fan coil, 2-pipe
Temperature controller fan coil, 2-pipe
Temperature controller fan coil, 2-pipeTemperature controller fan coil, 2-pipe
Art. no.: TRDLS923028..
Temperature controller fan coil, 4-pipe
Temperature controller fan coil, 4-pipe
Temperature controller fan coil, 4-pipe
Temperature controller fan coil, 4-pipeTemperature controller fan coil, 4-pipe
Art. no.: TRDA523048..
Temperature controller fan coil, 4-pipe
Temperature controller fan coil, 4-pipe
Temperature controller fan coil, 4-pipe
Temperature controller fan coil, 4-pipeTemperature controller fan coil, 4-pipe
Art. no.: TRDLS923048..
Operating instructions
Operating instructions
Operating instructions
Operating instructionsOperating instructions
1
1
1
11 Safety instructions
Safety instructions
Safety instructions
Safety instructionsSafety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Electrical devices may only be mounted and connected by electrically skilled persons.
Electrical devices may only be mounted and connected by electrically skilled persons.
Electrical devices may only be mounted and connected by electrically skilled persons.Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Serious injuries, fire or property damage possible. Please read and follow manual fully.Serious injuries, fire or property damage possible. Please read and follow manual fully.
2
2
2
22 Intended use
Intended use
Intended use
Intended useIntended use
– Switching and operating electrical fan coil units with electrothermically actuated heating/
cooling valves
– Measurement and feedback control of the room temperature
– Mounting in appliance box according to DIN 49073
These instructions contain information on the mounting, installation and the commissioning of
device and the setting of setpoints.
Product characteristics
Product characteristics
Product characteristics
Product characteristicsProduct characteristics
– Connection of one fan coil unit with up to 3 fan stages
– Operating modes for heating, cooling or combined heating/cooling operation
– Variants for 2-pipe or 4-pipe operation
– 8 capacitive sensor buttons
– Internal temperature sensor
– Room temperature controller function
– Preselection of the current energy level through the option of 5 temperature profiles for
use in hotels or similar sites
– Display for indication of temperature (°C or °F), fan level, operating mode/profile
– Menu levels blockable
– 1 status LED (red/green/blue)
– Brightness and contrast adjustable
– Switch-off time of the display illumination up to 120 seconds
– Extension input to the connection of, e.g. hotel card switch (see accessories)
3
3
3
33 Function
Function
Function
Function Function
Intended use
Intended use
Intended use
Intended useIntended use
– Switching and operating electrical fan coil units with electrothermically actuated heating/
cooling valves
– Measurement and feedback control of the room temperature
– Mounting in appliance box according to DIN 49073
1 / 15
32598523 20.02.2020
j0082598523
Temperature controller fan coil, 2-/4-pipe
Product characteristics
Product characteristics
Product characteristics
Product characteristicsProduct characteristics
– Connection of one fan coil unit with up to 3 fan stages
– Operating modes for heating, cooling or combined heating/cooling operation
– Variants for 2-pipe or 4-pipe operation
– 8 capacitive sensor buttons
– Internal temperature sensor
– Room temperature controller function
– Preselection of the current energy level through the option of 5 temperature profiles for
use in hotels or similar sites
– Display for indication of temperature (°C or °F), fan level, operating mode/profile
– Menu levels blockable
– 1 status LED (red/green/blue)
– Brightness and contrast adjustable
– Switch-off time of the display illumination up to 120 seconds
– Extension input to the connection of, e.g. hotel card switch (see accessories)
4
4
4
44 Operation
Operation
Operation
OperationOperation
Operating elements
Operating elements
Operating elements
Operating elementsOperating elements

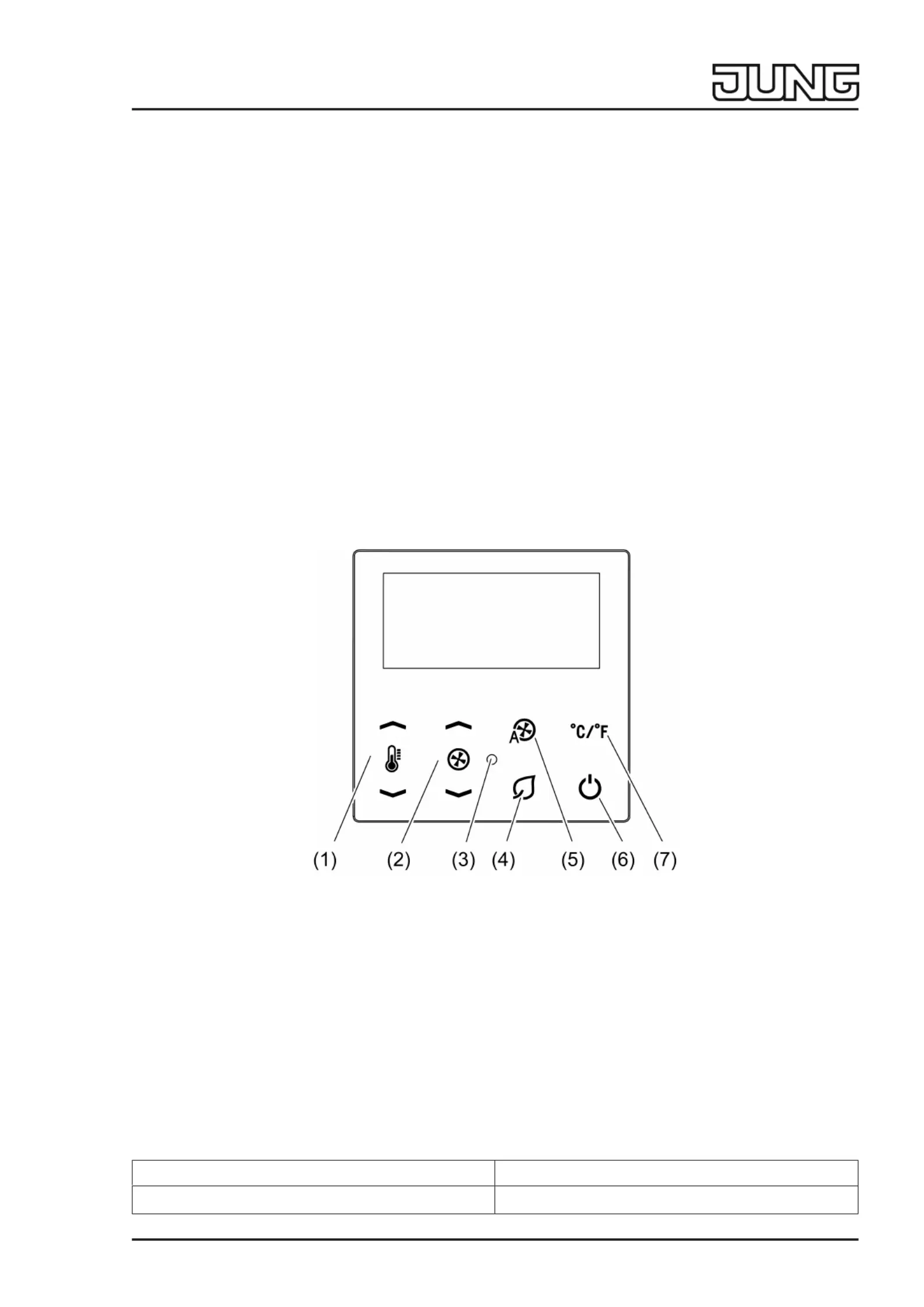

Figure1: View
(1) Temperature setpoint adjustment ‰ƞ
/
/
/
/ /
‰Ɵ
(2) Manual setting of the fan stage şƞ
/
/
/
/ /
şƟ
(3) Status LED
(4) Switchover to the
Eco
Eco
Eco
Eco Eco
Ɣ profile
(5) Fan stage automatic mode ƪ
(6) Switchover to the
Standby
Standby
Standby
Standby Standby
Ɠ profile
(7) Switchover of the temperature display Celsius/Fahrenheit
°C/°F
°C/°F
°C/°F
°C/°F°C/°F
Status LED
Status LED
Status LED
Status LEDStatus LED
The status LED shows the current operating mode of the controller or the actuation of the
sensor buttons or both.
LED colour
LED colour
LED colour
LED colourLED colour Profile
Profile
Profile
ProfileProfile
Green or off Comfort, comfort–, eco
