Room temperature controller

26.06.20201 / 50024091005

Room temperature controller

Ref.-no.: TR .. 231 ..

TR .. 241 ..

TR .. 236 ..

TR .. 246 ..

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.

Serious injuries, re or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or load.

A relative air humidity of max. 95% may not be exceeded. Avoid any moisture condensation.

These instructions are an integral part of the product, and must remain with the end customer.

2 Structure of the device

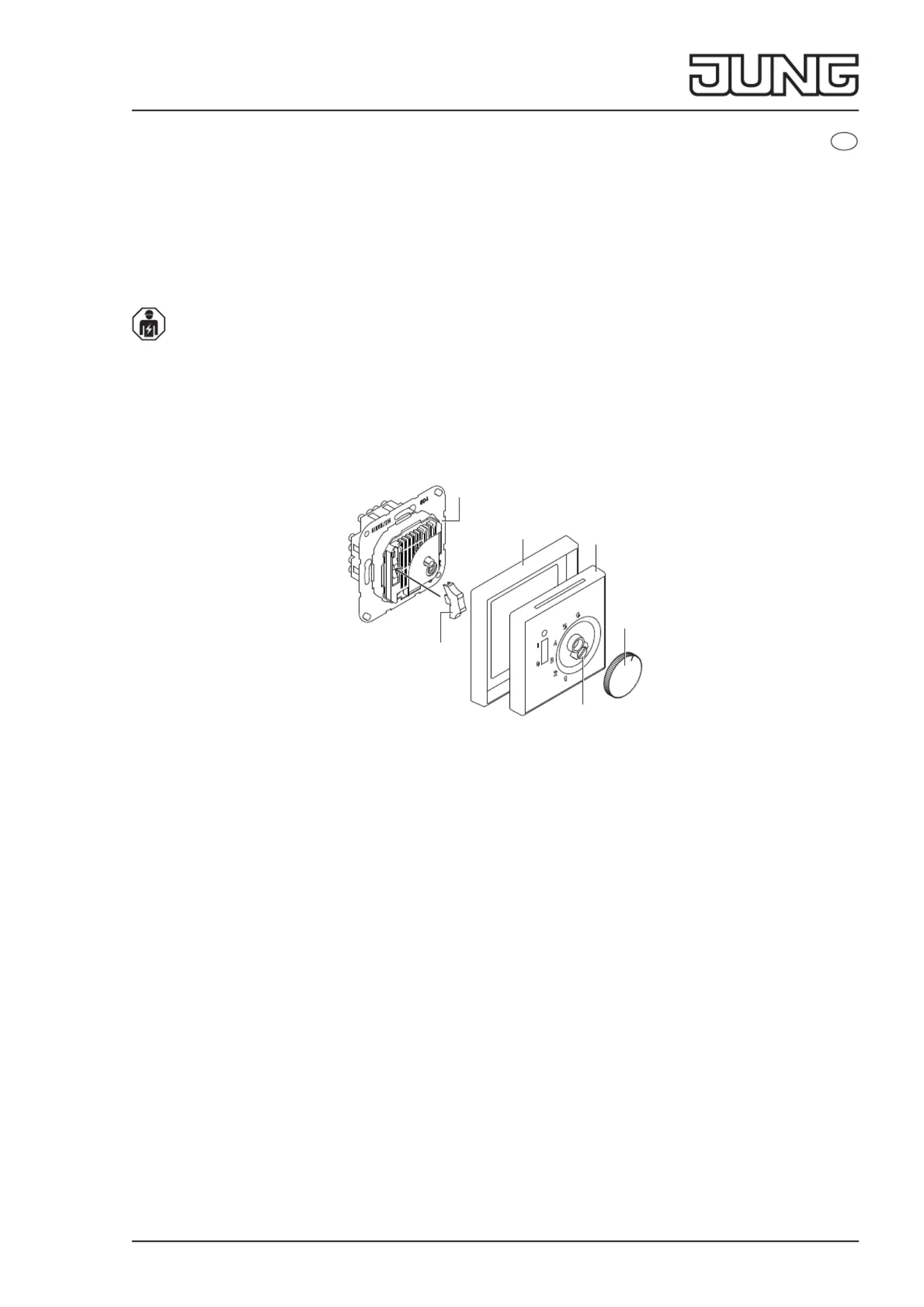

Fig. 1: Geräteaufbau

(1) Insert

(2) Frame

(3) Cover

(4) Rocker

(5) Screw

(6) Setting knob

3 Function

Intended purpose

The room temperature controller is used to regulate the temperature in closed rooms such as ats, schools, function

suites, workshops, etc.

Product characteristics

Neutral conductor required

TR 231 U / TR 241 U:

- Separate terminal for temperature reduction of 5 K (e.g. during night time)

- ON/OFF switch with status LED

- When set temperature is reached the contact opens up.

TR 236 U / TR 246 U:

- No OFF-position

- Without switch and control LED

- When set temperature is reached the NO/NC contact switches over.

Room temperature controller

26.06.20202 / 50024091005

4 Information for electrically skilled persons

Installation and electrical connection

DANGER

Electric shock from touching live parts in the installation environment.

An electric shock can be fatal.

Before working on the device, disconnect the power and cover live parts in the area.

- Mount the room temperature controller on an internal wall opposite the heat source if possible.

- Do not mount the room temperature controller on outside walls.

- Avoid draughts from windows and doors.

- Ensure that the normal air circulation in the room reaches the controller without any obstacles.

- External heat sources inuence the accuracy of the controller. Avoid direct sunlight and do not place heat-emitting

devices in the vicinity of the room temperature controller (heaters, lamps, etc.).

- Dimmers also generate heat.

If a controller is installed in a common switch frame with a dimmer, the distance between them should be as great

as possible. When arranging them vertically, the controller must be installed underneath the dimmer.

Connection

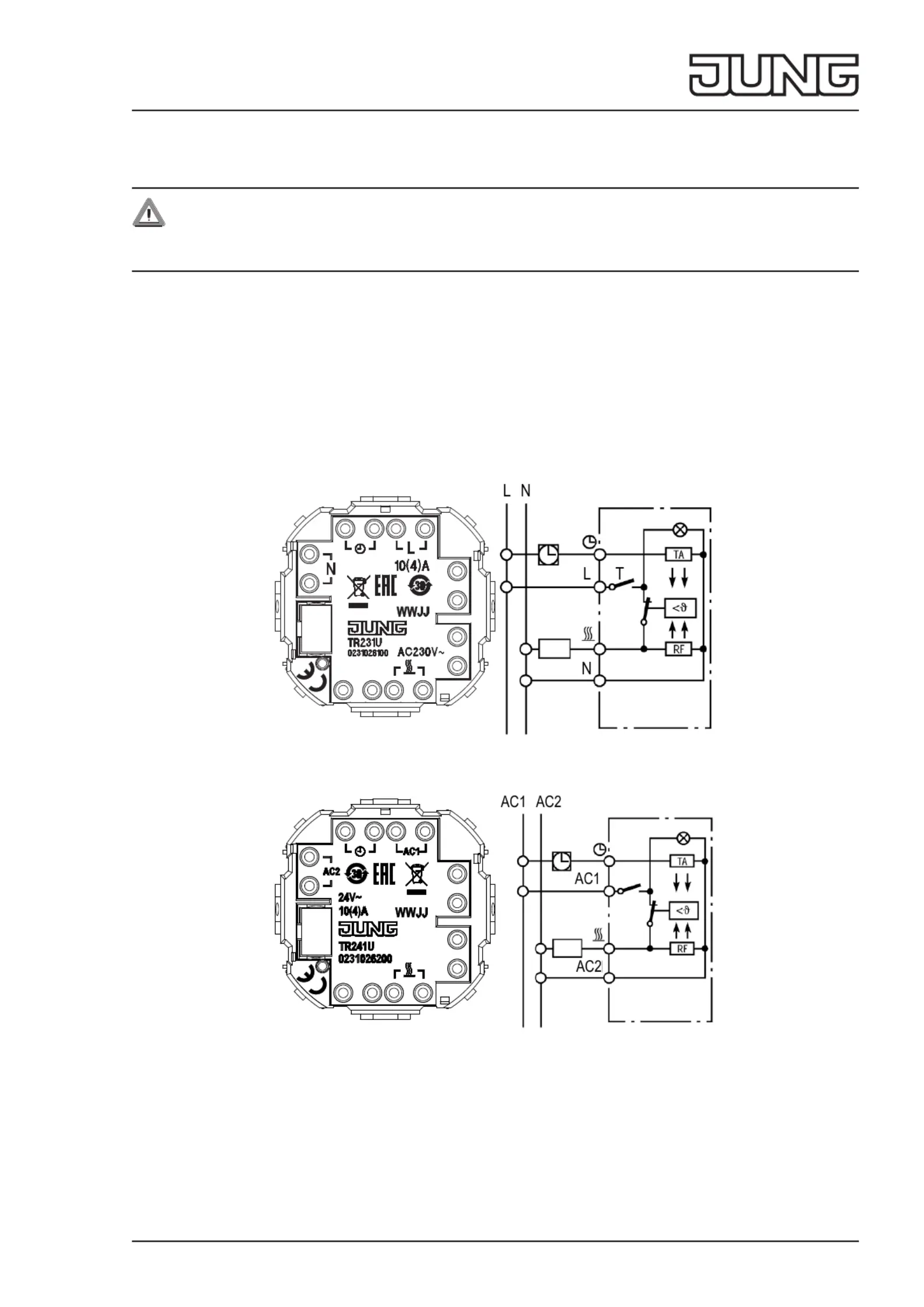

Fig. 2: TR 231 U

Fig. 3: TR 241 U
