KNX Sensoren

Art.-no.: WS 10 D, WS 10 T, WS 10 H

Operating Instructions

Brightness Sensor, Temperature Sensor

Twilight sensor

1. Function ............................................................................................. 1

2. Safety instructions ............................................................................ 1

3. Connection......................................................................................... 1

4. Fitting instructions............................................................................ 2

5. Technical Data................................................................................... 2

6. Acceptance of guarantee.................................................................. 3

1. Function

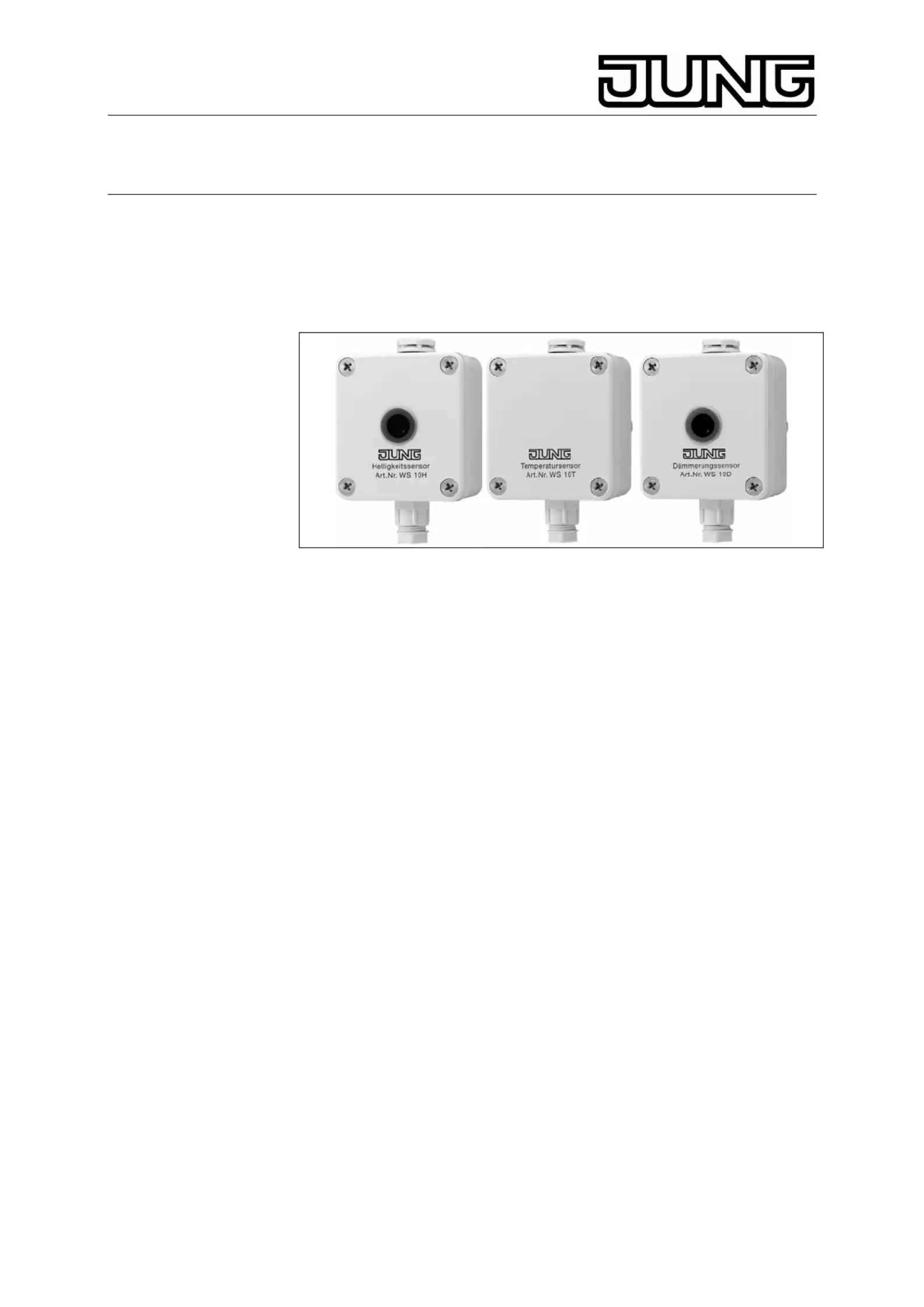

The climatic data of interest are collected by three different transducers,

ie. the brightness sensor, the twilight sensor (Fig. ) and the temperature

sensor (Fig. ) and converted into analogue voltage signals (0 – 10 V).

The evaluation of these signals requires additional electronics (e.g.

instabus weather station) which offers the capability of transmitting

measured value or instruction telegrams to the EIB instabus depending

on the analogue signals received. To prevent the formation of moisture

inside the housings, the sensors are equipped with pressure-

compensating elements (weatherproofing membrane).

2. Safety instructions

Attention: Electrical equipment must be installed and fitted by

qualified electricians only.

Subject to change without notice.

3. Connection

The connecting cables passes through the screwed conduit entry no. 7 to

the connecting terminals.

Stand: Okt-07 825 060 03

KNX Sensoren

Art.-no.: WS 10 D, WS 10 T, WS 10 H

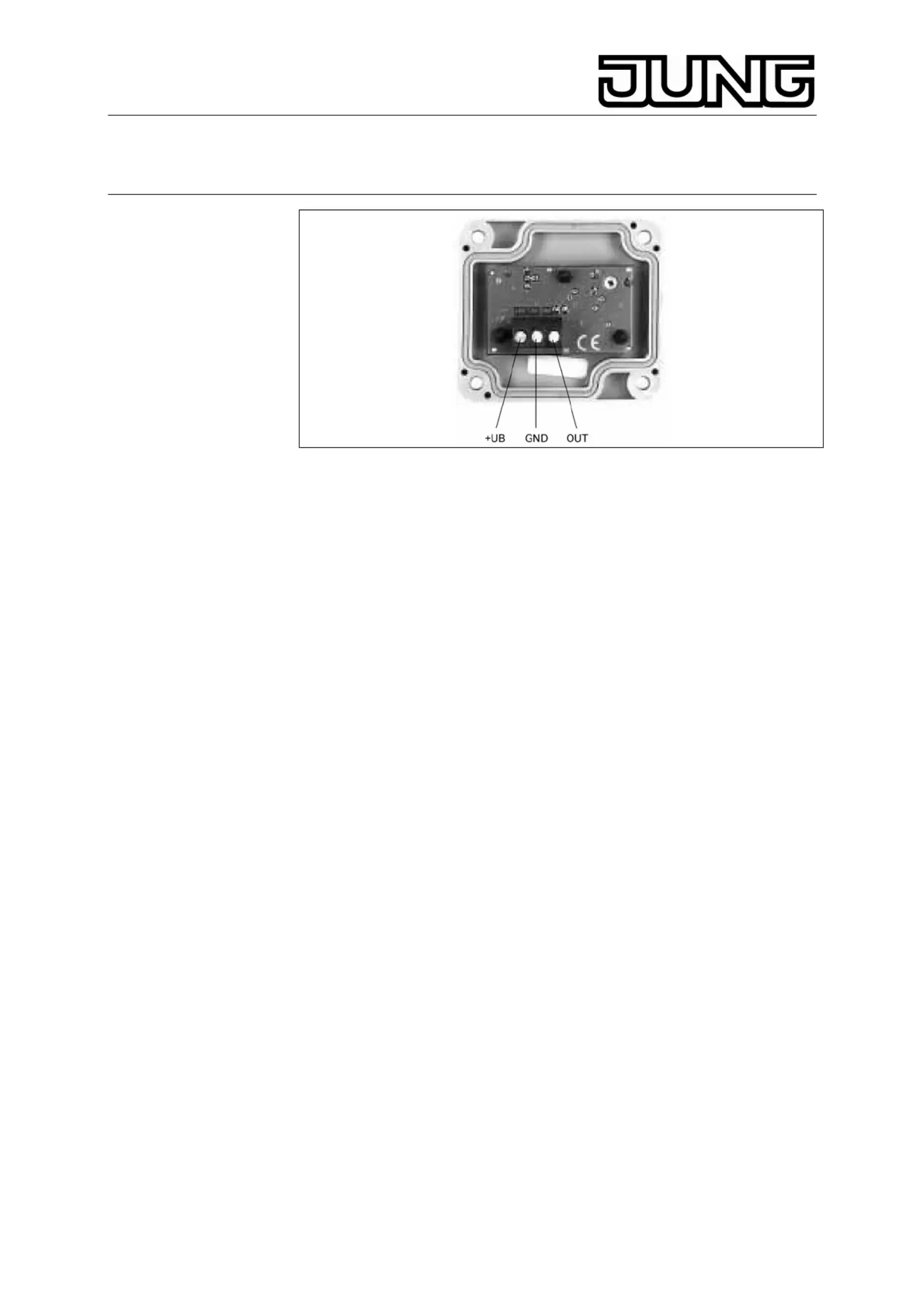

Terminal designations:

+UB: operating voltage 24 V DC

GND: reference potential (ground) non-earthed

OUT: output 0 – 10 V

4. Fitting instructions

• The sensors must be installed in an accessible place to permit

necessary cleaning, if needed.

• Do not install the sensors in the vicinity of RF transmitters (e.g.

cellular radio transmitters).

• Do not lay sensor cables parallel to mains or other electrically loaded

lines. To prevent EMC problems, there should be a distance of a few

centimeters between these lines and the sensor cable.

• Make sure the sensors are perfectly adjusted (e.g. pointing in the

right direction) as the measured values might otherwise be incorrect.

5. Technical Data

General

Supply voltage : 24 V DC (15 - 30 V DC)

Connecting terminals : screw-type terminals,, max. 2,5 mm²

Connecting cable: through screwed conduit entry no. 7

Recommended cable: 3 x 0,25 mm²

Length of cable: max. 100 m

(observe installation ínstructions)

Voltage output : 0...10 V DC

(into a load of at least 1 kΩ, shortcircuit

protected)

Ambient temperature : - 30 to + 70 °C

Type of protection: IP 65

Mounting position : optional

recommend:

Type of fastening: screw fastening

Dimensions : 58 x 90 x 35 mm
