Blinds Management Weather station
Ref.-no.: WSK 100 REG
Operating Instructions

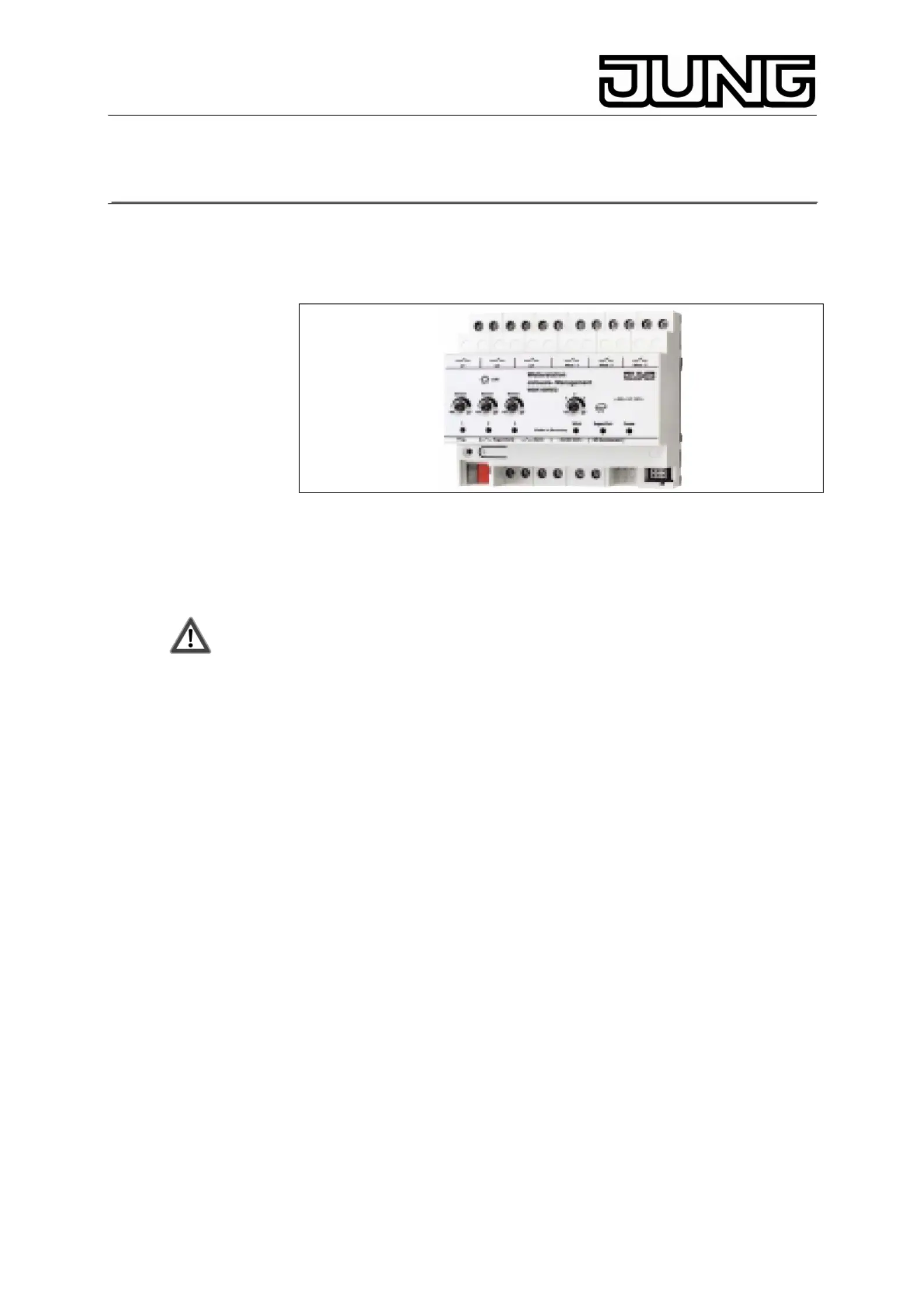

Weather station
1. Safety Warnings
• Electrical equipment must be installed and fitted by qualified
electricians only and in strict observance of the relevant accident
prevention regulations.
• Failure to observe any of the installation instructions may result in
fire and other hazards.
• The terminal block for connection of the combination sensor must
be plugged on before the mains voltage is applied and during
operation in order to protect the digital input against accidental
contact with live wires. Risk of irreparable damage to the device!
2. Function
In conjunction with the digital combination sensor WS10 KS and the
power supply unit WSSV10, the weather station WSK100 REG measures
brightness, wind intensity and rain.
Based on brightness and wind intensity, the station controls a connected
shutter control system independently for the east, south and west sides of
a house.
The precipitation detect function can, for instance, be used for closing
skylights when it rains.
Stand: Jul-08 82558003
Blinds Management Weather station
Ref.-no.: WSK 100 REG
3. Features
• Independent outputs for the shutters of the east, south and west
facade of a house
• Separately adjustable shading function for the east, south and west
facade
• Presettable common limit value for the wind alarm for the three
house facades
• Precipitation detect function with switched ouput, e.g. for the control
of skylights
• Standard shutter moving time of 2.5 minutes in sun protection mode
can be shortened independently for each facade
• Monitoring of combination sensor connection cable with alarm
function and message display.
4. Installation
The device is snap-fastened on a 35 x 7.5 mm rail as per DIN EN 50022.
Important
The terminal block for connection of the combination sensor must
be plugged on before the mains voltage is applied and during
operation in order to protect the digital input against accidental
contact with live wires. Risk of irreparable damage to the device.
For operation, the weather station needs an external 24 V power supply
unit (WSSV10). After switching on the power supply, the green “Power”
LED (10) is lit up.

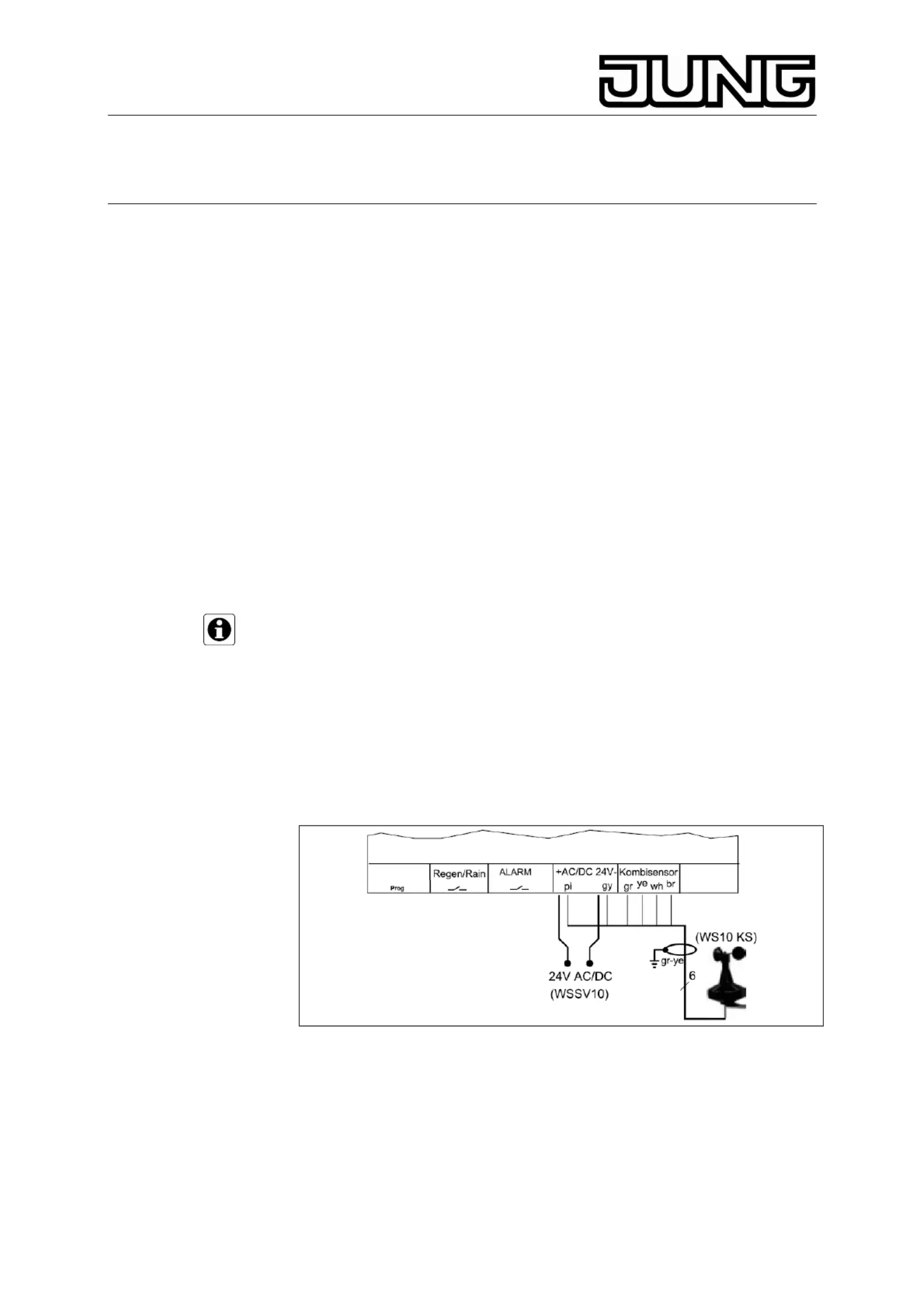

Combination sensor wiring diagramm
4.1. Combination sensor connection
The power supply is connected to the screw terminals +AC/DC 24V -.
The external voltage of 24 V supplies also the heating of the combination
sensor via the pink + (pi) and grey - (gy) wires.
The data lines of the combination sensor are connected by means of the
4-pole terminal block WAGO, type 252-104 supplied with the combination
sensor. Observe the colour code when connecting the terminal block.
From left to right: green (gr), yellow (ye), white (wh), brown (br)
2
