Side 1/4

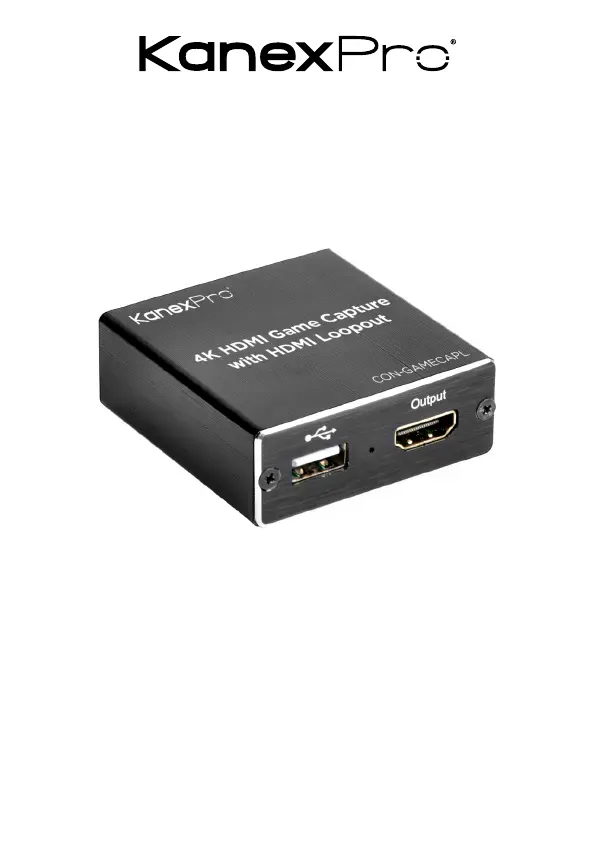

4K USB 2.0 Gaming Capture

with HDMI Loop-out

Quick Installation Guide

Ver. 1.0

All brand names and trademarks are properties of their respective owners

2 3

INTRODUCTION:

The KanexPro CON-GAMECAPL is a video capture device

that can capture both HDMI video and HDMI audio,

sending audio and video signals to a computer in order to

preview or record video content. This model features an

HDMI loop-out so that Suitable for video game console

capture, educational recordings, medical imaging, or

streaming with the use of an action camera.

FEATURES:

• Support input max resolution 3840x2160@30Hz;

• Support output max resolution 1920x1080@30Hz;

• Support 8/10/12bit deep color;

• Supports most video recording and streaming

software, such as VLC, OBS, Debut, etc;

• Support Windows, Android and MacOS;

• Conform to USB Video and UVC standard;

• Conform to USB Audio UAC standard;

• No need for an external power supply, USB bus

powered for a compact and portable solution. penguin

PACKAGE CONTENTS:

• 1x Main Unit

• 1x User Manual

• 1x Micro USB cable

• 1x USB cable male to male

• 1x HDMI cable male to male

• 1x Type-C USB3.1 Male to USB 2.0 Female Connector

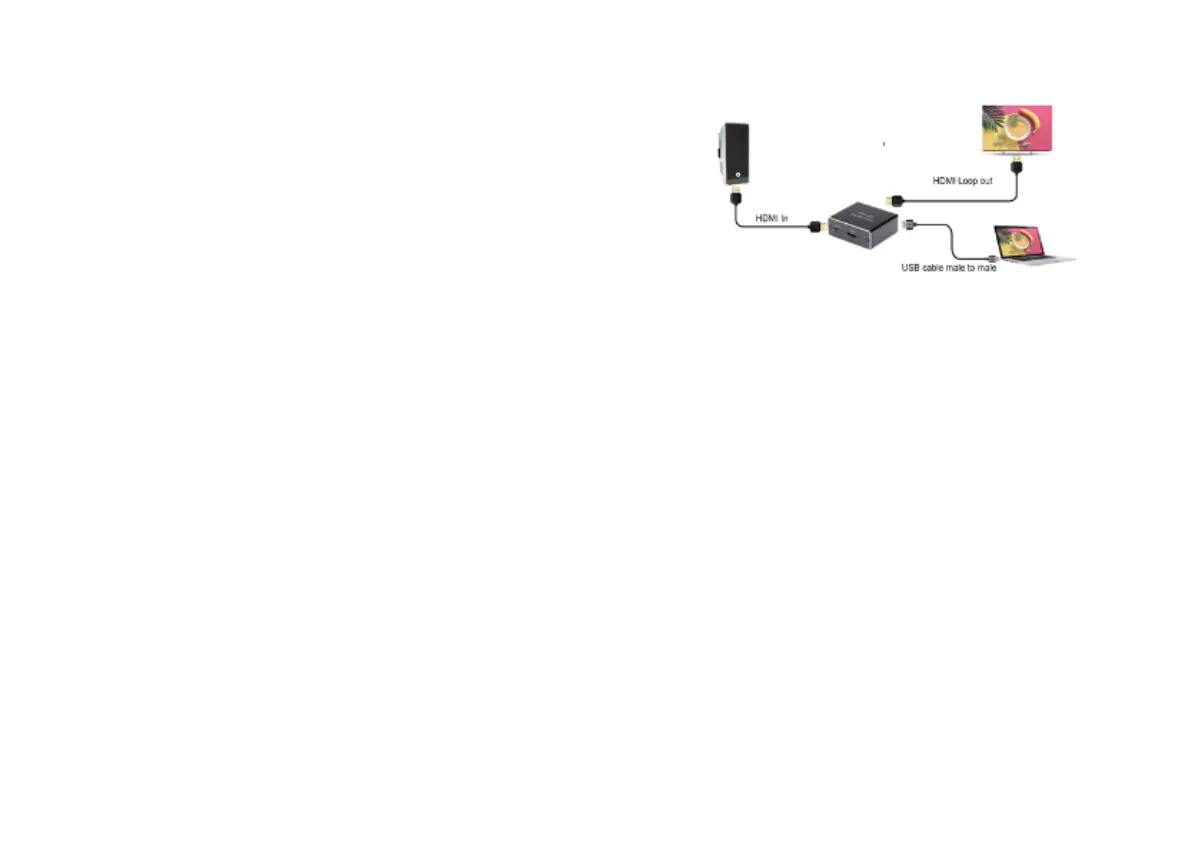

APPLICATION OPTIONS:

1. Connect the UHD signal source to the HDMI input of

the video capture with the included HDMI cable.

2. Connect the CON-GAMECAPL directly into a USB port on

the computer using the included Male to Male USB Cable.

3. Connect the HDMI Output port to a Display using an

HDMI Cable.

4. Getting Started:

The CON-GAMECAPL is compatible with various video

recording and streaming applications. You can choose any

of the popular programs like VLC, Debut, or OBS Studio

(https://obsproject.com/).

KanexPro recommends OBS Studio for its simplicity and ease of use.

Produkt Specifikationer

Mærke:	KanexPro
Kategori:	Ikke kategoriseret
Model:	CON-GAMECAPL
Bredde:	28 mm
Dybde:	64 mm
Højde:	13 mm
Vægt:	21.4 g
Produktfarve:	Sort
Driftstemperatur (T-T):	-10 - 55 °C
Strømforsyningstype:	USB
Værtsgrænseflade:	HDMI
Intern:	Ingen
Videooptagelse med opløsning (maks.):	3840 x 2160 pixel
HSMI-indgang:	1
Antal HDMI-udgange:	1
