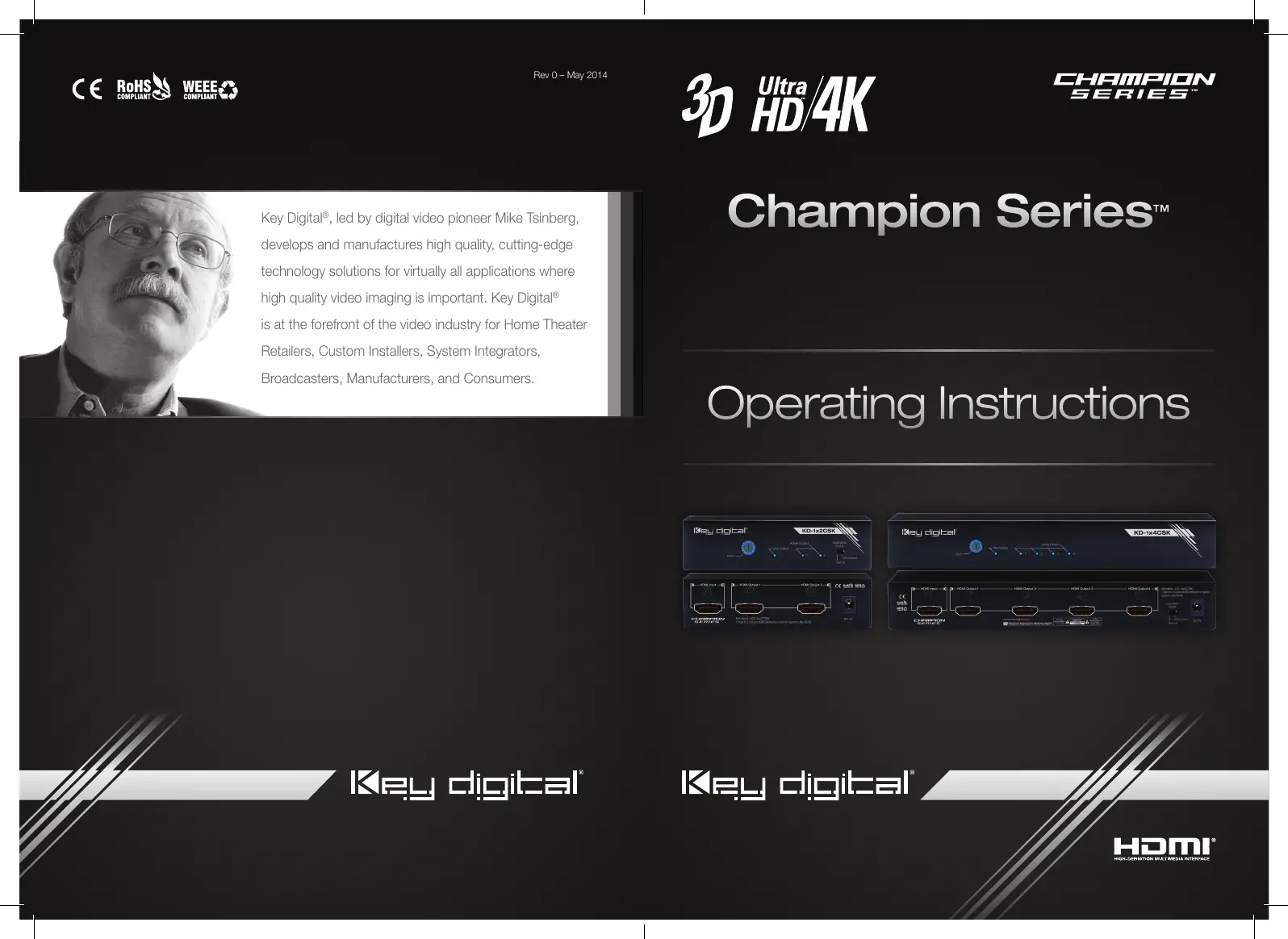

Side 1/6
HDMI
®
Distribution Amplifiers,
support Ultra HD/4K
The Experts in Digital Video Technology and Solutions
™
Champion Series
™
Operating Instructions
Key Digital
®
Systems :: 521 East 3rd Street :: Mount Vernon, NY 10553
Phone : 914.667.9700 Fax : 914.668.8666 Web : www.keydigital.com
Key Digital
®
, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
®
is at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
Rev 0 – May 2014
KD-1x2CSK KD-1x4CSK
KD-1x2_1x4CSK_Manual_5.25x7.5".indd 2-3 10/28/14 10:42 AM
4 1
Introduction
Key Digital
®
Champion Series
™
KD-1x2CSK/KD-1x4CSK HDMI Distribution Ampliers
are designed and engineered to offer the best in quality, performance, and reliability while
providing a cost effective HDMI distribution solution. Champion Series
™
Distribution
Ampliers are a transparent solution for all digital video/audio distribution applications
and support all HD and SD video standards, including 1080p/60 and Ultra HD/4K. KD-
1x2CSK/KD-1x4CSK Distribution Ampliers feature status-monitoring LEDs and support
for advanced HDMI features (3D & Ultra HD/4K).
About the KD-1x2CSK/KD-1x4CSK
› Digital Distribution:
1 HDMI Source to 2/4 HDMI Displays
› Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA,
UXGA) resolutions up to UHD/4K (4Kx2K/60[4:2:0], 4Kx2K/30/25/24[4:4:4])
» VESA: From 640x480p up to 1920x1200p
› Ultra HD/4K:
4K/2K video resolution support for 4K-capable televisions and commercial
applications such as Digital Movie Theaters, CAD, Post Production
› 3D Ready:
Capability to pass 3D stereoscopic signal formats
› EDID Control
™
:
Internal library with 16 default EDID congurations for each input,
or auto EDID selection of display
› Hot Plug Control:
Allows modifying HPD (Hot Plug Detection) protocol between
source and display.
› Lossless Compressed Digital Audio:
Dolby
®
TrueHD, Dolby
®
Digital Plus and
DTS-HD Master Audio
™
› Deep Color Support:
Up to 12 bits/color
› I2C Communication:
EDID and HDCP transparency from Display to Source
› Licensing:
Fully licensed and compatible with all HDMI and HDCP technologies
Accessories
› External power supply: 5V 1A (KD-1x2CSK); 5V 2A (KD-1x4CSK)
› HDMI Lacing Clips
› Operating Instructions
› Warranty Card
Table of Contents
Introduction ..............................................................1
Quick Setup Guide ........................................................2
Installation and Operation ...................................................3
EDID Control Settings ......................................................3
Hot Plug Control ..........................................................4
Specications ............................................................5
Important Product Warnings & Safety Instructions: ................................6
How to Contact Key Digital
®
.................................................7
Warranty Information .......................................................7
Always follow the instructions provided in this Operating Manual.
© 2014 Key Digital, Inc. All rights reserved.
KD-1x2CSK
KD-1x4CSK
