Key Digital Champion KD-1X4CSK Manual

Key Digital Modtager Champion KD-1X4CSK

Læs gratis den danske manual til Key Digital Champion KD-1X4CSK (6 sider) i kategorien Modtager. Denne vejledning er vurderet som hjælpsom af 19 personer og har en gennemsnitlig bedømmelse på 4.5 stjerner ud af 10 anmeldelser. Har du et spørgsmål om Key Digital Champion KD-1X4CSK, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/6
HDMI
®
Distribution Amplifiers,
support Ultra HD/4K
The Experts in Digital Video Technology and Solutions™
Key Digital ® Systems 521 East 3rd Street Mount Vernon, NY 10553 :: ::
Phone 914.667.9700 Fax 914.668.8666 Web www.keydigital.com : : :

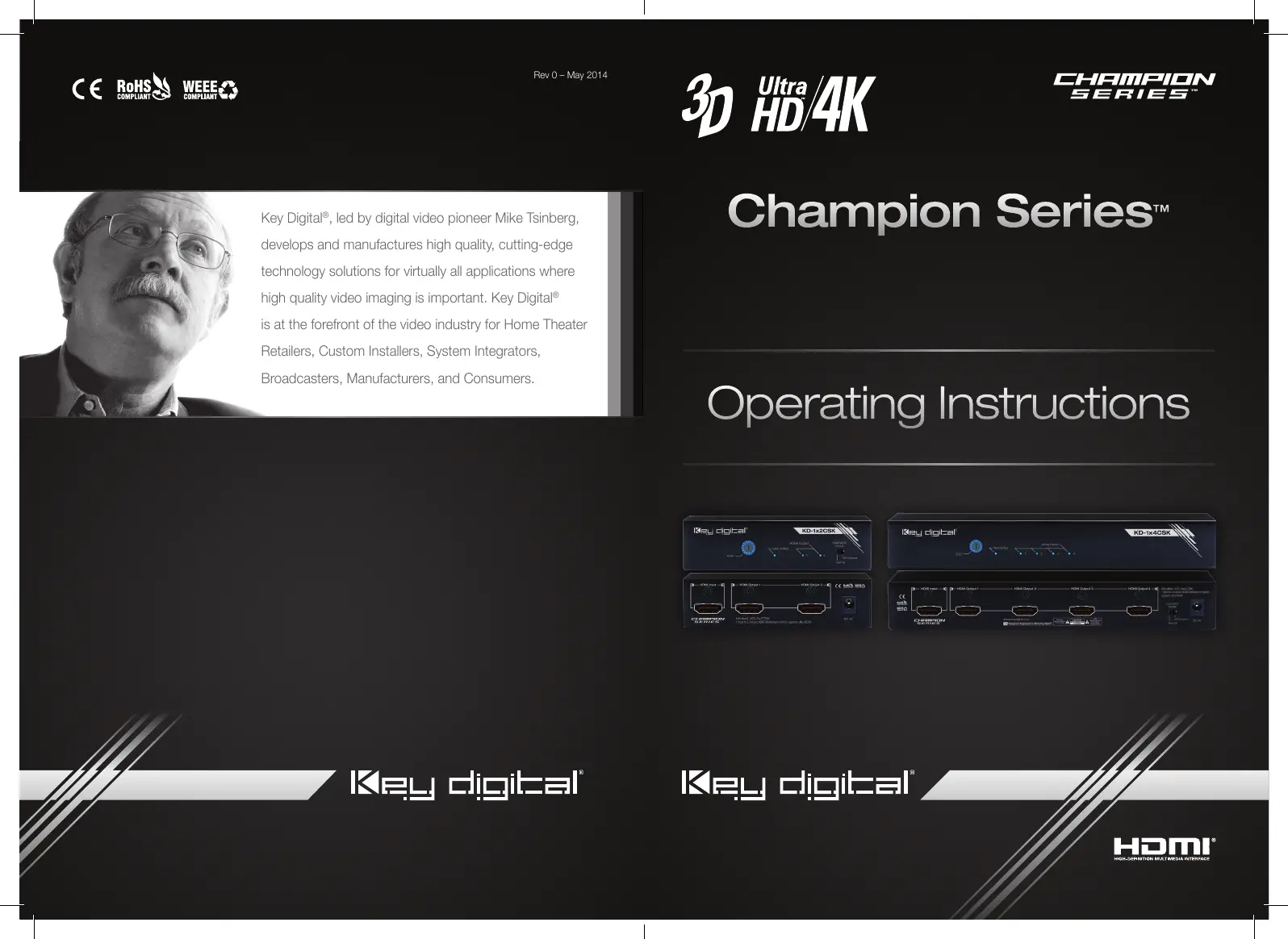

Key Digital®, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
®
is at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
Rev 0 – May 2014
KD-1x2CSK KD-1x4CSK
KD-1x2_1x4CSK_Manual_5.25x7.5".indd 2-3 10/28/14 10:42 AM
4 1

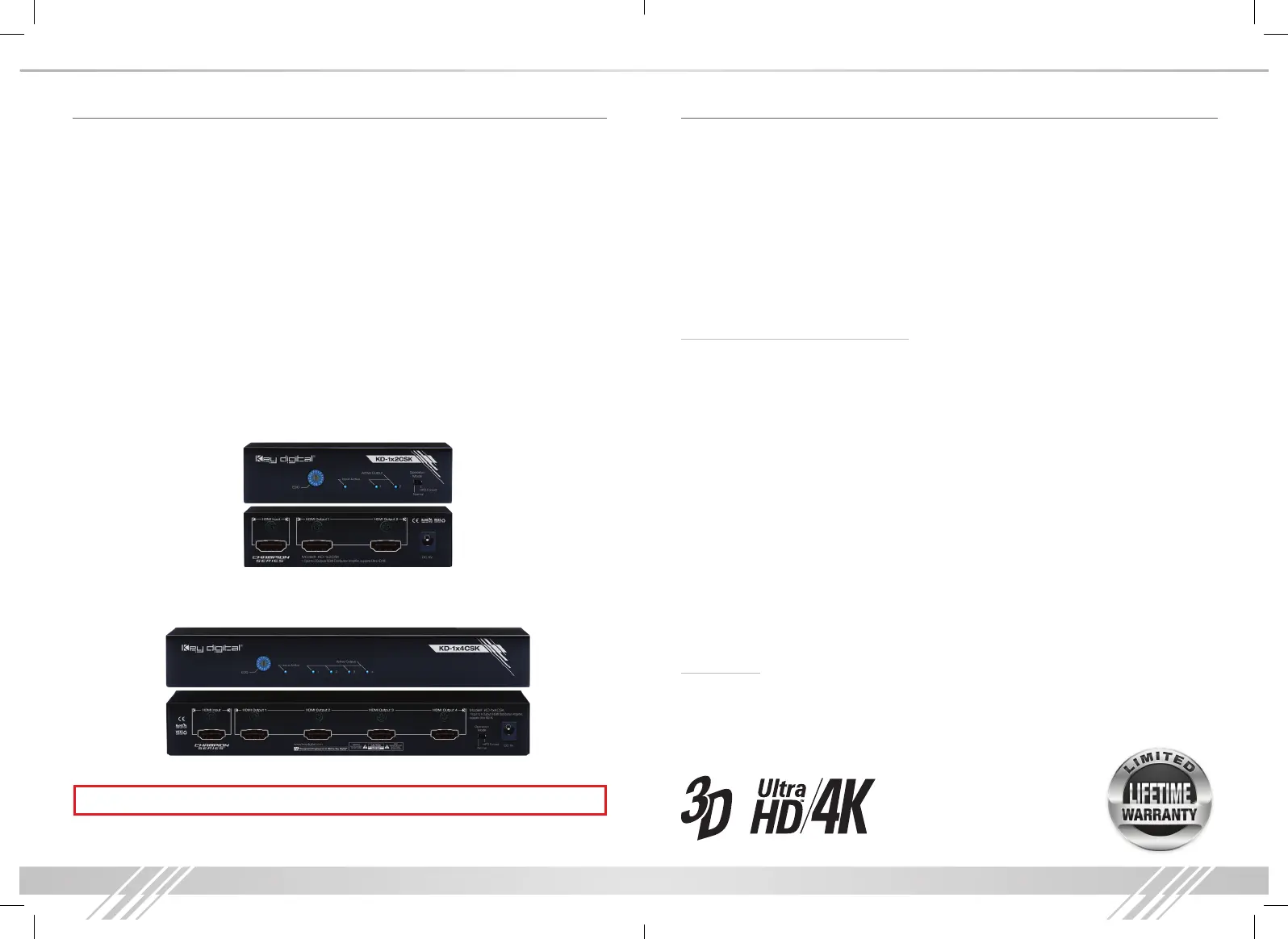

Introduction
Key Digital® Champion Series™ KD-1x2CSK/KD-1x4CSK HDMI Distribution Ampliers
are designed and engineered to offer the best in quality, performance, and reliability while
providing a cost effective HDMI distribution solution. Champion Series™ Distribution
Ampliers are a transparent solution for all digital video/audio distribution applications
and support all HD and SD video standards, including 1080p/60 and Ultra HD/4K. KD-
1x2CSK/KD-1x4CSK Distribution Ampliers feature status-monitoring LEDs and support
for advanced HDMI features (3D & Ultra HD/4K).
About the KD-1x2CSK/KD-1x4CSK
Digital Distribution:
1 HDMI Source to 2/4 HDMI Displays
Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA,
UXGA) resolutions up to UHD/4K (4Kx2K/60[4:2:0], 4Kx2K/30/25/24[4:4:4])
»VESA: From 640x480p up to 1920x1200p
Ultra HD/4K:
4K/2K video resolution support for 4K-capable televisions and commercial
applications such as Digital Movie Theaters, CAD, Post Production
3D Ready:
Capability to pass 3D stereoscopic signal formats
EDID Control™:
Internal library with 16 default EDID congurations for each input,
or auto EDID selection of display
Hot Plug Control:
Allows modifying HPD (Hot Plug Detection) protocol between
source and display.
Lossless Compressed Digital Audio:
Dolby® TrueHD, Dolby® Digital Plus and
DTS-HD Master Audio™
Deep Color Support:
Up to 12 bits/color
I2C Communication:
EDID and HDCP transparency from Display to Source
Licensing:
Fully licensed and compatible with all HDMI and HDCP technologies
Accessories
External power supply: 5V 1A (KD-1x2CSK); 5V 2A (KD-1x4CSK)
HDMI Lacing Clips
Operating Instructions
Warranty Card
Table of Contents
Introduction..............................................................1
Quick Setup Guide ........................................................2
Installation and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
EDID Control Settings ......................................................3
Hot Plug Control ..........................................................4
Specications ............................................................5
Important Product Warnings & Safety Instructions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
How to Contact Key Digital
®
.................................................7
Warranty Information .......................................................7
Always follow the instructions provided in this Operating Manual.
© 2014 Key Digital, Inc. All rights reserved.
KD-1x2CSK
KD-1x4CSK
KD-1x2_1x4CSK_Manual_5.25x7.5".indd 4-1 10/28/14 10:42 AM
