Date Issued: 05/18/17

IS-10766LED-US

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

WARNING:

• This ﬁxture is intended for installation in accordance with the National Electric Code

(NEC) and all local code speciﬁcations.

• Supply wires are not intended for use through or concealed behind walls, ﬂoors, or

ceilings.

CAUTION – RISK OF SHOCK – Disconnect Power at the main circuit breaker panel or

main fuse box before starting and during the installation.

1) Read and understand all instructions and illustrations completely before proceeding

with assembly and installation of ﬁxture.

2) If you have any doubts about how to install this ﬁxture, or if the ﬁxture fails to

operate completely, please contact a qualiﬁed electrician.

3) All parts must be used as indicated in the instructions. Do not substitute any parts,

leave parts out, or use any parts that are worn or broken. Failure to obey this instruction

could invalidate the UL listing, C.S.A. certiﬁcation, and/or ETL listing of this ﬁxture.

4) Fixture is to be connected to a single branch circuit.

5) Mounting surface should be clean, dry, ﬂat and 1/4” larger than the ﬁxture housing

surface.

6) Remove lens. Twist diffuser counterclockwise to remove it from the ﬁxture. Set

aside. DO NOT touch LEDs with hands or ﬁngers.

7) Install (2) two mounting screws into the outlet box, leaving small amount of threads

exposed.

8) Grounding instructions: (See Illus. A or B).

A) On ﬁxtures where mounting strap is provided with a hole and two raise dimples.

Wrap ground wire from outlet box around green ground screw, and thread into

hole.

B) On ﬁxtures where a cupped washer is provided. Put ground wire from outlet box

under cupped washer and green ground screw and thread screw into hole in

mounting strap.

If ﬁxture is provided with ground wire. Connect ﬁxture ground wire to outlet box

ground wire with wire connector, (not provided) after following the above steps. Never

connect ground wire to black or white power supply wires.

9) Make wire connections. Reference chart below for correct connections and wire

accordingly.

10) Carefully push wire connections back into outlet box making sure all connections

remain secure.

11) Push ﬁxture over outlet box and align the larger hole side of keyhole slot with

screws in outlet box. Push ﬁxture to ceiling and turn ﬁxture in direction of smaller

side of keyhole slots until it stops. Tighten strap mounting screws to secure.

12) Place diffuser up to canopy and align the open sections of diffuser slots. Push

diffuser up to backplate and twist clockwise to lock in place.

GREEN GROUND

SCREW

CUPPED

WASHER

OUTLET BOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

OUTLET BOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black White

*Parallel cord (round & smooth) *Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)

are used. The neutral wire is square shaped

or ridged and the other wire will be round in

shape or smooth (see illus.)

Neutral Wire

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a par-

ticular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

SEE OTHER SIDE FOR SPANISH TRANSLATIONS.

VEA EL OTRO LADO DE TRADUCCIONES AL ESPAÑOL.

OUTLET BOX

WIRE

CONNECTORS

CANOPY

DIFFUSER

MOUNTING SCREWS

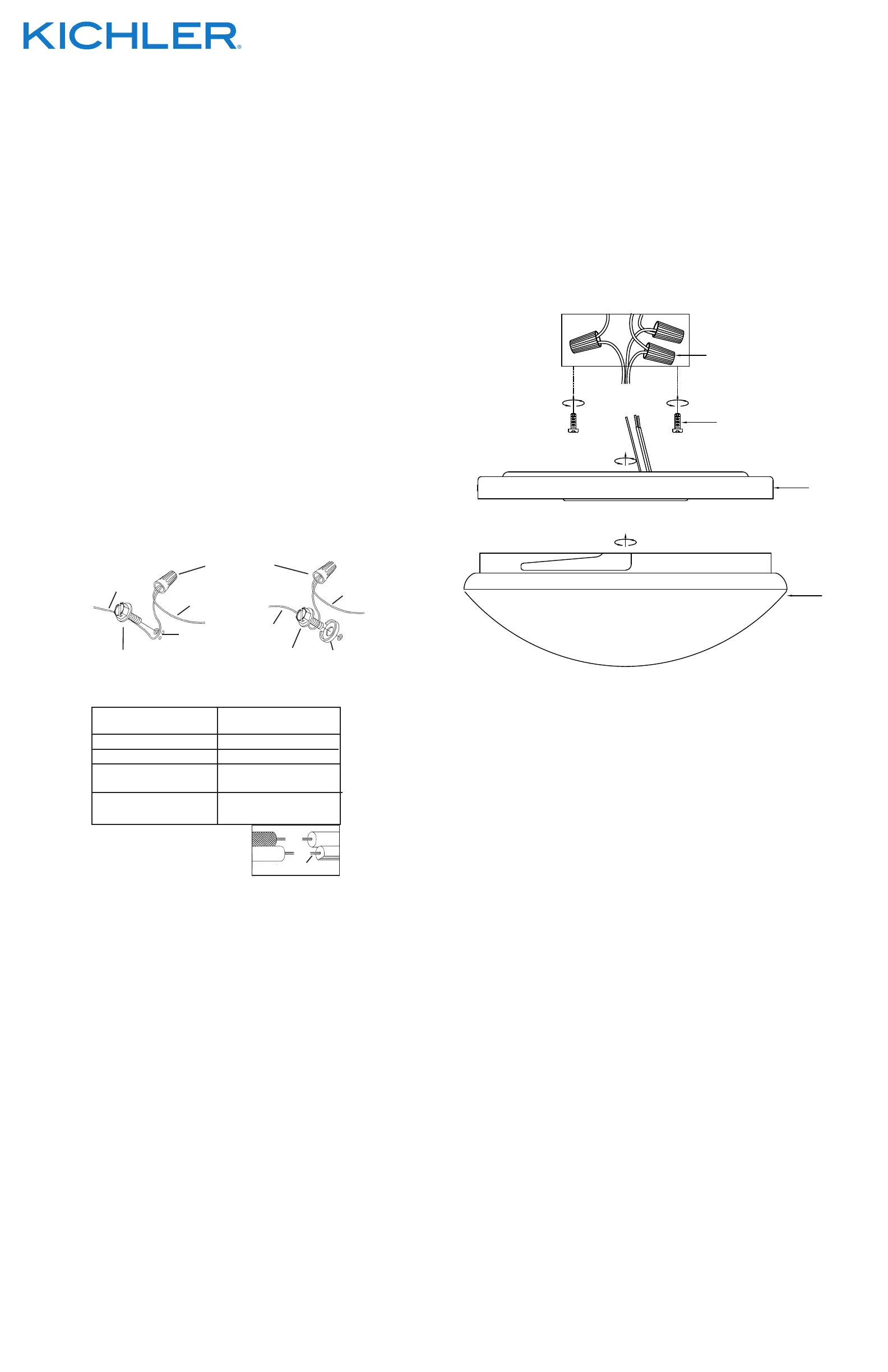

INSTALLATION INSTRUCTIONS

Model 10766LED / CP159837

Model 10767LED / CP159838

Model 10768LED / CP159839
