Side 1/4

P/N 10092676P1-01 Rev C • September 2012

The TouchPoint™ Lock is a pushbutton access control device that permits authorized entry into cabinets, drawers or other locking enclosures.

The TouchPoint Lock is easy to install on a variety of cabinets or enclosures and is intended for both indoor and outdoor applications.

The TouchPoint Lock can be ordered as a single component, or with optional mounting hardware including mounting brackets for sheet

metal or thick panels, 90° or 180° stop cams, a straight cam (1-1/8” length), or offset cam (1-5/8” length, 5/16” offset). The variations

depend on the type of cabinet or enclosure to which the lock is mounted.

TouchPoint™ Lock

Mounting Instructions

Tools Needed/Recommended:

• Drill

• Hole saw (For Top Mount Option)

• Router (For Flush Mount Options)

• File

• Philips screwdriver

• T15 Torx driver

• Pen or pencil

I. Mounting Options:

The TouchPoint Lock can be oriented vertically or horizontally to permit a wide range

of locking options.

The TouchPoint Lock has three mounting options: top mount, ush mount with a

sheet metal bracket, and ush mount with a thick panel bracket. In the top mount

option, the back face of the Lock housing is mounted on the front face of the cabi-

net or enclosure. In the two ush mount options, the front face of the Lock housing

is aligned ush with the front face of the cabinet or enclosure, secured by a bracket

inside a hole cut into the cabinet surface.

In each of these options, the lock is secured to the panel or bracket through the use

of thread rolling.

screws into bosses on the Lock housing. Any mounting scheme should be designed

so that the mounting fasteners cannot be removed or tampered with when the Lock

is mounted and the cabinet or enclosure is closed and locked.

#10-24 x 1/4” Cam Screw,

combination drive (1)

180° Stop

Washer

90° Stop

Washer

Straight

Cam

Offset

Cam

Available

Hardware

#10 Round at washer (1)

Standard Hardware Provided

II. Mounting Instructions

Option A - Top Mount

(For use on panels of 1/8” thickness or less)

1. If the cabinet has an existing lock, remove the existing lock cylinder. If the open-

ing is too small for the protrusion on the back of theTouchPoint lock, use a le to

round out the lock tail hole.

2. If the cabinet does not have an existing lock, use Template A to determine the

dimensions and hole locations.

4. Position the Lock over the holes and install the four body screws through the back

of the cabinet and into the Lock body. Do not exceed 15 in-lb. of torque.

Note: The screws are designed to cut threads into the Lock body as they are installed.

5. Proceed to Cam Installation (Section III).

Cabinet

Body Screw (4)

Top Mount - Side View

Lock Body

#6-32 x 5/16” Body Screw,

T15 torx drive (4)

Body Screw

(4)

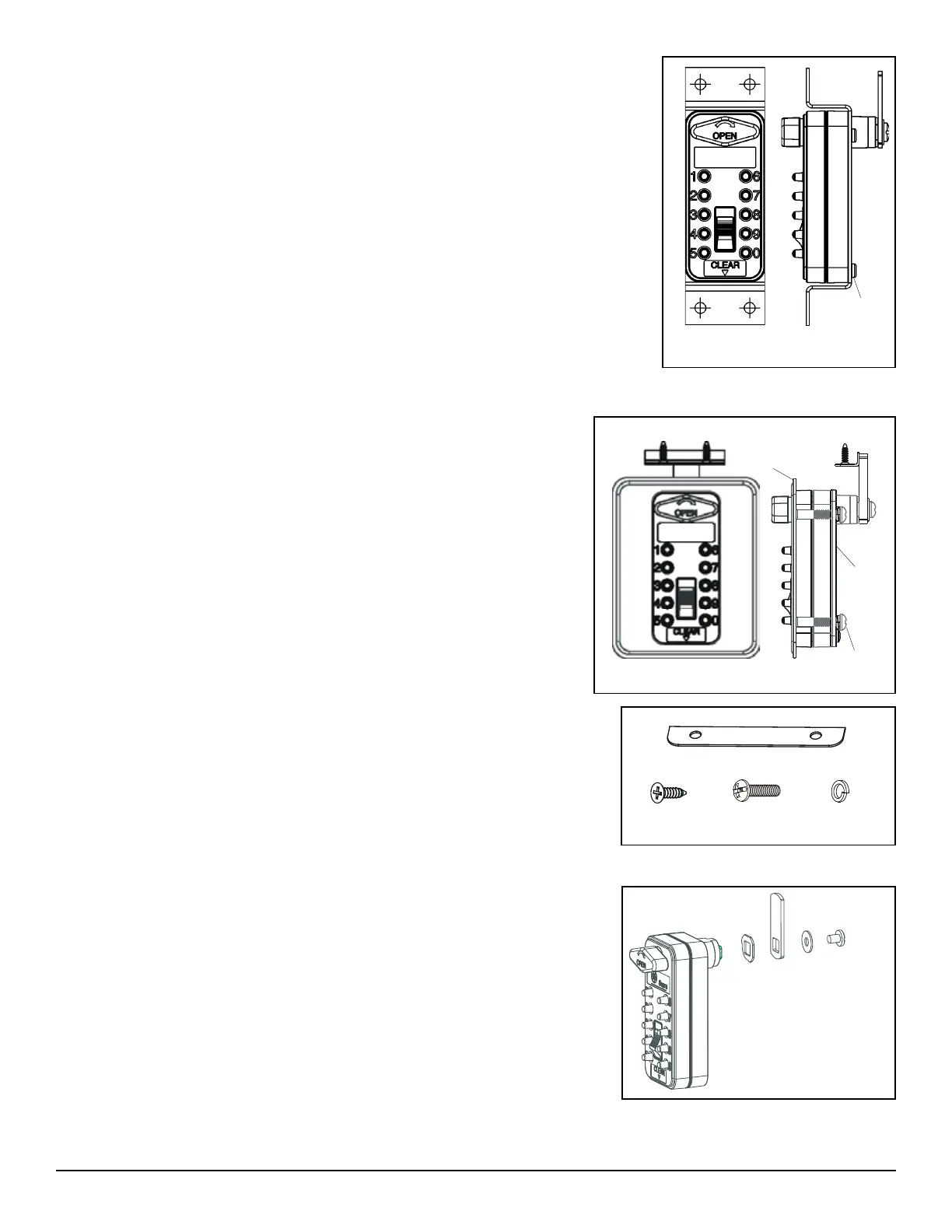

Option B - Flush Mount with Bracket, Sheet Metal Cabinet

Use Option B for the following models ONLY:

001764, 001765, 001766, 001767, 001768, 001773, 001786, 001787, 001788, 001789,

001790, 001798

Mounting the Lock using the ush mount option requires the use of a mounting bracket.

1. Use Template B to determine the dimensions and hole locations.

2. Position the Lock and mounting bracket in place and install the four #6-32 torx Body Screws

through the bracket into the Lock body and tighten. Do not exceed 15 in-lb. of torque.

Note: The screws are designed to cut threads into the Lock body as they are installed.

3. Attach the mounting bracket to the panel with your choice of fasteners through the four holes

at the outer corners of the bracket.

4. Proceed to Cam Installation (Section III).

Option C - Flush Mount with Bracket, Thick Panel

Use Option C for the following models ONLY:

001827, 001828, 001829, 001830, 001831, 001832, 001833, 001834

This mounting option is intended for panels of 3/4" (± 1/16") thickness and requires

the use of a thick panel bracket.

1. Use Template C to determine the dimensions and hole locations; make sure the

cam outline extends 1/4” beyond the door edge.

2. Cut the hole for the Lock and four corner holes using the template as a guide.

3. Mount the backplate to the Lock using the four body screws; torque should not

exceed 15 in-lbs.

4. Position the faceplate ush to the front of the cabinet, aligning the plate with the

four corner holes.

5. Insert the Lock with backplate into the large hole through the back side of the

cabinet. Check for any gaps between the backplate and cabinet. If a gap is present,

use the shims provided to ll the space between the backplate and cabinet.

6. Attach the backplate to the faceplate by installing the four Phillips screws and lock

washers into the four corner holes in the backplate and tightening.

7. To mount the strikeplate, measure 1.35" in from the cabinet face and cut a rectan-

gular hole. Drill two 1/16" pilot holes and mount with the two at phillips screws.

8. Proceed to Cam Installation (Section III).

III. Cam Installation

The Lock includes a camshaft which extends from the back of the Lock body and ends

in a 5/16" square protrusion, designed to mount and orient the cam arm. An optional

90° or 180° stop washer must be used between the cam arm and Lock body to limit

the rotation of the cam.

The stop washer, cam arm, and round washer are secured to the Lock using the 10-24

Cam Screw.

Shim - Optional (2)

Flat Phillips (2) 3/4” Phillips

(2-4)

Lock Washer

(2-4)

Round

Washer

Lock Body

Lock with Bracket

Strikeplate

Faceplate

Lock with Thick Panel Bracket

Backplate

Body

Screw

Stop Washer

Cam

Screw

Cam Arm
